Photogrammetry-Scale Bar Placement
9. OTHER FUNCTIONS

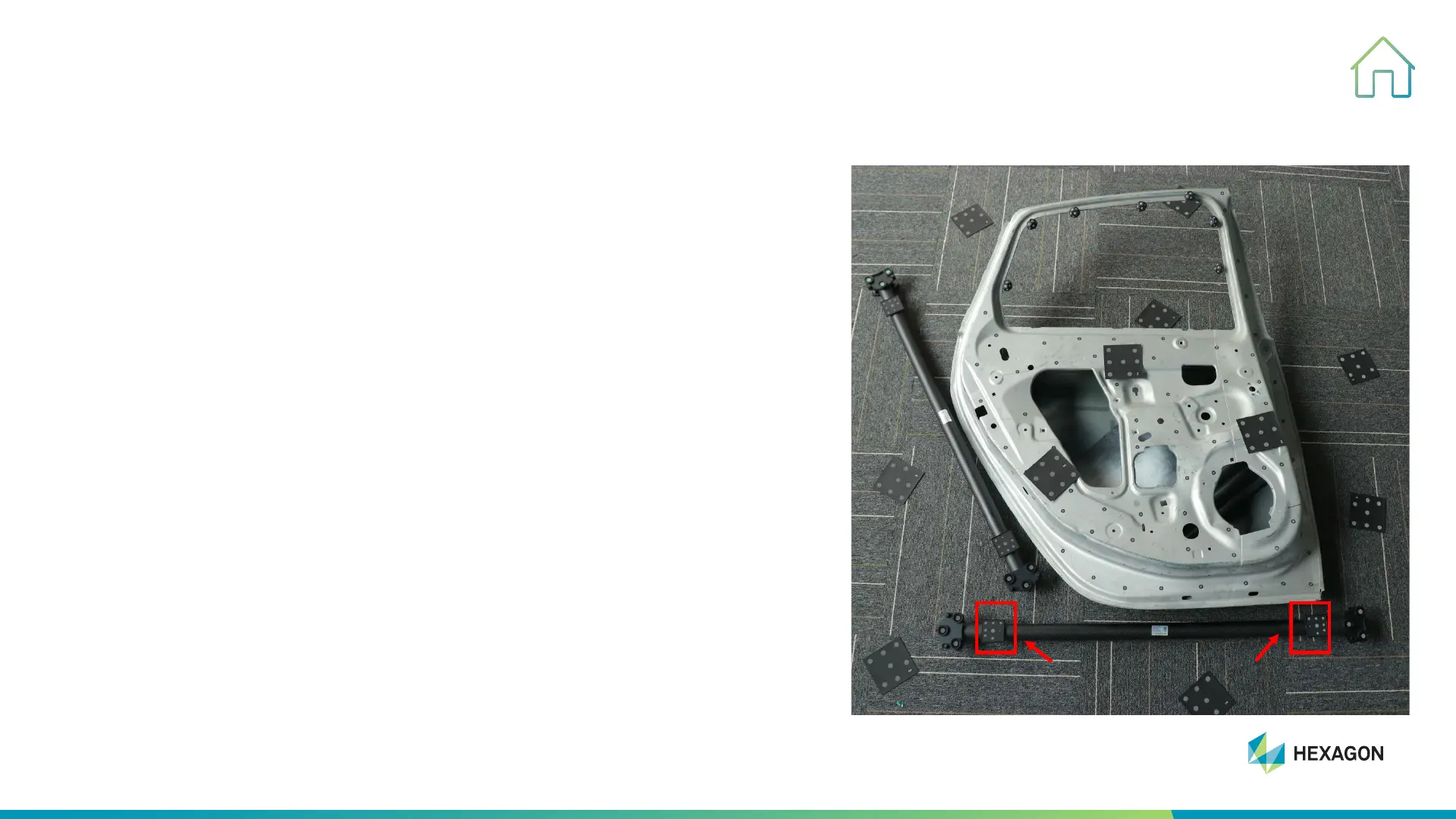

To better control the volumetric accuracy, the control bar
should be placed near the center of the scanning area and the
checking bar should be near the edge of the scanning area
The control bar and checking bar must be in the different
direction
The distance between coded target on the scale bar and
magnetic coded target should be more than 5cm
Coded target on scale bar
