Hexagon ROMER Absolute Arm - G.2 LEDs; G.3 Work Light and Camera (Absolute 75 Only)

Accessories
ROMER ABSOLUTE ARM Manual V2.3.1 (29/05/2012) 89
G
LEDS
G.2

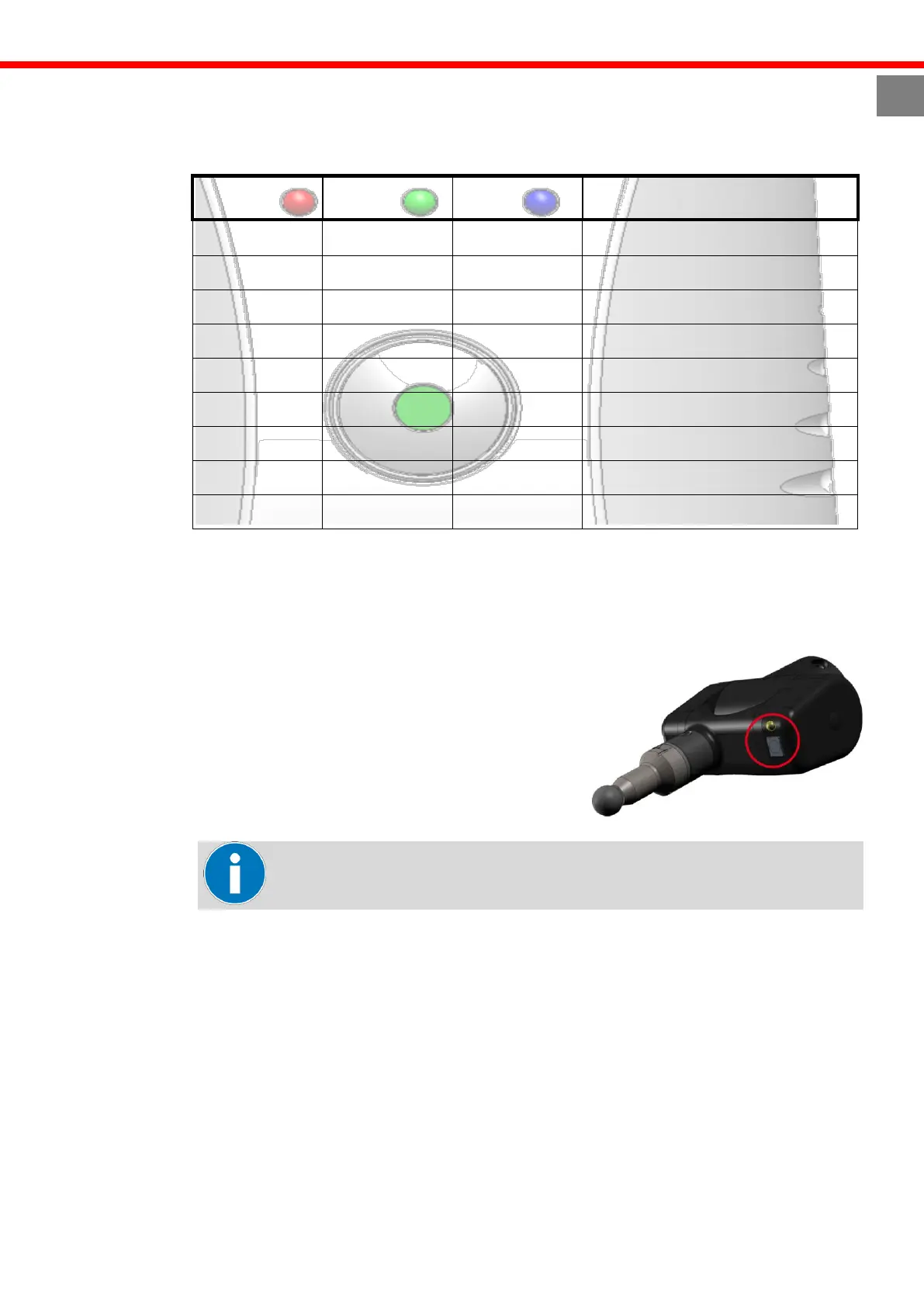

Table 3: LEDs
WORK LIGHT AND CAMERA (ABSOLUTE 75 ONLY) G.3
On 75 series, the arm contains a work light and a
camera integrated in the F axis.
The work light can be used to get clearer part to
measure.
The camera can be used either for compatible
software, either by windows as a standard USB
camera, either to catch picture for each taken point.
To use the work light or the camera, please refer to
RDS Service manual.
The camera works only in USB Mode, not in Wifi mode.
Red
Green
Blue
Description
ON
USB - Connected to PC
Slow blinking
Wifi powered on
ON
Wifi - associated
ON
Warning coming from PC
Slow blinking
Low power
Slow blinking
On battery
Fast blinking
Charging
No action
No action
No action
Fully charged
No action
No action
No action
AC power plugged
