Backplane Usage
 The maximum allowable blind-mate tolerance is ± 1.50 mm in the X-axis.
 The maximum allowable blind-mate tolerance is ± 1.00 mm in the Z-axis.
 The above tolerances are based on the X-Y plane being perpendicular to Y-Z plane.
See Figure 7 and Figure 8 for the industry-standard connector pin dimensions and references.

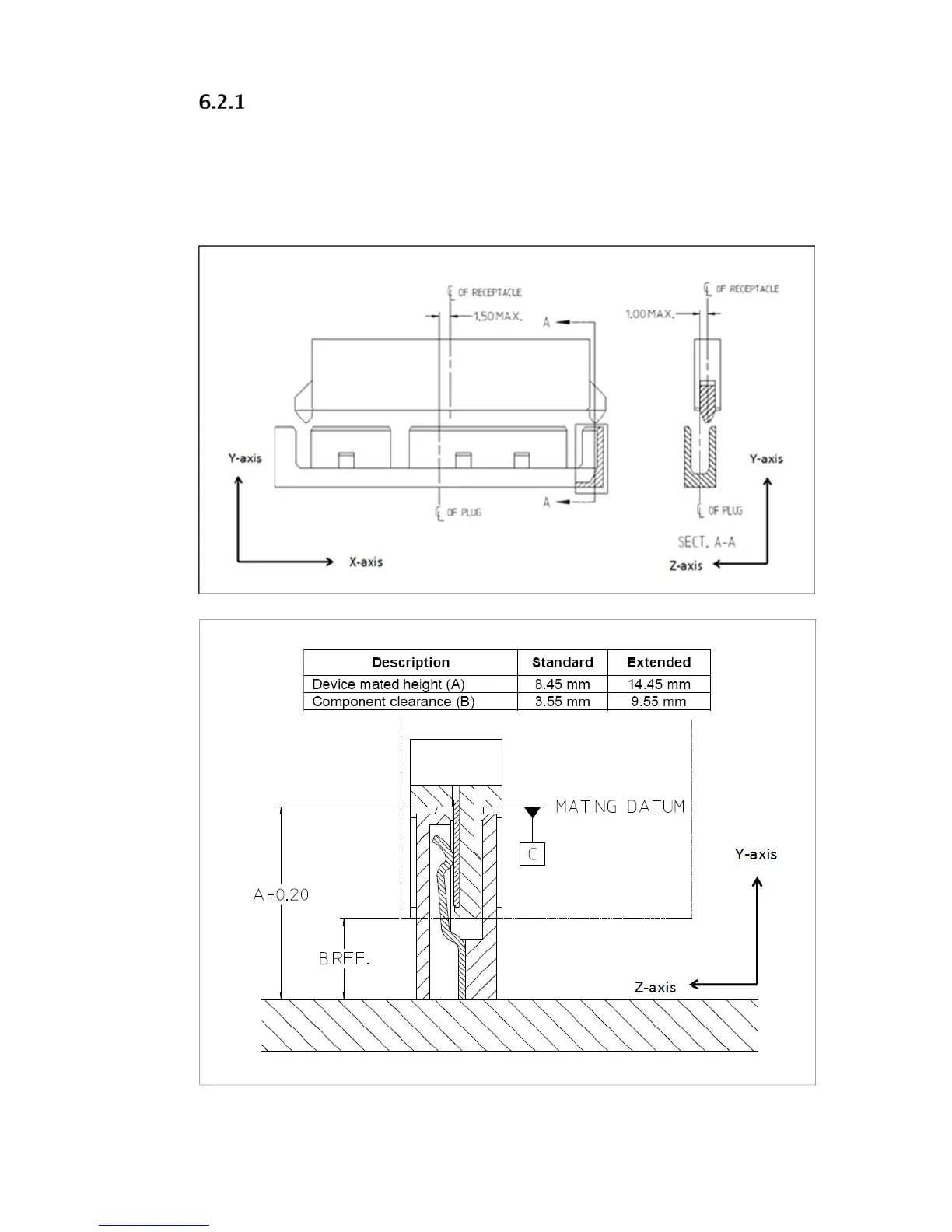

Figure 7 Connector Pair Blind Mate Misalignment Allowable
Figure 8 Device Backplane Connection
