Hi-Link HLK-WR02 User Manual

Shenzhen Hi-Link Electronic Co.,Ltd
http://www.hlktech.comTel:+86 0755-83575155 Fax+86 0755-83575189
21

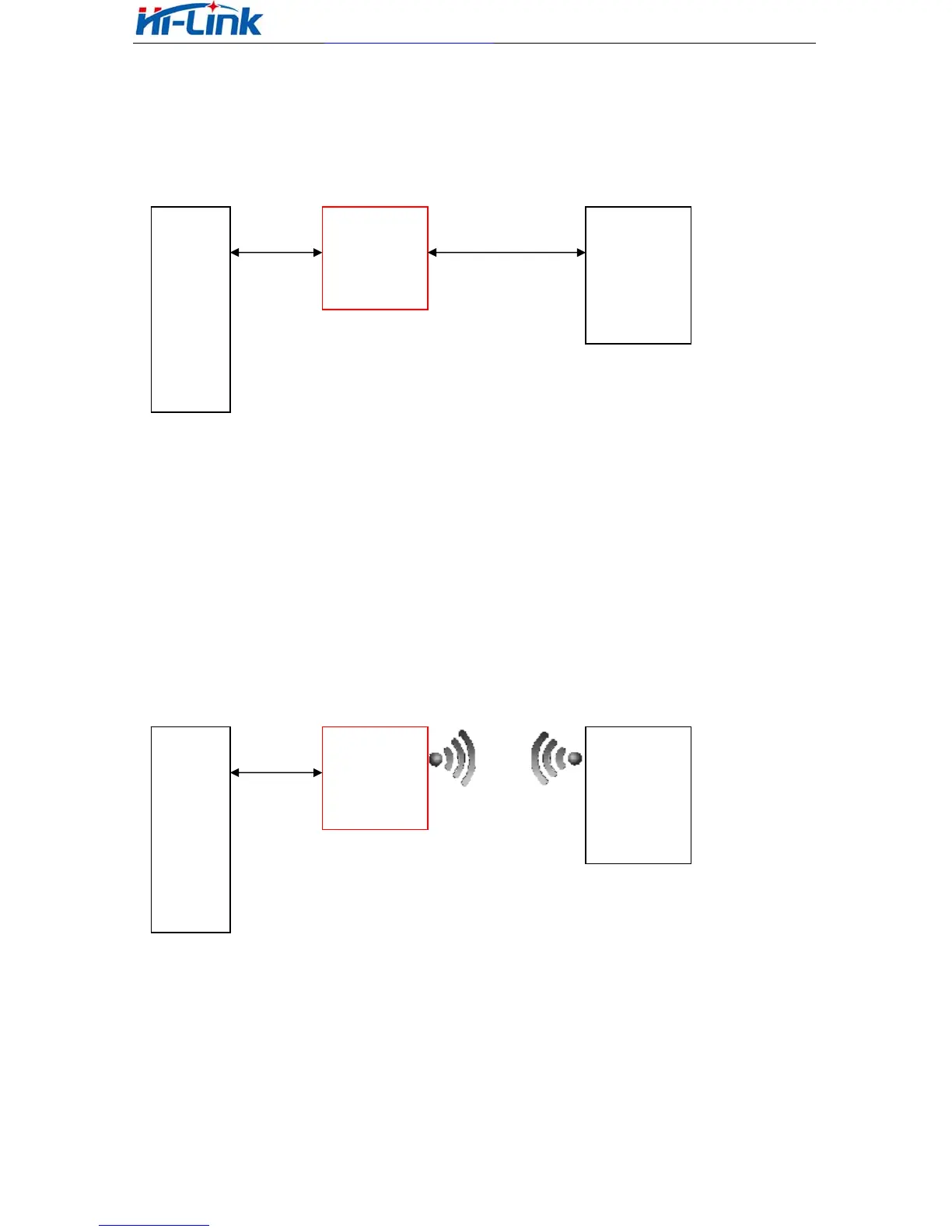

6.1 Serial to Ethernet
Fig6.1.serial to Ethernet model
(ETH1 works as WAN, ETH2 works as LAN.)
In this mode, ETH1 enable, WIFI, ETH2 function close. Through the appropriate
settings, the data between COM1 and ETH1 network can achieve mutual conversion.
Ethernet can be configured as dynamic IP address (DHCP), can also be configured
as static IP address (STATIC).
6.2 Serial to WIFI CLIENT
Fig6.2..Serial to WIFI CLIENT model
(ETH1 works as WAN, ETH2 works as LAN.)
In this mode, WIFI enable, module works in the client mode, ETH1, ETH2 function
close. Through the appropriate settings, the data between COM1 and WIFI network can
achieve mutual conversion.
DHCP IP
/STATIC IP
SERIAL
HLK-RM04 MCU WIFI AP
COM1
WIFI
Client
DHCP IP
/STATIC IP
ETHERNET SERIAL
HLK-RM04 MCU
SWITCH
/ROUTER
COM1
ETH1
