WIFI CLIENT can be configured as dynamic IP address (DHCP), can also be
configured as static IP address (STATIC).
WIFI safety: support all encryption methods at present.
6.3 Serial to WIFI AP

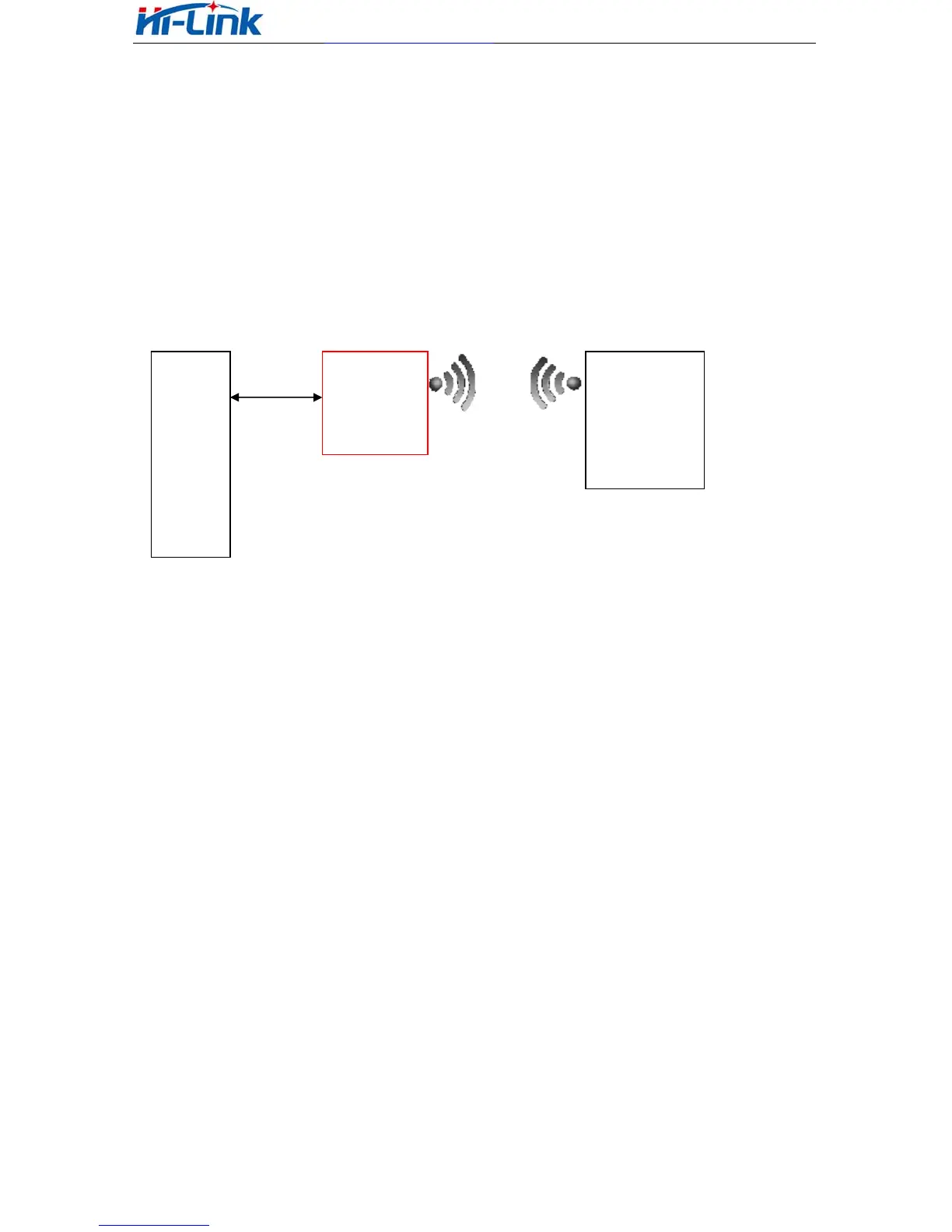

Fig6.3.. Serial to WIFI AP model
(ETH1 works as WAN, ETH2 works as LAN.)
In this mode, WIFI enable, module works in the AP mode, ETH1, ETH2 function
close. Through the appropriate settings, the data between COM1 and WIFI network can
achieve mutual conversion.
WIFI safety: support all encryption methods at present.
In this mode, WIFI device can connect with the module and become the device
under WIFI LAN.
DHCP ENABLE
SERIAL
HLK-RM04 MCU
WIFI CLIENT
(PHONEćpad)
COM1
WIFI
AP
