HIAB 190TM - 4-3. Lifting Capacity Table & Working Radius

32

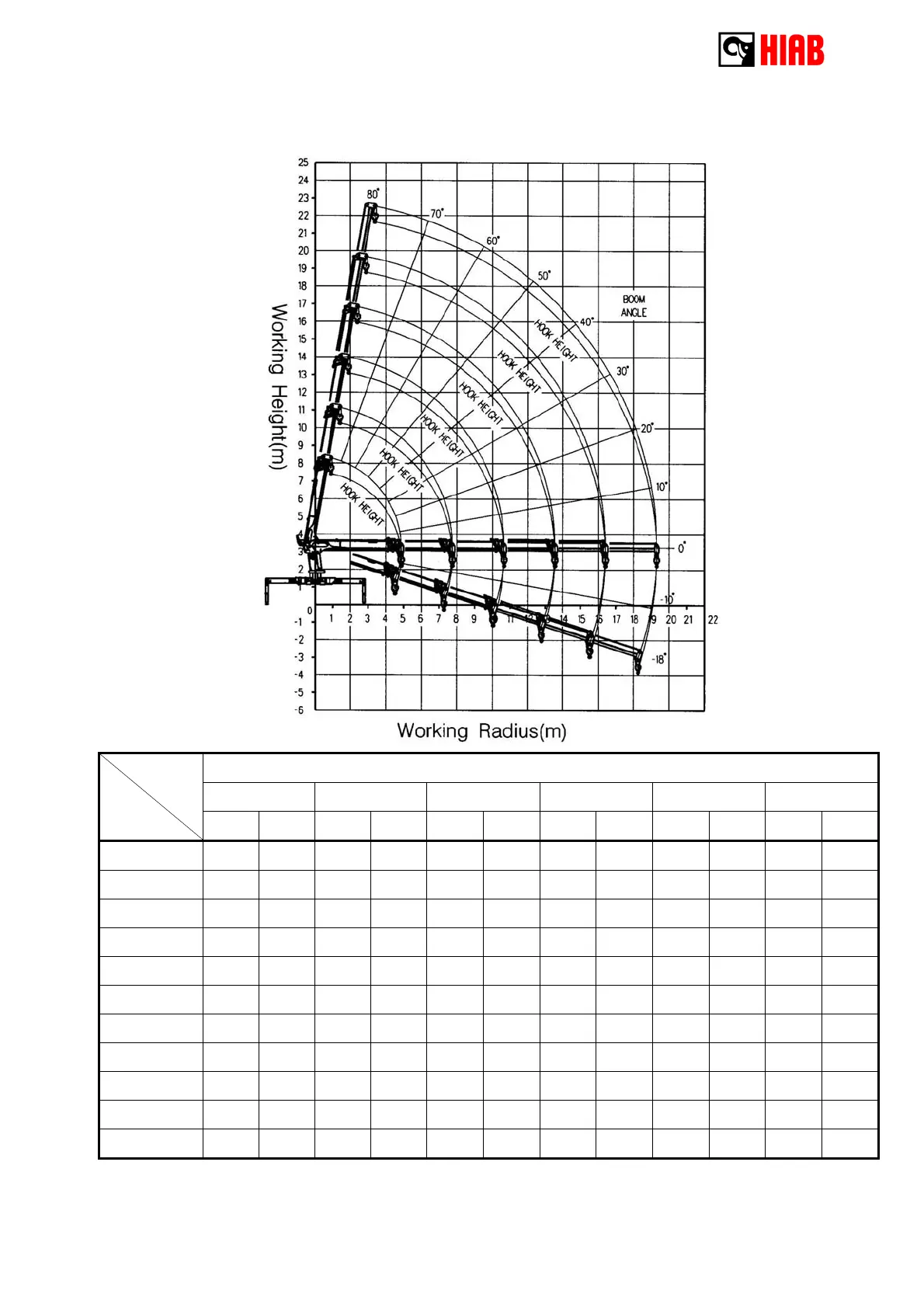

4 - 3 Lifting capacity table & working radius
boom
angle
BOOM (m)
1
st
boom 2
nd
boom 3
rd
boom 4
th
boom 5
th
boom 6
th
boom
R(m) Q(kg) R(m) Q(kg) R(m) Q(kg) R(m) Q(kg) R(m) Q(kg R(m) Q(kg)
80˚
0.75
8,000
1.25 6,800 1.75 4,500 2.25 2,400 2.76 1,800 3.26 920
70˚
1.62 8,000 2.61 5,000 3.60 3,560 4.58 2,400 5.57 1,800 6.56 920
60˚
2.44 6,320 3.48 3,630 5.33 2,550 6.77 1,940 8.22 1,540 9.66 920
50˚
3.17 5,250 5.03 2,950 6.89 2,050 8.75 1,540 10.60 1,210 12.46 920
40˚
3.81 4,610 6.02 2,540 8.24 1,750 10.45 1,300 12.67 1,010 14.88 810
30˚
4.33 4,170 6.83 2,260 9.33
1,540
11.84 1,140 14.34 880 16.84 700
20˚
4.71 3,840 7.42 2,050 10.14 1,390 12.86 1,010 15.57 770 18.28 610
10˚
4.94 3,500 7.79 1,850 10.63 1,240 13.48 900 16.33 680 19.17 520
0˚
5.02 3,170 7.91 1,650 10.80 1,100 13.69 780 16.58 580 19.47 440
-10˚
4.94 2,780 7.78 1,400 10.63 910 13.48 640 16.32 460 19.17 340
-18˚
4.76 2,370 7.51 1,140 10.26 720 13.01 490 15.76 340 18.51 230
