VertX V100 (CS) Quick Installation Guide

August 2005 Page 4 of 9

Terminating

Jumper

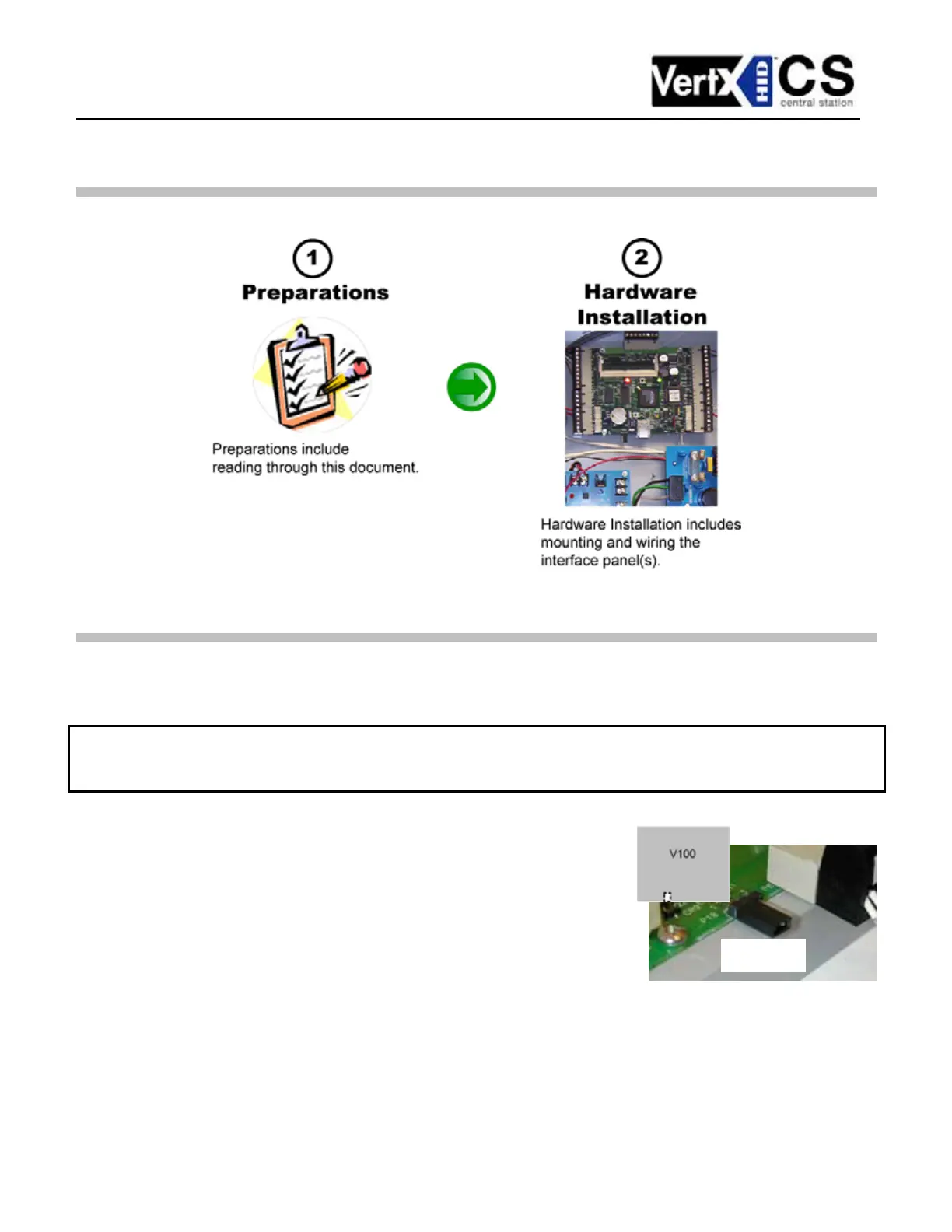

Overview

The following outlines what is required to install the V100 Door/Reader Interface panel.

Step 1 Preparations

1.1 What you need before getting started

Prior to starting the installation, please completely read through this guide.

CAUTION: The V100 is sensitive to Electrostatic Discharges (ESD). Observe precautions while

handling the circuit board assembly by using proper grounding straps and handling precautions at

all times.

1.2 V100

1. If the V100 will be attached to the end of the RS-485 bus, install a

terminating jumper on the termination resistor pins P8 on the cover

(P10 on the PCB) of the V100.

2. If the V100 is being installed as part of an array, or in a third party

enclosure, follow the directions provided by the Integrator or Dealer.
