August 2005 Page 5 of 23

VertX V2000 (CS) Quick Installation Guide

Step 1 Preparations

1.1 What you need before getting started

Prior to starting the installation, please completely read this guide.

CAUTION: The V2000 is sensitive to Electrostatic Discharges (ESD). Observe precautions while handling the

circuit board assembly by using proper grounding straps and handling precautions at all times.

1.2 V2000

1. Remove the plastic or Mylar cover.

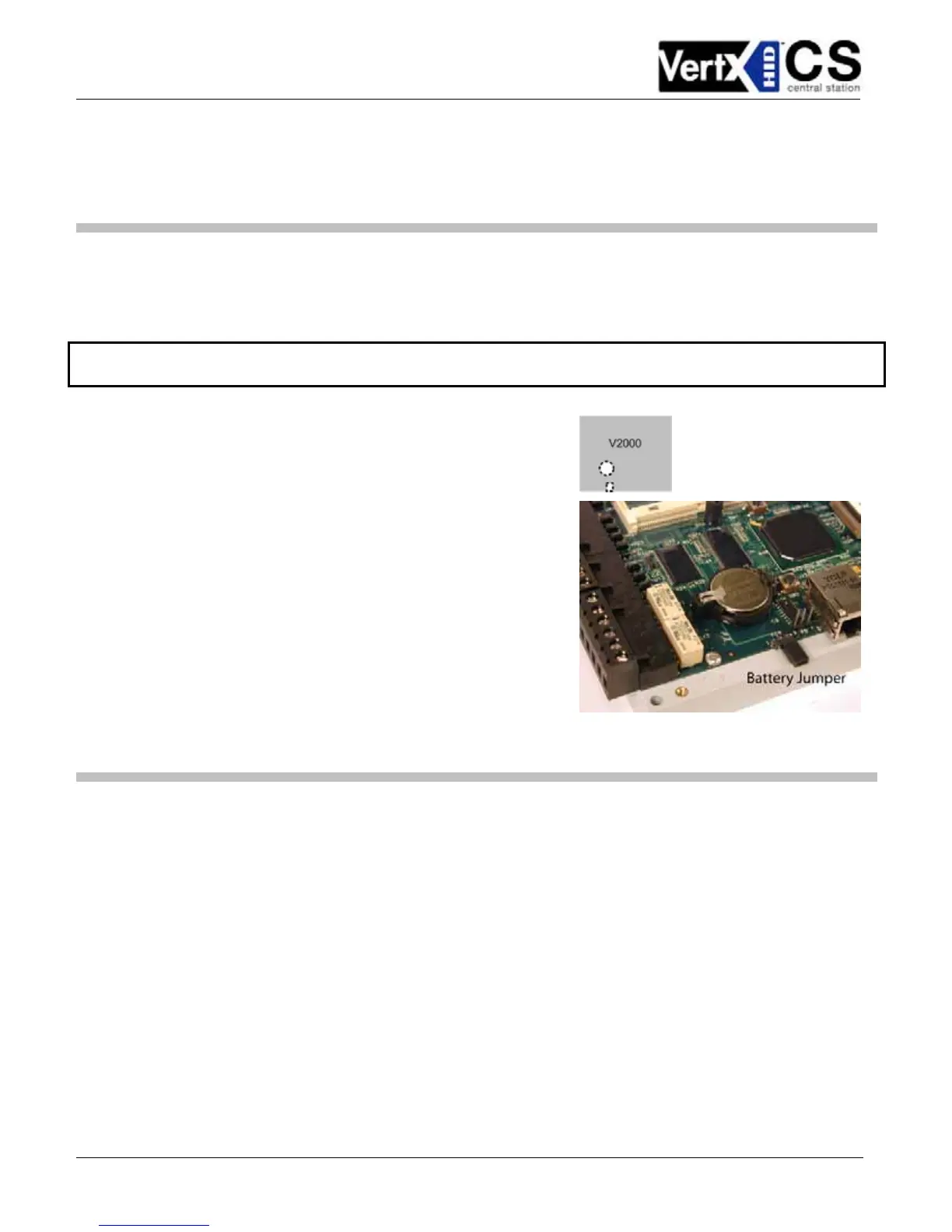

2. Verify the battery is installed. If the battery is not

installed, complete these steps:

a. Remove the button cell battery from the accessory kit.

b. Install the button cell battery (+ side up) in the battery

holder, BT1.

c. Verify that the battery jumper is in the ON position (or

OUT position on old covers), P10 (V2000), pins 2-3.

d. Replace the plastic or Mylar cover.

Step 2 Hardware Installation

2.1 Mounting Instructions

1. The V2000 should always be mounted in a secure area.

2. Mount the V2000 using the four mounting screws (provided) or other appropriate fasteners.

Place the fasteners in the corner holes of the base.

3. The V2000 can be stacked with or without the cover. Do not remove the plastic base. Make

sure you position the V2000 in such a way as to provide room for wiring, air flow and cable

runs.
