Hidea HDF6 - Page 132

POWR
Power unit

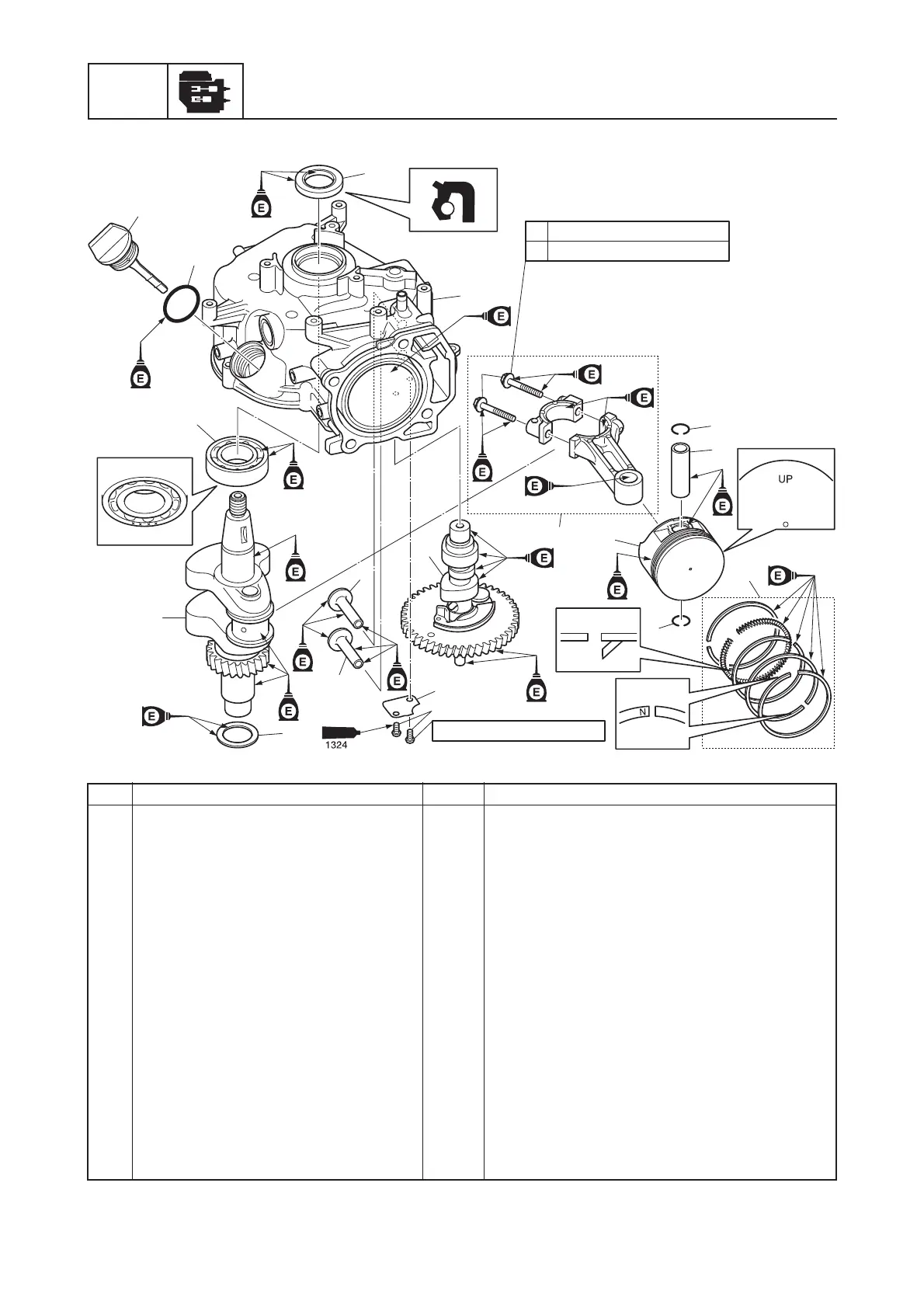

Cylinder block
No. Part name Q’ty Remarks
1 Oil seal 1
/PUSFVTBCMF
2 Cylinder block 1
3 Connecting rod assembly 1
4 Connecting rod bolt 2
5 Clip 2
6 Piston pin 1
7 Piston 1
8 Piston ring set 1
9 Plate 1
10 Breather plate screw 2
11 Valve lifter 2
12 Camshaft 1
13 Crankshaft 1
14 Washer 1
15 Ball bearing 1
16 O-ring 1
/PUSFVTBCMF
/PUSFVTBCMF
17 Dipstick 1
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
a
b
6 N·m (0.6 kgf·m, 4.4 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
16
17
8 N·m (0.8 kgf·m, 5.9 ft·lb)
/PUSFVTBCMF
