Hidea HDF6 - Page 167

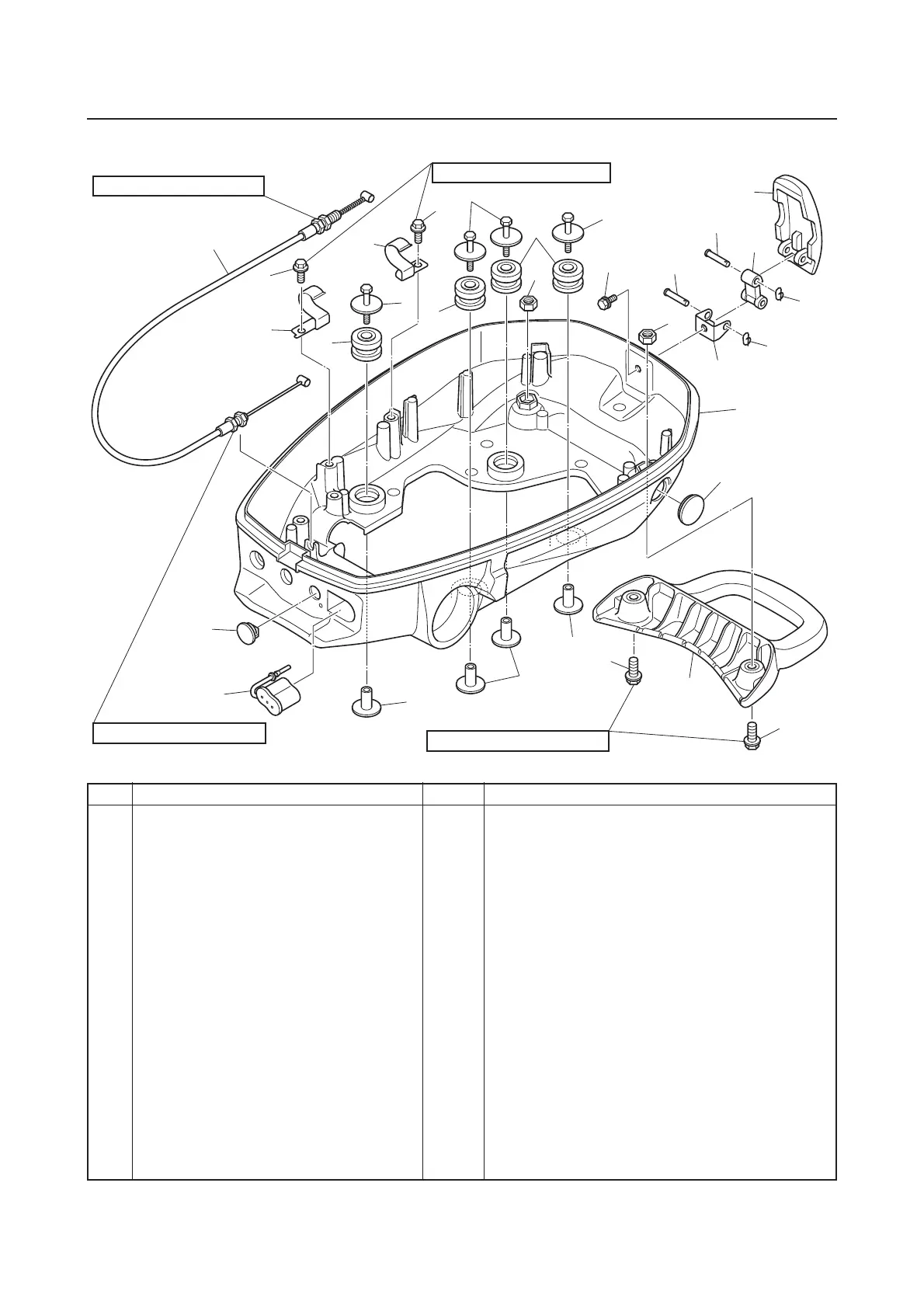

Bottom cowling
Bottom cowling
No. Part name Q’ty Remarks
1 Start-in-gear protection cable 1
2 Primer pump holder bolt 2
3 Holder 1
4 Holder 1
5Bolt 4
6 Grommet 4
7Nut 2
8Bolt 1
9 Pin 2
10 Cowling lock lever 1
11 Bracket 1
12 Clip 2
13 Bracket 1
14 Bottom cowling 1
15 Grommet 1
16 Carrying handle bolt 2
17 Carrying handle 1
2
2
3
4
20
19
18
6
6
6
5
5
5
8
15
9
9
13
11
10
12
14
17
7
7
16
16
1
18
18
2 N·m (0.2 kgf·m, 1.5 ft·lb)
11 N·m (1.1 kgf·m, 8.1 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
19 N·m (1.9 kgf·m, 14.0 ft·lb)
12
