Hidea HDF6 - Page 168

BRKT

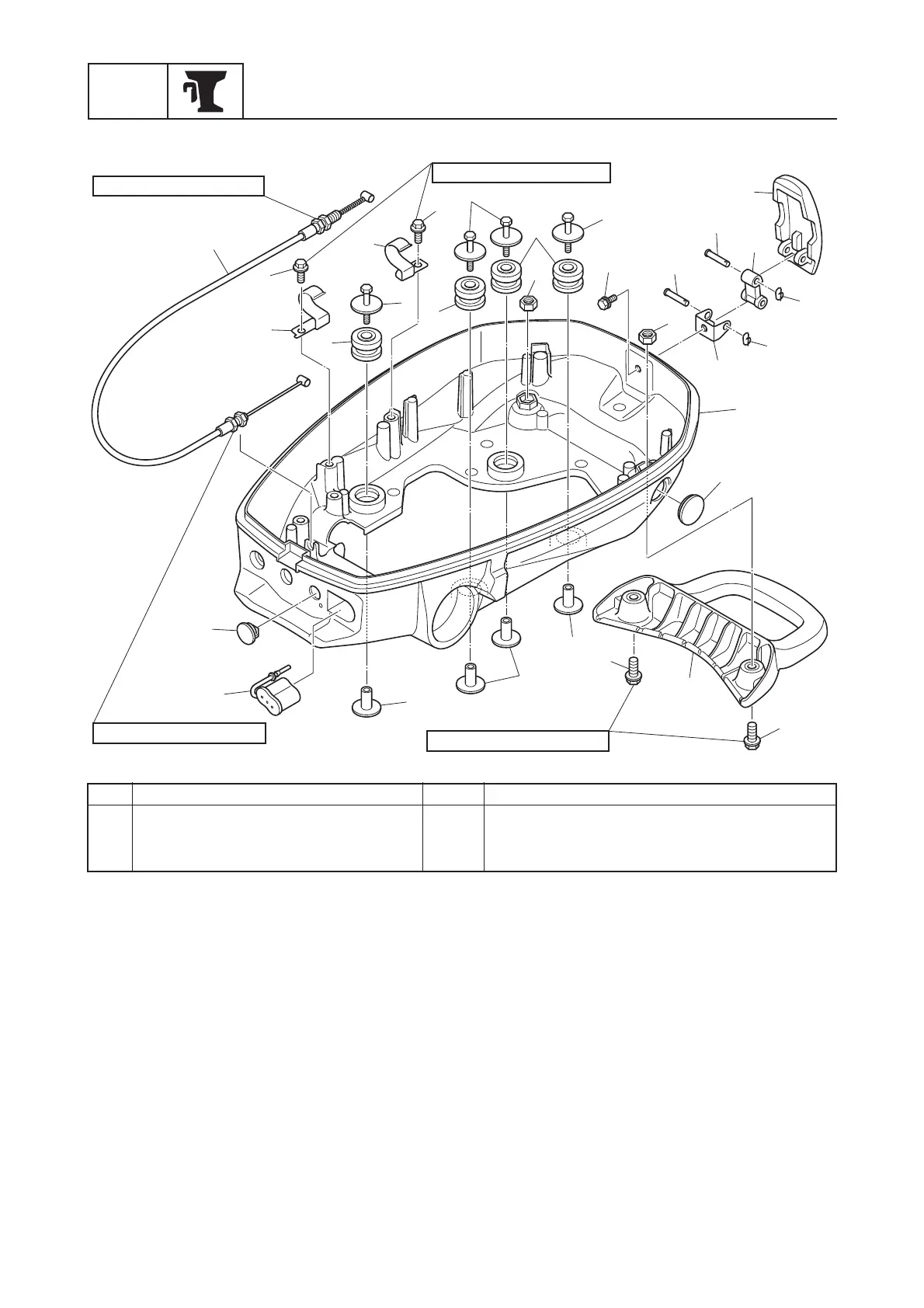

Bracket unit
No. Part name Q’ty Remarks
18 Collar 4
19 Cap 1
20 Grommet 1
2
2
3
4
20
19
18
6
6
6
5
5
5
8
15
9
9
13
11
10
12
14
17
7
7
16
16
1
18
18
2 N·m (0.2 kgf·m, 1.5 ft·lb)
11 N·m (1.1 kgf·m, 8.1 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
19 N·m (1.9 kgf·m, 14.0 ft·lb)
12
168
