Bracket unit

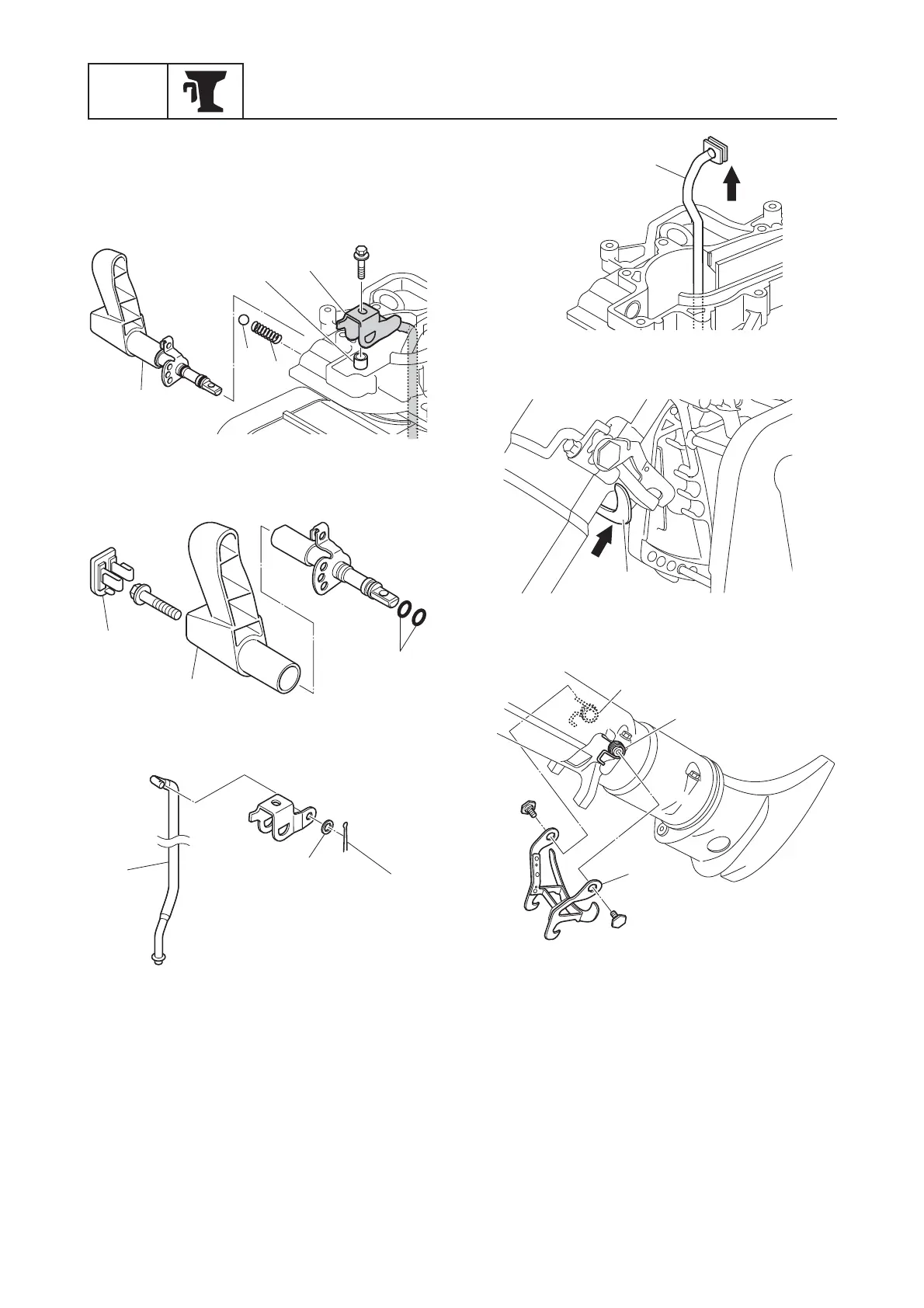

Removing the shift lever
1. Remove the shift lever a, collar b, and
bracket c.
2. Remove the ball d and spring e.
3. Remove the cap f, shift lever a, and O-
rings g.
4. Remove the cotter pin h, washer i, and
shift rod j.
Removing the upper case
1. Remove the water pipe a.
2. Move the plate a up, and then tilt the
outboard motor up.
3. Remove the reverse lock b and springs
c and d.
4. Remove the upper case e.
