Electrical system

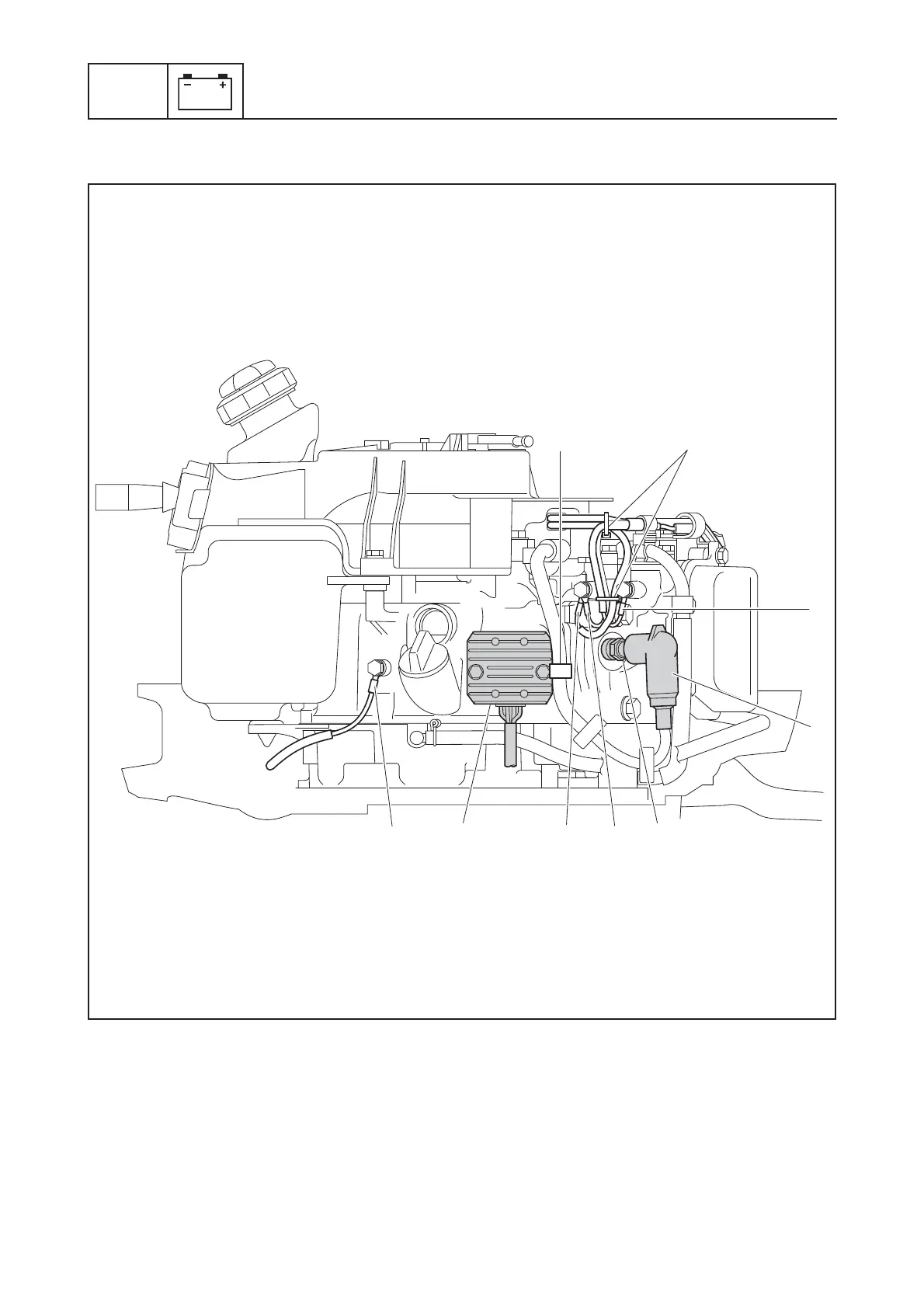

Electrical component and wiring harness routing
Port
aEngine shut-off switch lead (Black)
bSpark plug cap
cSpark plug
dGround lead (Black)
eCDI unit lead (Black)
fRectifier Regulator
A Install the holder horizontally, and then
fasten the spark plug wire using the
holder.
B Point the end of plastic tie inward (engine
side), and then cut the end.
b
c
f
A
B
a
d
e
d
60
To Next Page
