FUEL

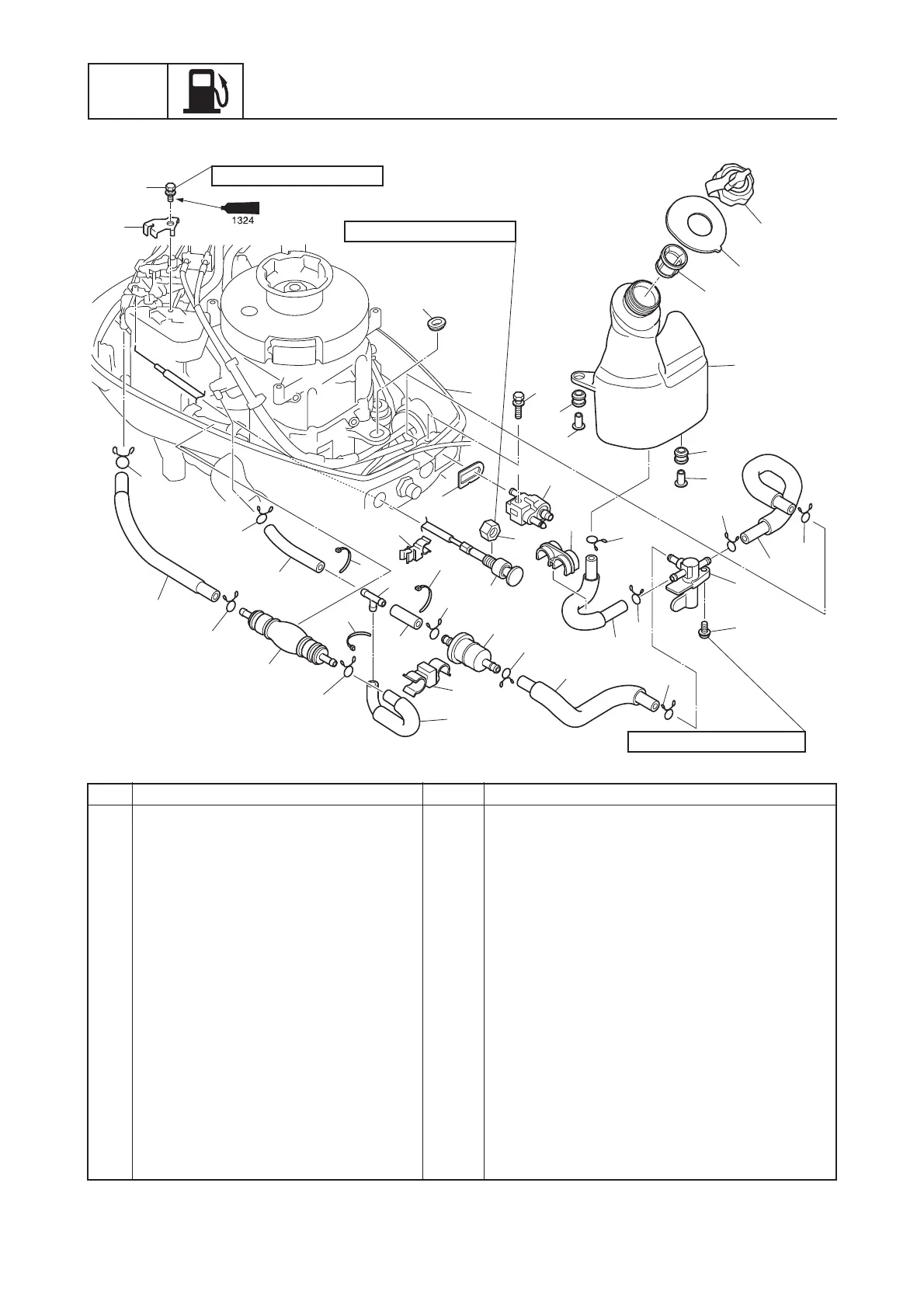

Fuel system
Fuel tank
No. Part name Q’ty Remarks
1 Choke holder bolt 1
2 Holder 1
3 Grommet 1
4Fuel cap 1
5 Rubber seal 1
6 Fuel strainer 1
7 Fuel tank 1
8Bolt 1
9 Grommet 2
10 Collar 2
11 Clamp 11
12 Hose 1
13 Fuel cock 1
14 Fuel cock screw 1
15 Hose 1
16 Holder 1
17 Fuel joint 1
11
31
11
29
30
28
27
27
26
11
27
22
21
18
8
3
17
16
11
15
11
20
11
23
11
11
11
25
24
13
12
11
9
10
9
7
10
11
14
6
4
5
1
2
19
4 N·m (0.4 kgf·m, 3.0 ft·lb)
7 N·m (0.7 kgf·m, 5.2 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
