Hidea HDF6 - Page 71

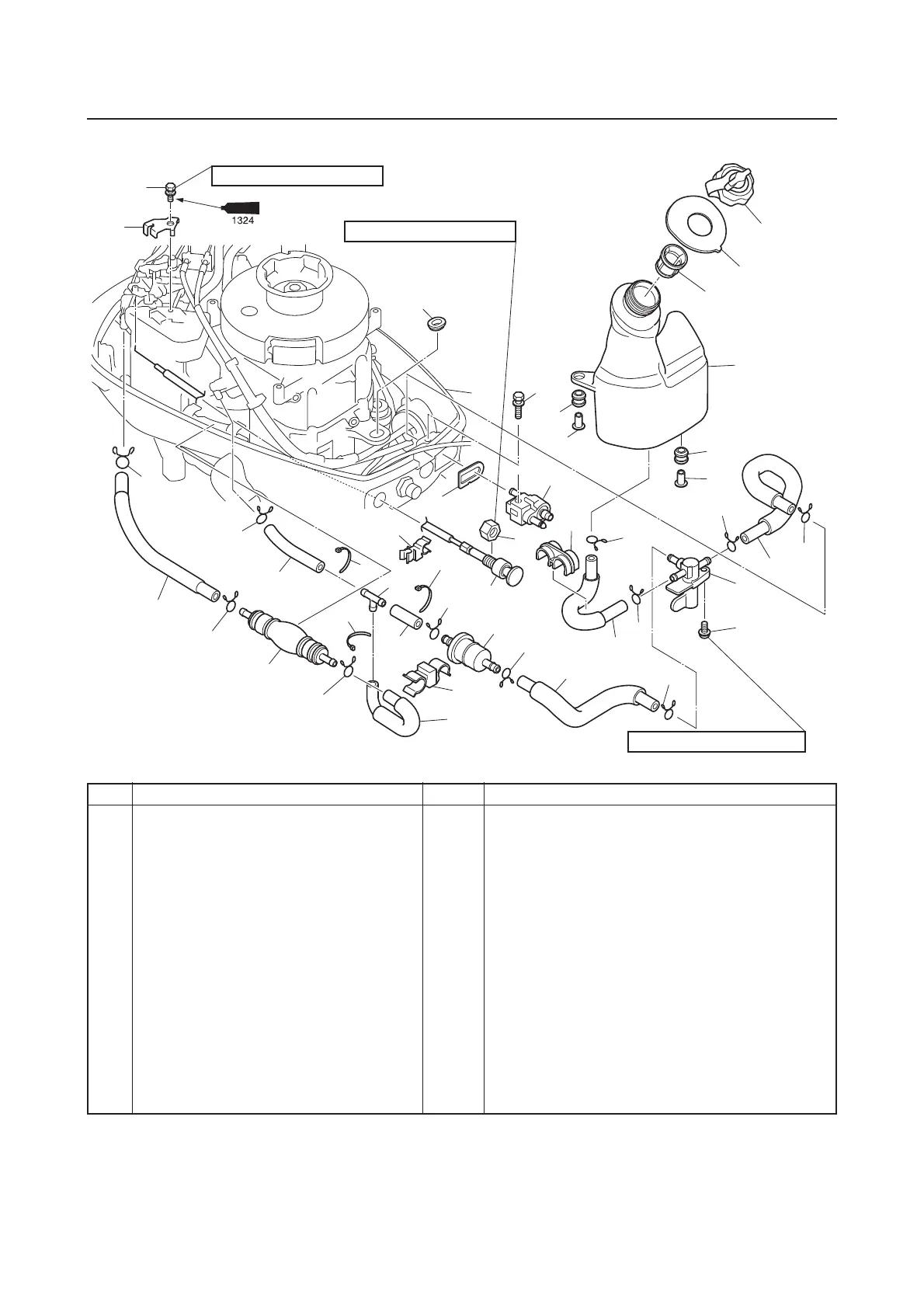

Fuel tank
No. Part name Q’ty Remarks
18 Rubber seal 1
19 Choke cable nut 1
20 Holder 1
21 Choke cable 1
22 Fuel strainer 1
23 Hose 1
24 Hose 1
25 Holder 1
26 Hose 1
27 Plastic tie 3
/PUSFVTBCMF
28 Joint 1
29 Primer pump 1
30 Hose 1
31 Hose 1
11
31
11
29
30
28
27
27
26
11
27
22
21
18
8
3
17
16
11
15
11
20
11
23
11
11
11
25
24
13
12
11
9
10
9
7
10
11
14
6
4
5
1
2
19
4 N·m (0.4 kgf·m, 3.0 ft·lb)
7 N·m (0.7 kgf·m, 5.2 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
