MTEC.4680.GB-B-1 Operation and maintenance manual GH serie English
GH Dehumidifiers for radiant cooling system
When unloading the unit, it is strongly recommended that sudden movements are avoided in order to protect the refrigerant circuit, copper
tubes or any other unit component. Units can be lifted by using a forklift or, alternatively, using belts. Take care that the method of lifting does
not damage the side panels or the cover. It is important to keep the unit horizontal at all time to avoid damage to the internal components.

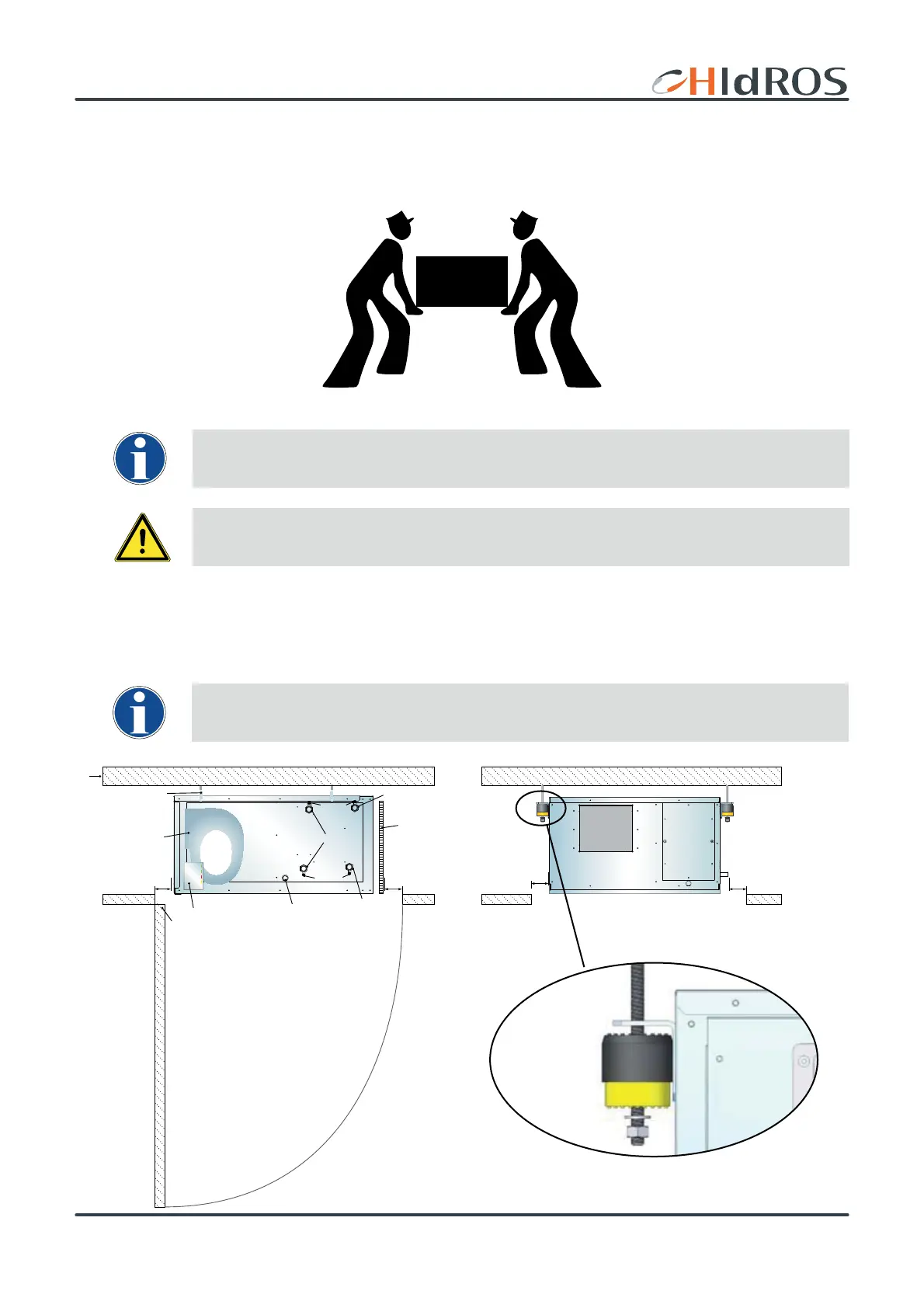

In the below drawing, the typical ceiling installation is shown (typical for residential buildings, offices etc.) where the unit is hanging thanks
to the help of 4 brackets supplied standard. The brackets must be connected to the vibration dampers which have to be chosen according
to the kind of structure they will be fixed to. It’s advisable to cover the inside of the false ceiling with high density bitume layer and to foresee
one or more openings to have the possibility to clean the air filters, to control the refrigerant circuit and to check the electrical board.
Legend:
a. > 10 cm
1. Ceiling
2. Vibration damper
3. Control board
4. Fan
5. Water connections
6. Condensate discharge
7. Suction filter
8. False ceiling
9. Vent valve
4.7 Lifting and handling
4.8 Location and minimum technical clearances
The unit has to be installed such that maintenance and repair is possible. The warranty does not cover costs for the
provision of lifting apparatus, platforms or other lifting systems required to perform repairs during warranty period.
Where it’s possible, it’s also advisable to foresee an opening in the ceiling to be able to dismantle the dehumidifier
in case of particular maintenance.
The installation site should be chosen in accordance with EN 378-1 and 378-3 standards. When choosing the
installation site, all risks caused by accidental refrigerant leakage should be taken into consideration.
Right positioning of anti-vibration dumper (kit not supplied).
