MTEC.4680.GB-B-1 Operation and maintenance manual GH serie English
GH Dehumidifiers for radiant cooling system
4.12 Ductwork unit connection
All the units are provided of ductable centrifugal fans. In case of ducts, please use a flange with overall dimensions larger than the suction
opening on the front on the unit (refer to the dimensional drawing of the unit).

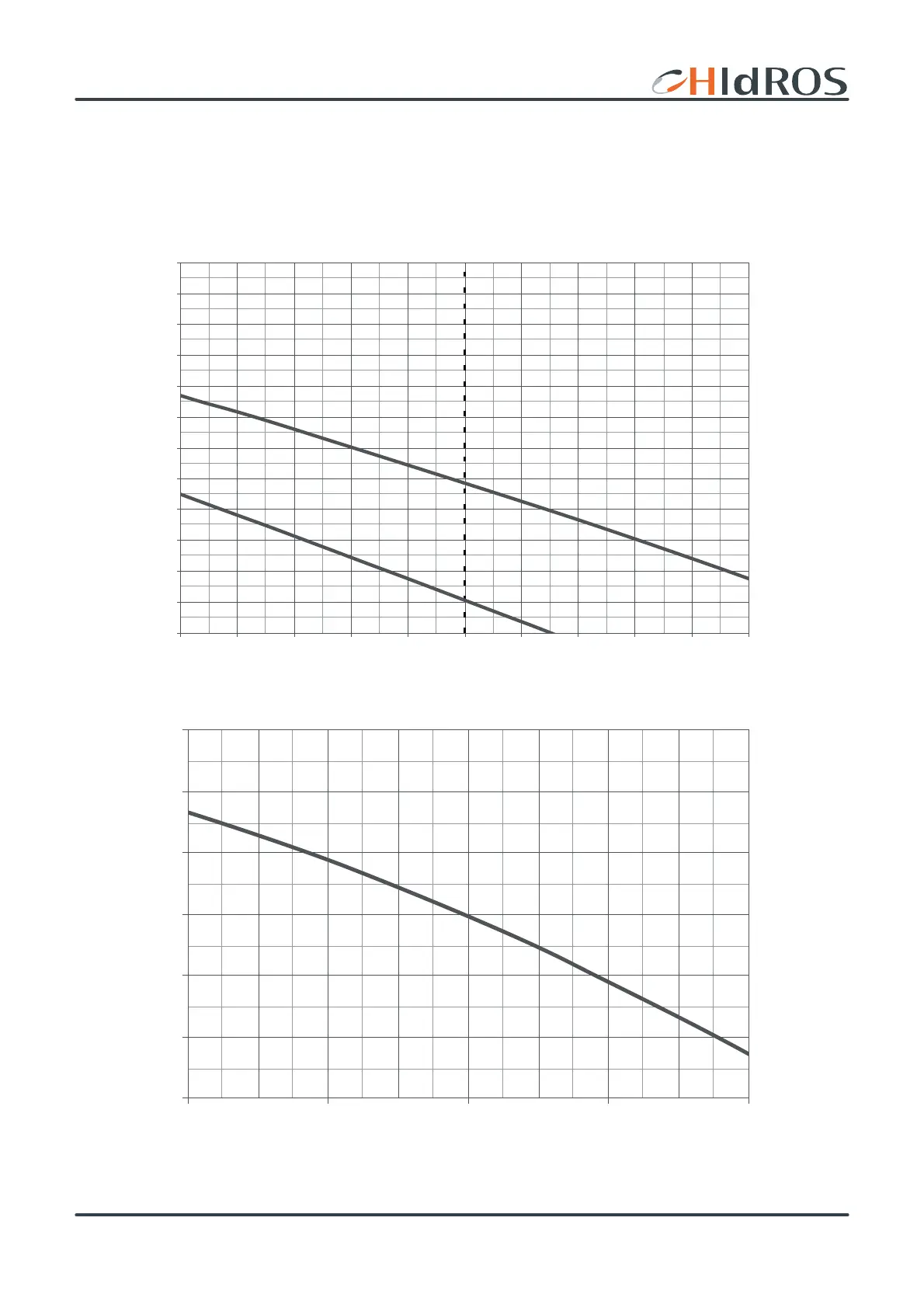

Static pressure (Pa) Static pressure (Pa)
Air flow (m
3
/h)
Air flow (m
3
/h)
