MTEC.4680.GB-B-1 Operation and maintenance manual GH serie English
GH Dehumidifiers for radiant cooling system
4.15 Filter extraction

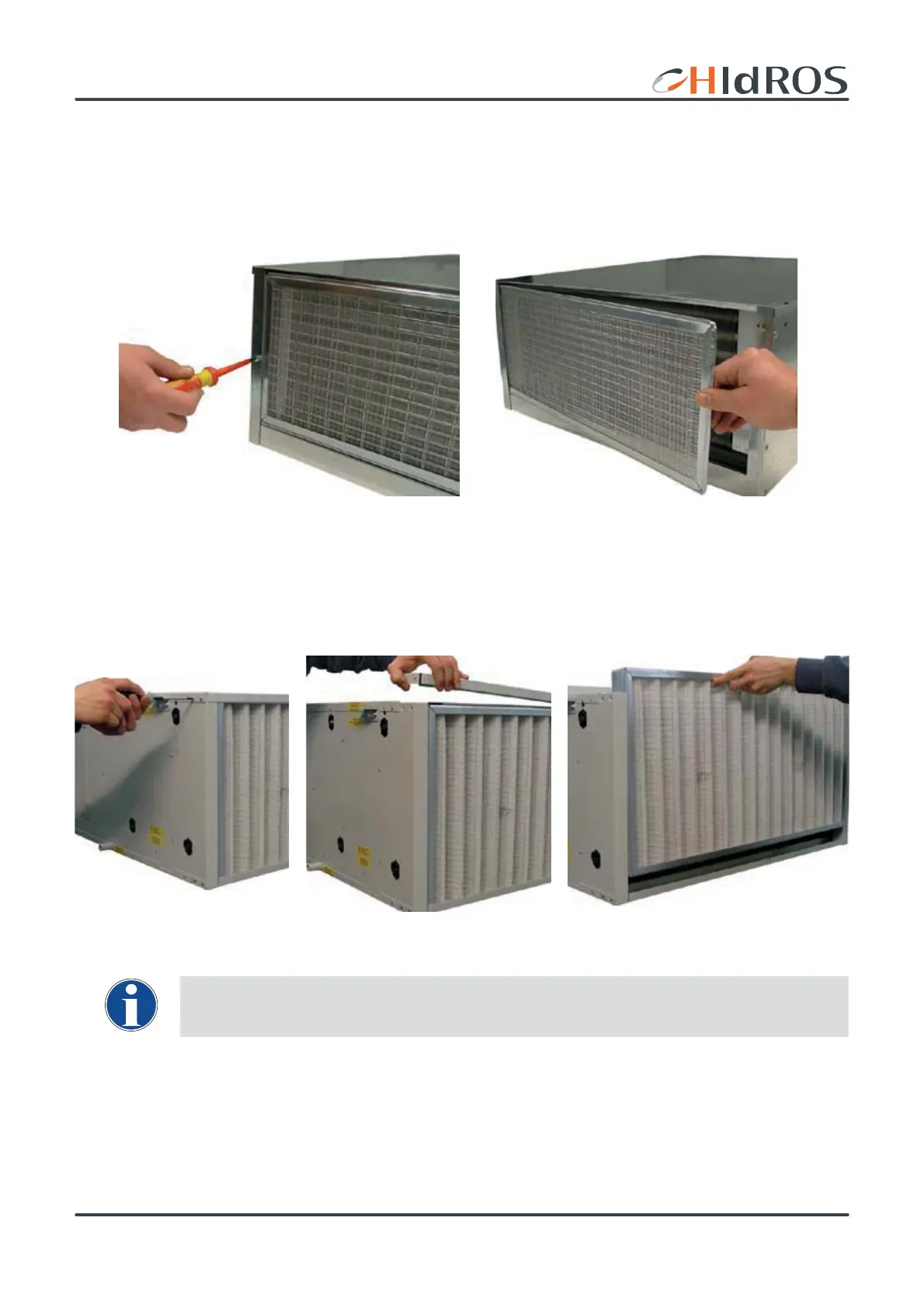

The filter extraction of a dehumidifier GH 50 is made unscrewing the two screws which fix it to the frame, as shown in the following images,
for the GH100-200, please, follow the below procedure:
1. Unscrew the screws of the bracket which block the filter (both sides)
2. Remove the bracket which block the filter (as shown in the below image)
3. Lift the filter upwards till it’s totally out of the unit.
The filtering material can be reused by blowing or aspiration with air. Due to its high efficiency, the filter material can
be regenerated no more than three or four times, after which it will be necessary to replace the filter itself.
