Hifonics Colossus Series User Manual

COLOSSUS DUAL MONO BLOCK AMPLIFIER APPLICATIONS
BASIC APPLICATION
3
The Colossus Dual Mono Block amplifiers are capable of
4, 2 & 1 Ohm stereo and 4 & 2 bridged loads.
SINGLE AMP INSTALLATION PROCEDURE:
1. Connect the amp LINE INPUTS to the Radio/CD player full range or mono line out puts
4. Connect a 0 gauge ground cable directly to chassis ground with in 36” of the amp.
with good quality RCA interconnect cables.
- Be sure to remove any paint or primer from the ground point.
2. Plug in the HFR-G1 bass remote module into the amp REMOTE INPUT jack.
- Use a nut, bolt and lock washer to secure the ground cable to the chassis ground.
3. Route a 0 gauge power cable directly to the vehicle battery with an in-line 300 amp fuse.
5. Connect the subwoofer(s) in accordance to the diagrams below.
This will allow you to operate separate subs independently (on each channel L
or R) at 4, 2 or 1 Ohm at up to 1600 watts or bridged across L & R to operate a
single sub up to 3200 watts at 4 or 2 Ohms.
Note: The amp is not capable of 1 Ohm when bridged across L & R.
The crossovers and HFR-G1 Remote Module will operate both L & R
channels simultaneously.

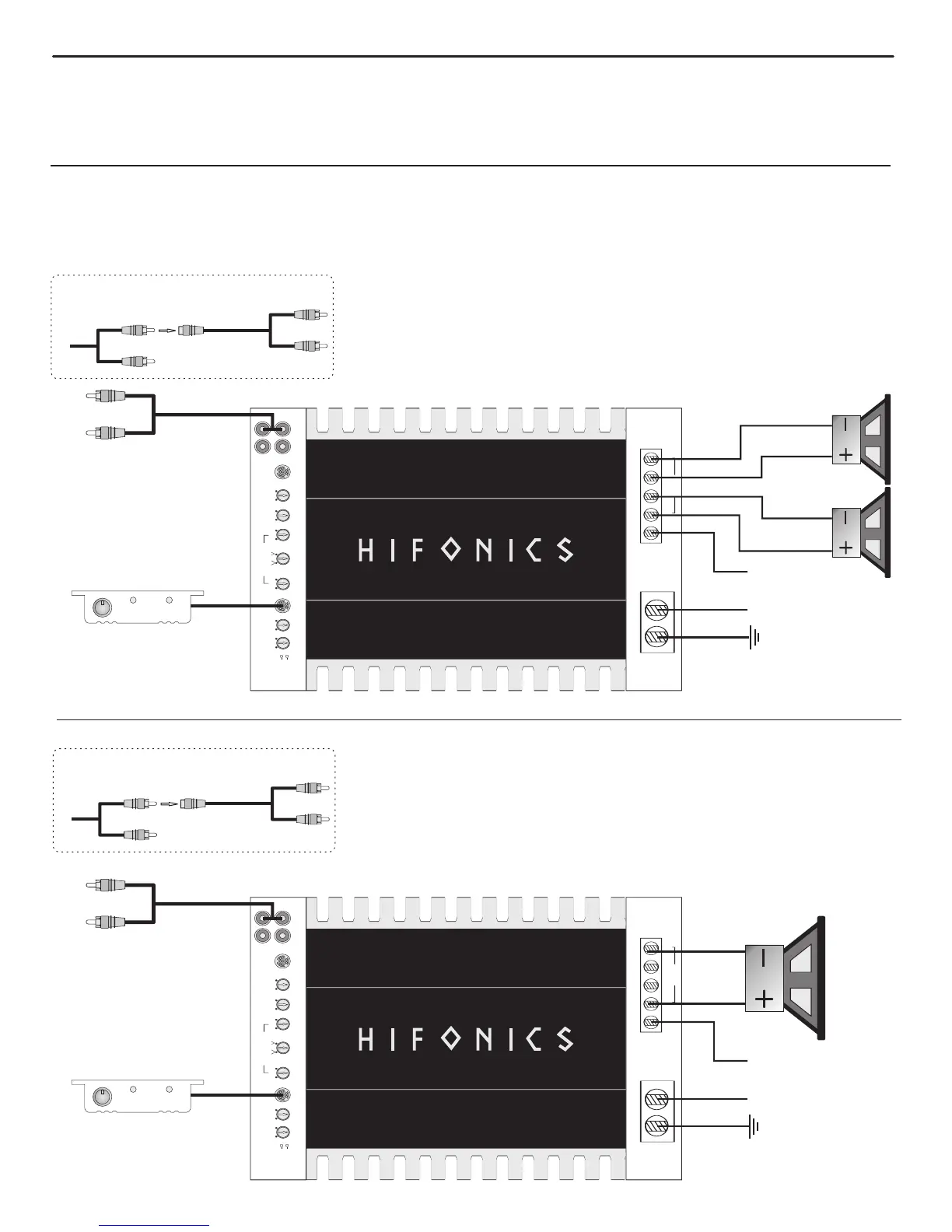

USING CHANNELS L & R INDEPENDENTLY
USING CHANNELS L & R BRIDGED
BRIDGED MONO
SUBWOOFER
2 OHM MINIMUM
Note: The amplifier is capable of
4, 2 & 1 Ohms per channel in this
configuration
Note: The amplifier is capable of
4 & 2 Ohms in this configuration.
It is not capable of 1 Ohm.
FULL RANGE
STEREO LINE INPUT
NOT USED
Y-ADAPTOR
FULL RANGE
STEREO LINE INPUT
NOT USED
Y-ADAPTOR
Note: You can use the Radio/CD designated mono
line output or a full range stereo line output.
For full range stereo line output, you will need an
optional “Y-Adaptor” as shown
Note: You can use the Radio/CD designated mono
line output or a full range stereo line output.
For full range stereo line output, you will need an
optional “Y-Adaptor” as shown
DESIGNATED MONO
LINE INPUT
INPUT
OUTPUT
L L
R R
BALANCED
INPUT
9V 0.2V
LEVEL
0 180
PHASE
RED - CLIP
GREEN - PRE-CLIP
AMBER - NEAR CLIP
DIAGNOSTICS
AMBER - THERMAL
RED - SHORT CIRCUIT
HFR-G1
REMOTE
PARAMETRIC EQ
0 10dB
BOOST
BANDWIDTH
30 100Hz
FREQ
15 35Hz
SUB
SONIC
35 250Hz
LPF
REMOTE LEVEL
-6dB
-20dB 0dB
CLIP
GREEN: PRE-CLIP
AMBER: SOFT CLIP
RED: HARD CLIP
GREEN: POWER
DIAGNOSTICS
RED: SHORT
AMBER: THERMAL
HFR-G1
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY +12v VIA
300 AMP FUSE
GND +12V
POWER
BRIDGED
REM
+
-
+
-
L-CH R-CH
DESIGNATED MONO
LINE INPUT
INPUT
OUTPUT
L L
R R
BALANCED
INPUT
9V 0.2V
LEVEL
0 180
PHASE
RED - CLIP
GREEN - PRE-CLIP
AMBER - NEAR CLIP
DIAGNOSTICS
AMBER - THERMAL
RED - SHORT CIRCUIT
HFR-G1
REMOTE
PARAMETRIC EQ
0 10dB
BOOST
BANDWIDTH
30 100Hz
FREQ
15 35Hz
SUB
SONIC
35 250Hz
LPF
REMOTE LEVEL
-6dB
-20dB 0dB
CLIP
GREEN: PRE-CLIP
AMBER: SOFT CLIP
RED: HARD CLIP
GREEN: POWER
DIAGNOSTICS
RED: SHORT
AMBER: THERMAL
HFR-G1
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY +12v VIA
300 AMP FUSE
GND +12V
POWER
BRIDGED
REM
+
-
+
-
L-CH R-CH
