Hifonics ODIN 2K User Manual

6 7

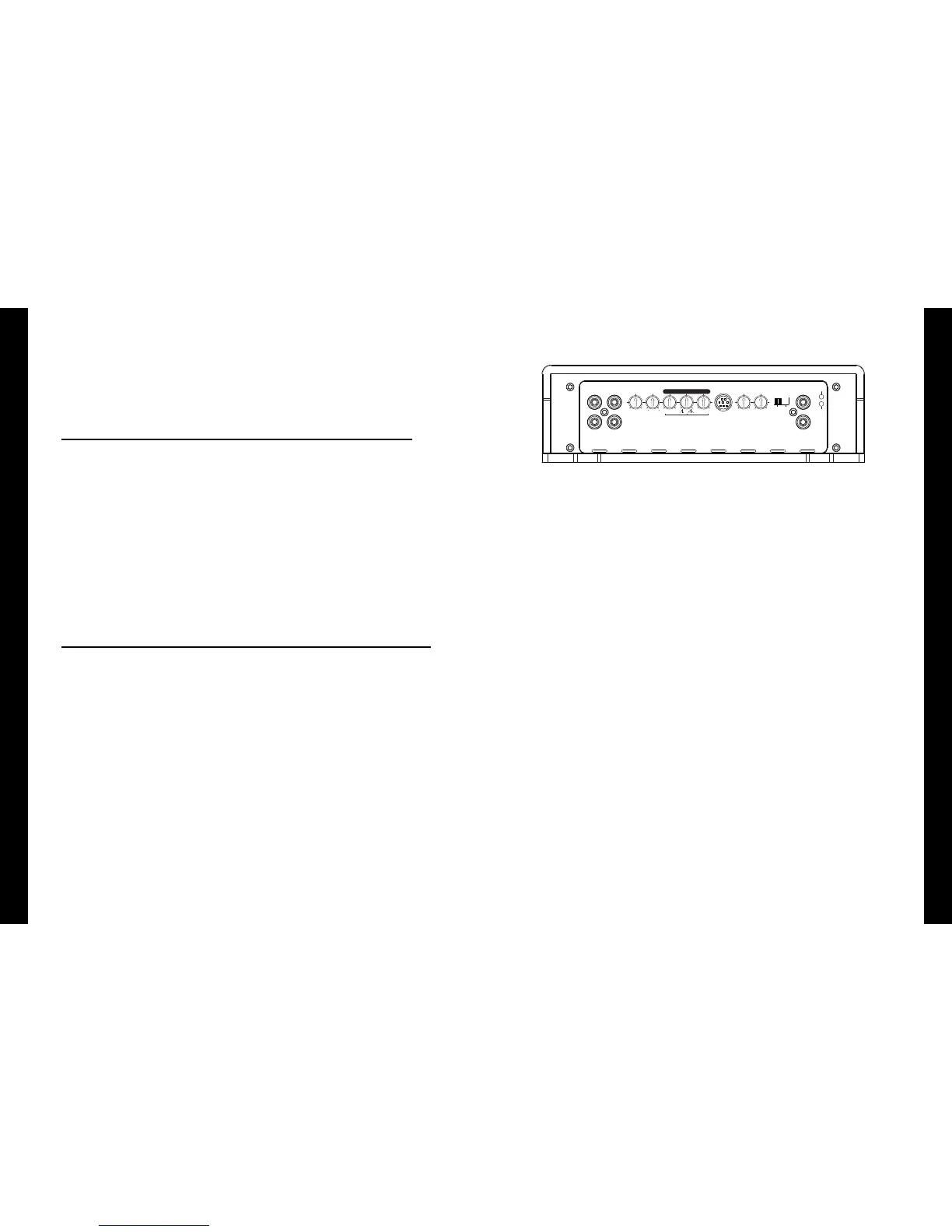

B. Amplifier Feature Descriptions B. Amplifier Feature Descriptions
REMOTE
Designed and Engineered in the U.S.A.
INPUT OUTPUT
L L
R R
MASTER
OUT
SLAVE IN
SEE OWNERS MANUAL
FOR DIAGNOSTIC CODES
PROTECT
POWER
MST SLV
MODEPHASE
9V 0.2V 0 180
LEVEL
15 35Hz
SUBSONIC
35 250Hz
LPF
BASS EQ
30 100Hz0 10dB
BOOST WIDTH CENTER
SPEAKER OUTPUT
SPEAKER OUTPUT
FUSE
POWER INPUT
GND REM +12V
POWER INPUT
+12V REMGND
50
50
B. AMPLIFIER FEATURE DESCRIPTIONS
MT. OLYMPUS AMPLIFIERS
Mt. Olympus is a unique series of ampliers regarding channel stability and design.
NOTE: THIS MANUAL FEATURES THE AMPLIFIERS ODIN 2K AND CYCLOPS 3K ONLY
» The COLOSSUS and COLOSSUS PRO are stable at 4/2/1-Ohm per channel and 4/2-Ohms bridged.
» The BOLTAR and JUPITER are stable at 4/2-Ohms per channel and 4-Ohms bridged.
» The HERCULES and ATLAS is stable at 4/2/1-Ohm.
» The ODIN 2K and CYCLOPS 3K are stable at 4/2/1-Ohm.
» The input sensitivities for rated output powers are variable from 0.2V to 9V.
» All crossovers are fully variable in their respective ranges.
» Crossover lters are 12dB/Octave.
» A green POWER LED indicates the powered up and turned on condition.
» All HIFONICS ampliers feature a comprehensive diagnostic system, with speaker lead short circuit,
and amplier DC faults indicated by the red “PROTECT” LED.
CAUTION: DO NOT OPERATE ANY AMPLIFIER BELOW THE INTENDED IMPEDANCE. THIS
WILL CAUSE DAMAGE TO THE AMPLIFIER THAT WILL NOT BE COVERED UNDER THE
WARRANTY PRINTED IN THIS MANUAL.
FEATURES FOR ODIN 2K & CYCLOPS 3K
These ampliers feature two DIAGNOSTIC LED’s. One monitors Short Circuits and Thermal Protection while
the second monitors Clipping status.
» INPUT: RCA Inputs receives signal from the source unit.
» OUTPUT: Passes full range signal through the amplier unchanged by settings on the amplier. Use
these set of RCA’s to reduce the need for muliple runs of cable to the amplier installation location.
» LEVEL: This is the input level used to balance the amplier with the voltage from the source unit.
Voltage is variable from 0.2V to 9V.
» PHASE: Variable time alignment from 0 to 180 degrees.
» BASS EQ: PARAMETRIC
• BOOST: 0 to +10dB. Will enhance bass the FREQUENCY selected.
• WIDTH: Narrow to Wide range enhancements above and below the center FREQUENCY.
• CENTER: Variable center frequency from 30Hz to 100Hz.
» REMOTE: Plug in the bass remote to this port.
» SUBSONIC FILTER: Low frequency cutoff variable from 15Hz to 35Hz.
» LOW PASS FILTER: High frequency cutoff variable from 35Hz to 250Hz.
» MODE: (ODIN 2K & CYCLOPS 3K):
• MST (MASTER): Factory setting for the switch location when using the amp alone is always set to
MST. Also used when linking a pair of either the ODIN 2K or CYCLOPS 3K ampliers. When in MST
position, a single RCA can be connected to the MASTER OUT RCA receptacle to provide signal to
the SLAVE INPUT on the SLAVE amplier.
• SLV (SLAVE): Your MODE switch should only be in this position if you are linking a pair of ODIN
2K or CYCLOPS 3K ampliers and one of them will be the SLAVE. At that point the SLAVE amp will
receive the single RCA on the SLAVE IN. No other RCA’s can be connected to your amplier other
than SLAVE IN when in SLAVE IN position.
» PROTECT & POWER: These indictors tell you the status of the amplier.
