DUAL AMP INSTALLATION PROCEDURE
» Connect the amp LINE INPUTS to the Radio/CD player full range or mono line outputs with good quality
RCA interconnect cables.
» Plug in the HFR-G1 bass remote module into the amp remote input DIN connection on the Master amp.
This will allow the Master amp to control both Master and Slave with just one Bass Remote.
» Connect an RCA jumper cable from the Master amp MASTER OUTPUT to the Slave amp SLAVE
INPUT.
NOTE: This will “link” the amps so that the Master amp crossover switches will control both the
Master and Slave amps. The Slave amp crossover switches will be bypassed.
1. Route two power cables (4-gauge for Odin 2K / 0-gauge for Cyclops 3K) directly to the vehicle battery
with an in-line fuse to EACH amplier.
2. Connect two ground cables (4 or 0-gauge) directly to the chassis within 18” of EACH amplier.
3. Be sure to remove any paint or primer from the ground point.
4. Use a nut, bolt and lock washer to secure the ground cable to the chassis ground
5. Make sure the Master amp MASTER/SLAVE switch is in the MST position.
6. Make sure the Slave amp MASTER/SLAVE switch is in the SLV position.
7. Connect the subwoofer(s) in accordance to the diagrams on the next page.
8. Connect a 12 gauge jumper from Master amp speaker - to Slave amp speaker - as shown on the next
page.

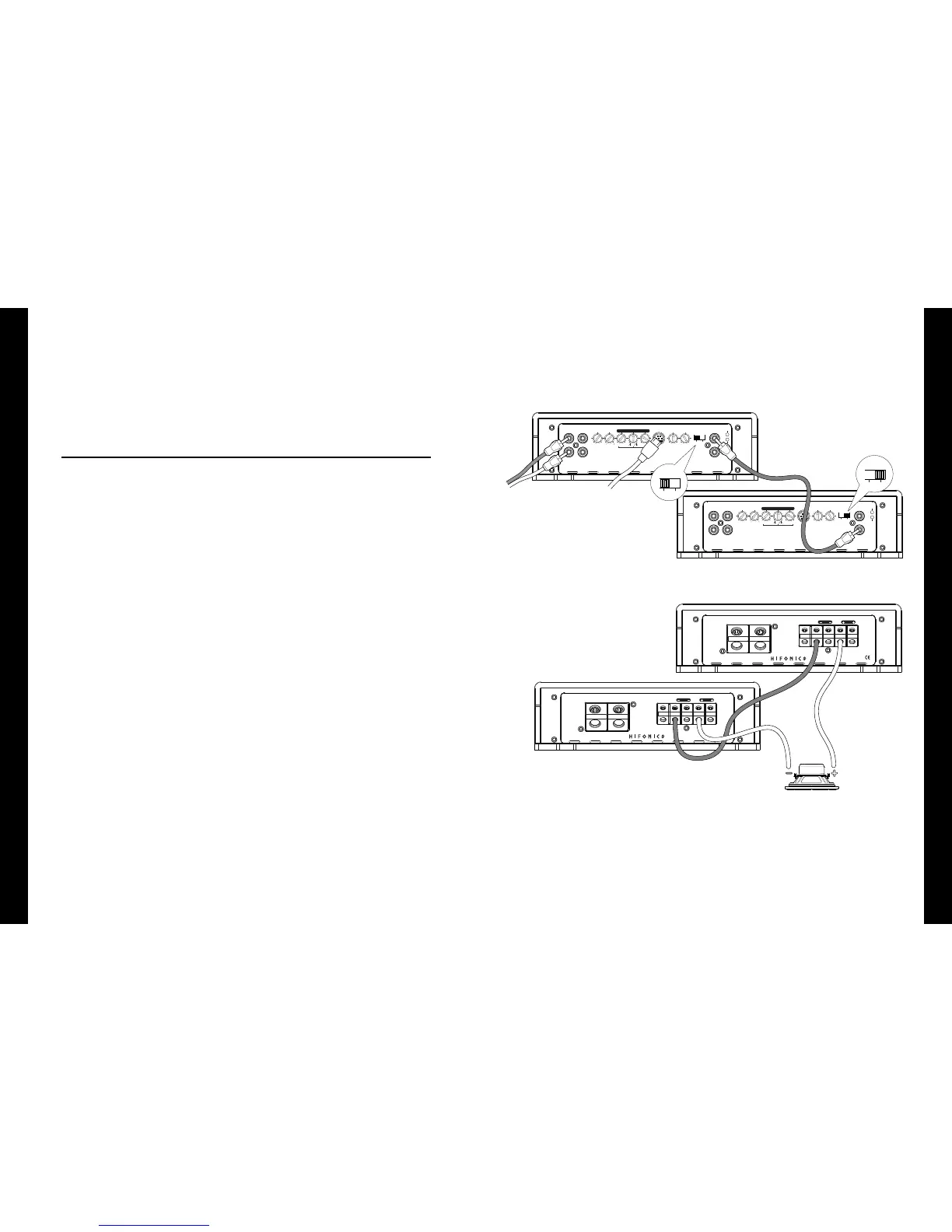

Linking two amps for single or dual subwoofer application
Ampliers are stable to 2-OHMS when linked
To Next Page
