Section 3 - Bale Mover Preparation

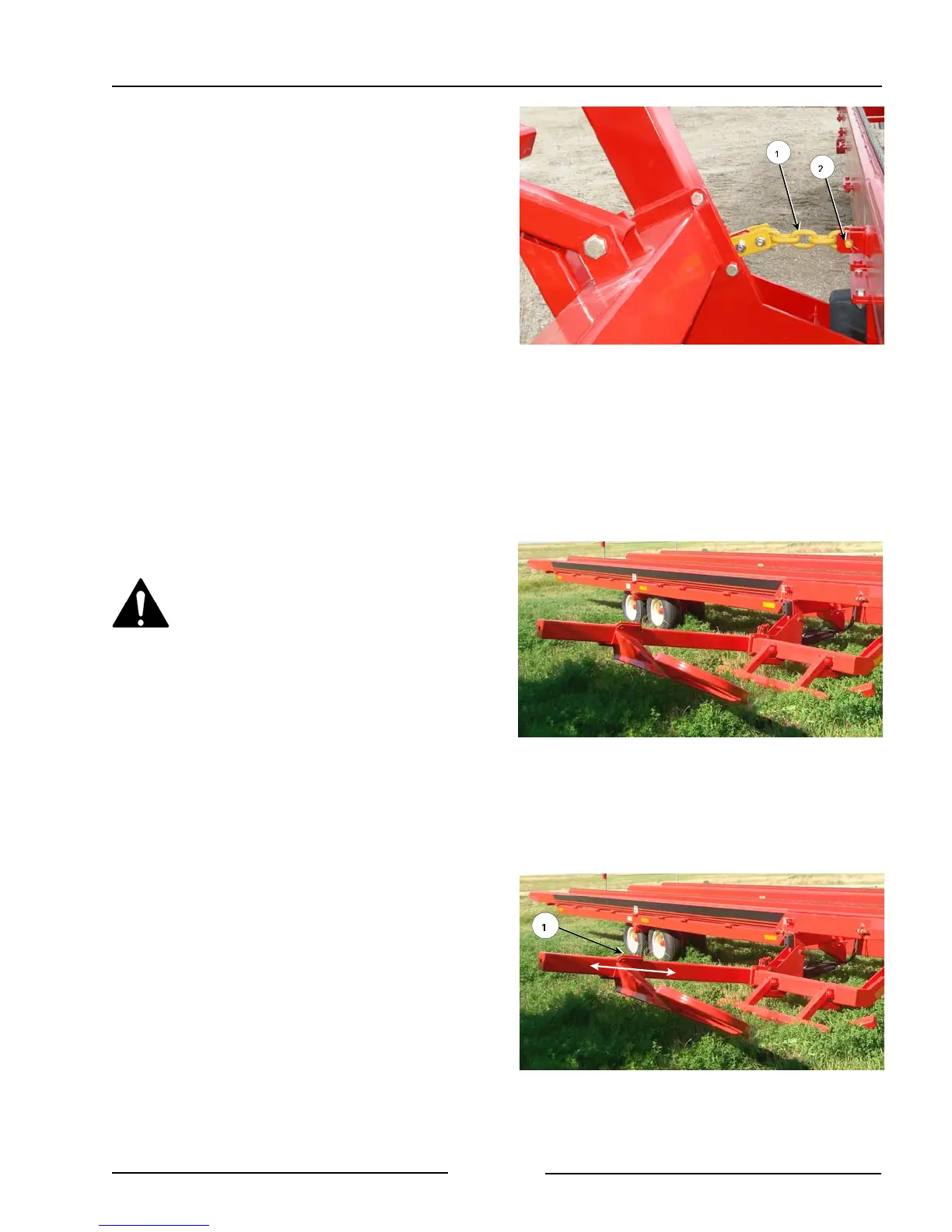

6. Remove the lift arm transport chains on
both arms.
- Raise arms to remove tension on the
transport chain.
Note: Do not lower the forks when transport
chains are in position or damage to
the machine will occur.
- Remove the clip pin (2) and remove
the chain pin (1).
- Place the chain pin (1) back into the
tabs and lock in place with the clip pin
(2).
7. Lower the bale lift arms.
Stand Clear of Bale Lift Arms
- Moving lift arms can cause serious
injury or death.
- Never stand under lift arms when
lowering or raising.
- Do not allow people near the lift
arms when the being moved.
Note: Do not lower the forks when transport
chains are in position or damage to
the machine will occur.
8. Set the Width of the Bale Lift Arms
- Loosen the bolts on the arm clamp
(1).
- Slide the arm to the suit the size of the
bale.
- Tighten the bolts on the holding clamp
to fasten the lift arm.
Remove Transport Lock Chains
211036C
Slide Clamp for Bale Width
211041C
Page 3-3
