Section 6 - Storing the Bale Mover
Oil the Chains to Prevent Weathering
211038
8. Raise both lift arms to the full upright
position.
9. Fasten both lift arm transport chains (1) in
place to lock the arms.
- Fasten the chains with the pin (2) and
lock in place.
10. Remove the jack from the storage
position and place it onto the hitch.
- Pin the jack in place (1).
- Raise the hitch until the weight is
supported by the jack.
- Ensure that the jack is resting on solid
level ground or resting on a wood
block.
11. Disconnect the hitch from the tractor.
- Remove the hitch pin.
12. Oil the bale chains with a rust
inhibiting oil or coating to prevent
weathering.

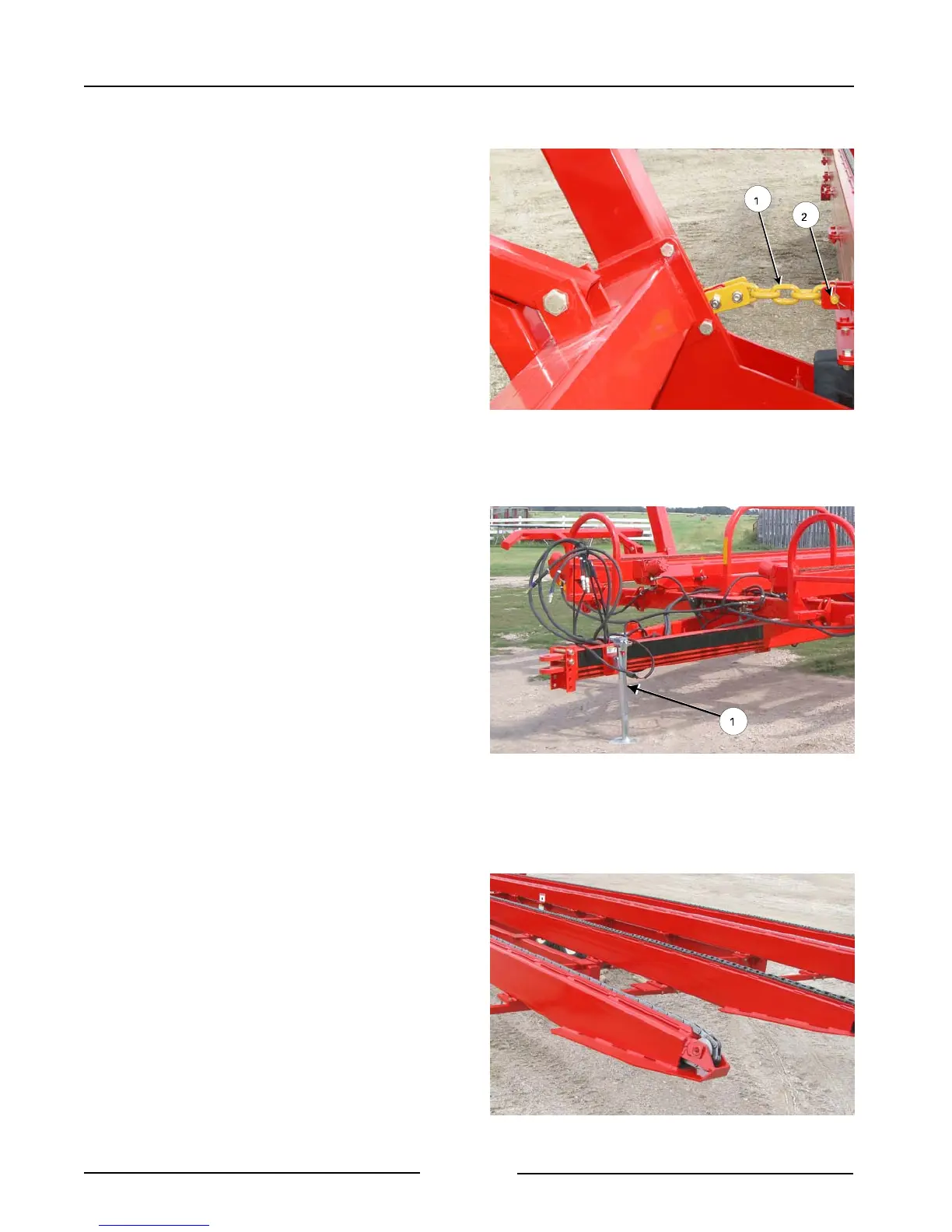

Fasten Lift Arm with Transport Chain
211036C
Raise the Hitch with the Jack
211077
Page 6-2
