Section 5 - Maintaining the Bale Mover

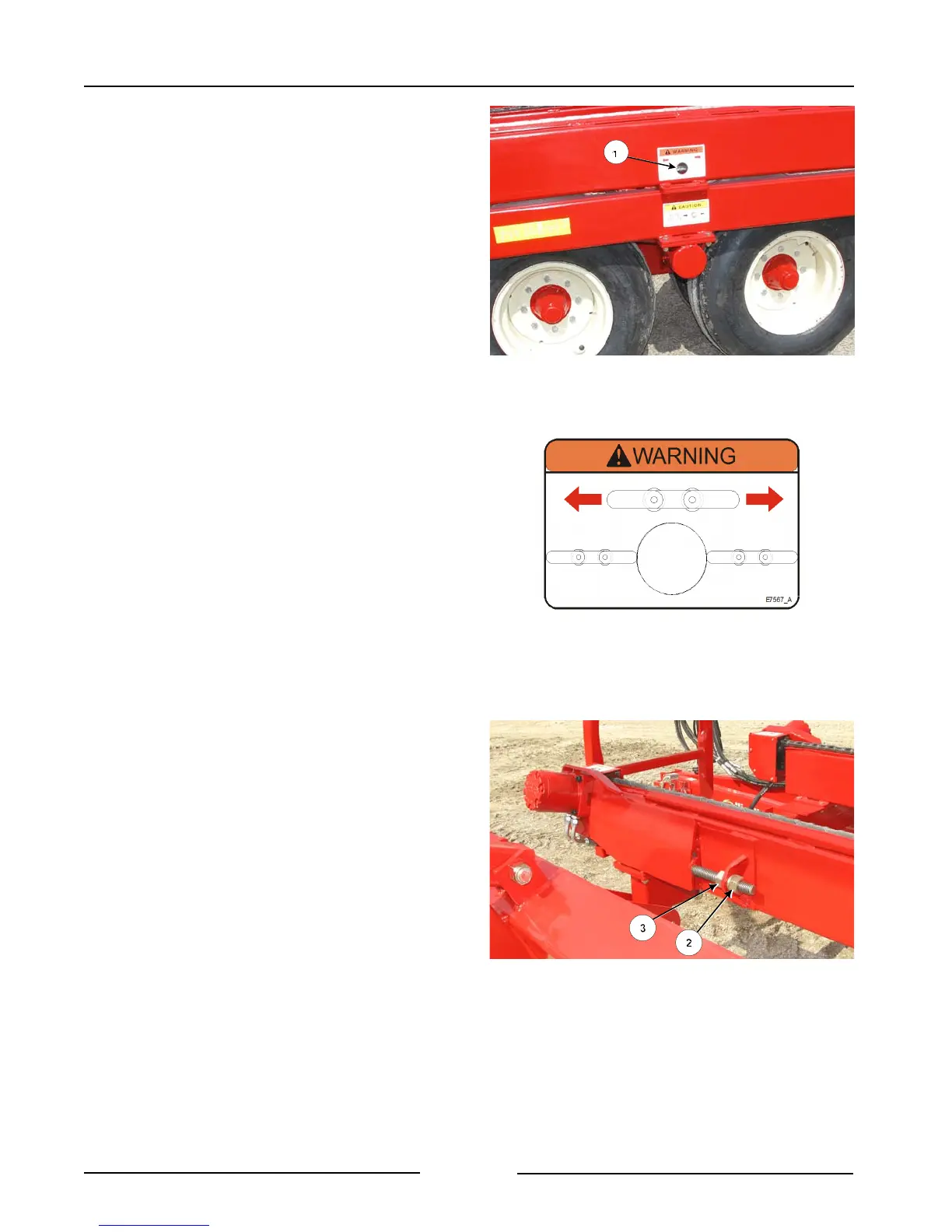

Chain Adjustment Procedure
Check the tension on all 4 chains.
- The chain can be seen in the sight
hole (1) that is in the side of each rail.
- The chain should be in line with the
image of the chain that is on the
decal.
To adjust the chain tension:
- Loosen the nut (2) at the end of the
threaded rod on the motor mount.
- Adjust the chain tension by turning the
inside nut (3) until the bottom of the
chain is just off the bottom of the rail.
- Tighten the nut (2) at the end of the
threaded rod to secure the tension
setting.
Check Tension of All the Chains
211061
Chain Tension
E7567_A
Adjust the Chain Tension
211066C
Page 5-4
