HighLine RCH Mower - Connecting the Single Point Hitch and Drawbar

Section 2 - Transporting the Mower
Page 2-2

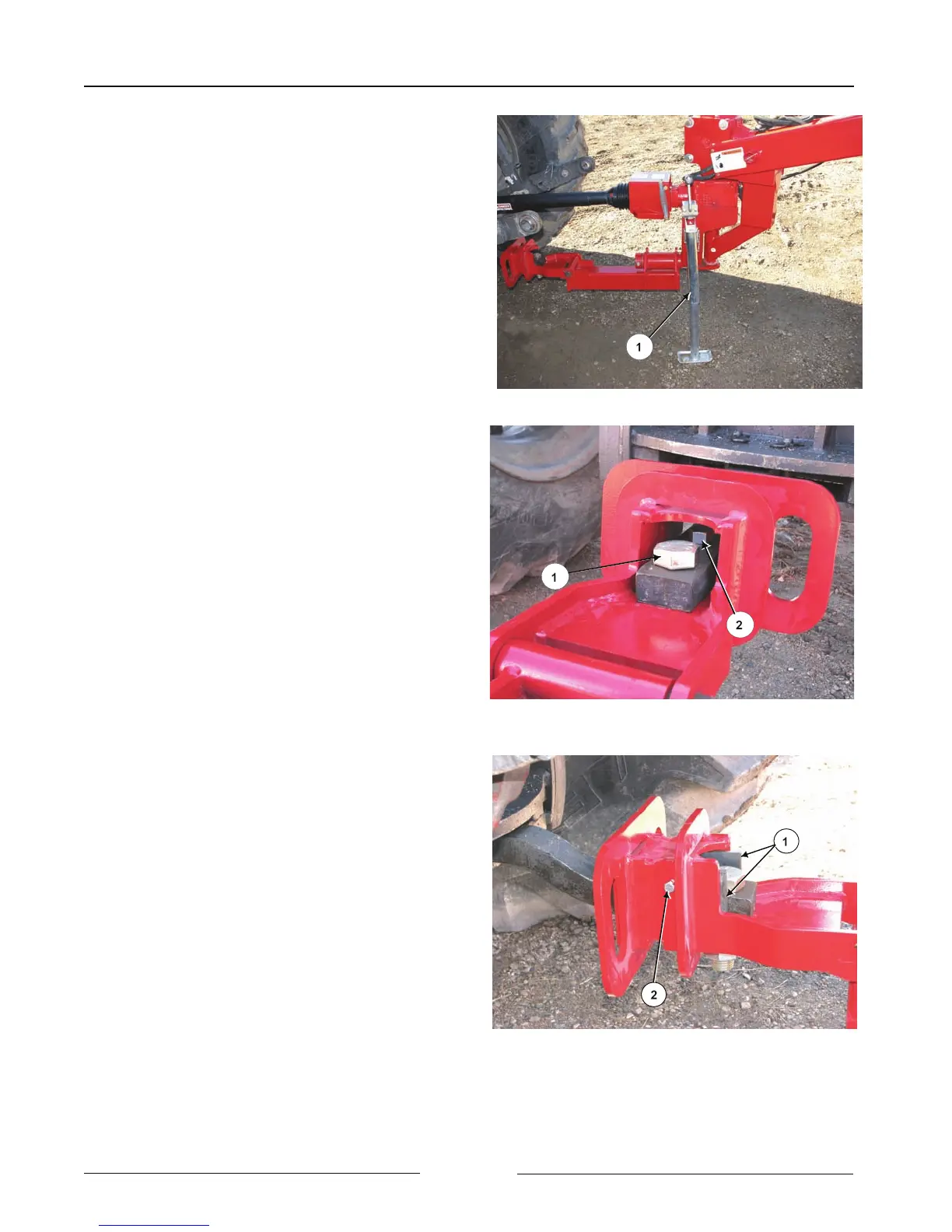

4. Connect Single Point Hitch (if applicable)
- Lift the Hitch Arm with the jack (1)
- The hitch arm is very heavy. Do
not attempt to lift it without using
the jack. - Adjust the hitch to
connect the drawbar.
- Connect the tractor drawbar to the
drawbar connector with:
- 1 1/4" x 5" bolt, washer and
locknut (1). Torque to 600 lbf (813
Nm)
- 3/4" x 3 ½" bolt, washer and
locknut (2). Torque to 260 lbf (352
Nm).
- Place a ½" thick shim plate (1) on
each side of the drawbar and fasten in
place with 3/8" x 5" bolt and locknut
(2 ).
Single Point Hitch on Jack
107081C
Drawbar Shims
107083C
Connecting Drawbar Connector
107082C
