Section 3 - Mower Preparation
Page 3-3

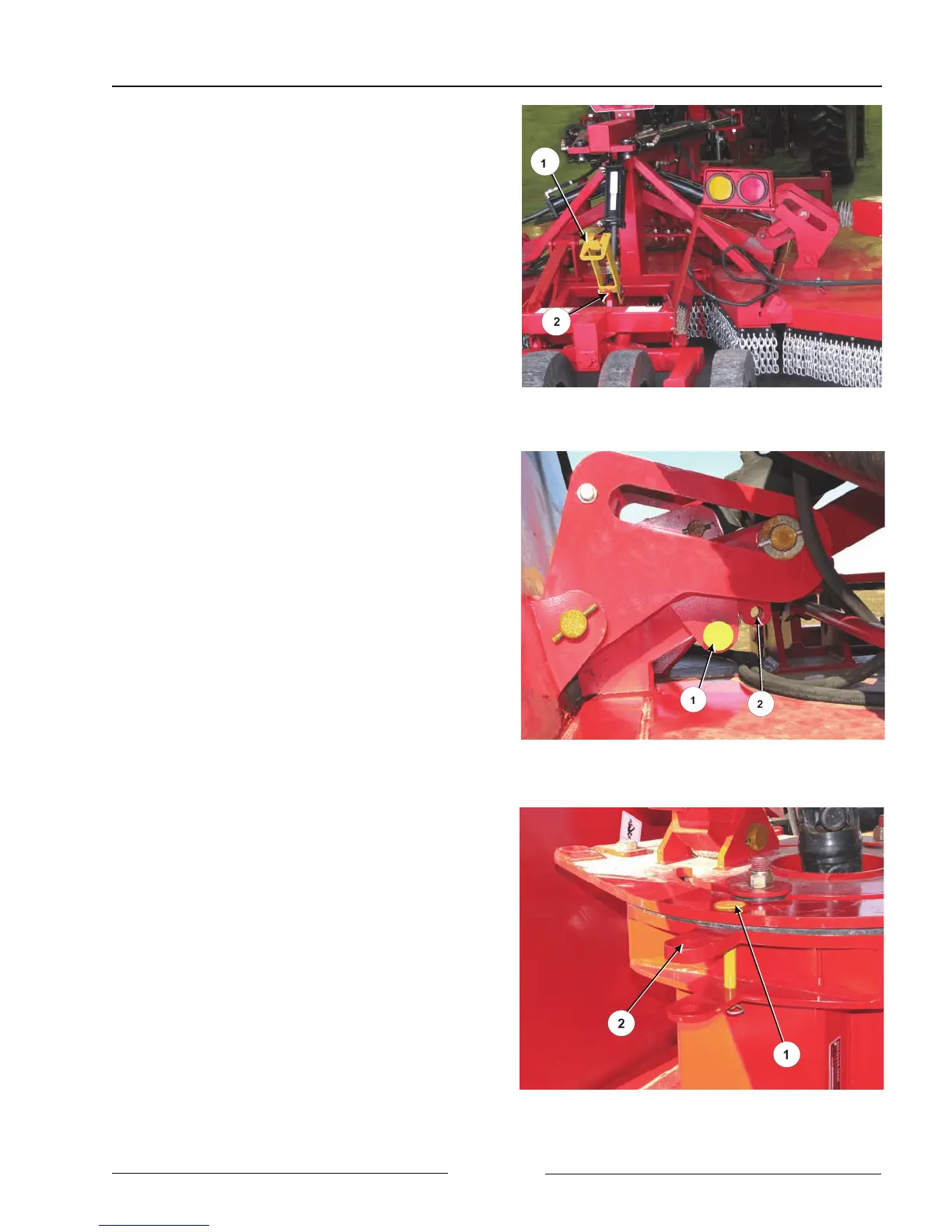

6. Remove the Height Control Transport
Lock
- Raise the mower center section by
extending the lift cylinder.
- Shut off the tractor and remove the
ignition key.
- Place the center transport lock (1) into
the storage slot (2).
7. Remove the Wing Transport Lock Pins
- Place the pins (1) into the pin storage
position (2).
8. Remove the Hitch Transport Lock Pin
- Place the pin (1) into the pin storage
position (2).
Remove Wing Transport Lock Pins
107085C
Remove Hitch Transport Lock Pin
107086C
Remove Height Control Transport Lock
108010C
