Section 5 - Maintaining the Mower
Page 5-5
Gearbox Oil Changing Procedures
Change the oil annually and before storing
the mower for the season.
Before beginning, make sure the
tractor is off and the PTO is
disengaged. Disconnect the
driveline from the tractor before
doing any work.
Securely block-up the mower
before any work is done under the
mower when lifted up. This is to
prevent the mower from dropping
due to inadvertent operation of
controls, hydraulic leaking or
failure of any components.
Wing Gearboxes Oil Change
1. Wing up the mower. The oil on the wing
gearboxes can be changed with the wings
raised.
2. Remove the Blade Pan to gain access to
the drain plug. Use the Blade Pan
Removing and Replacing procedures
outlined in this Manual.
3. The oil drain plug (1) is located on the
gearbox vertical shaft casing.
4. Remove the drain plug and drain the oil.
Collect the oil in an environmentally
friendly container.
5. Replace the drain plug.
6. Replace the Blade Pan using the Blade
Pan Removing and Replacing procedures
outlined in this Manual.
7. Refill with the specified oil type through
the fill plug.
8. Dispose of the oil container at an
appropriate oil recycling center.

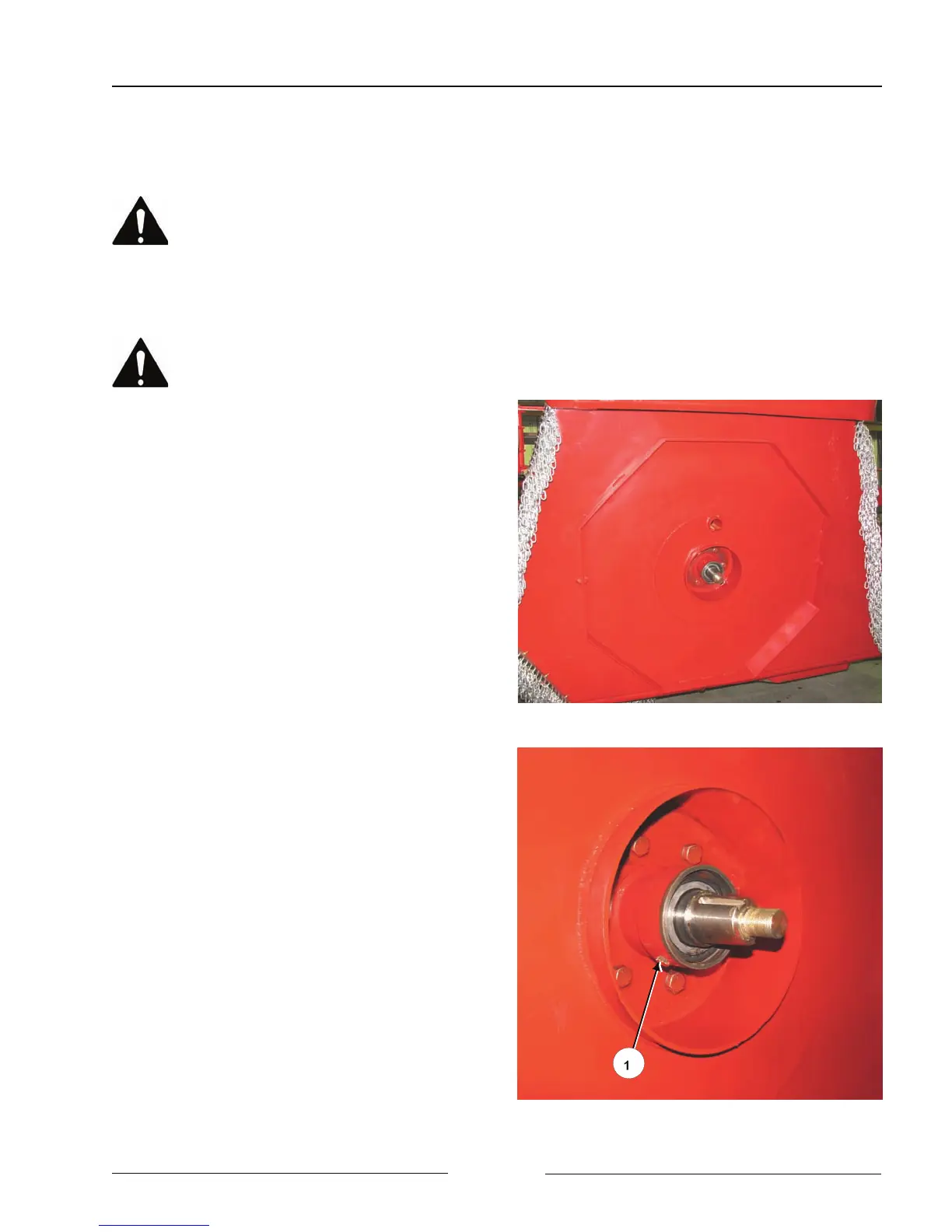

Wing Gearbox Oil Drain Plug
108027C
Remove Blade Pan to Change Oil in Gearbox
108026
