Section 5 - Maintaining the Mower
Page 5-4
! Left Wing & Right Wing Driveline -
Lubricate 5 points on each wing every 50
hours.
-1 point on each joint
-1 point on each joint collar
-1 point at the telescoping section
! Walking Beams - Lubricate every 50
hours.
- 2 front walking beams on castors
- 2 rear wheel carriers walking beams
Every 100 Hours
! Hubs on spindles - Lubricate all the hubs
every 100 hours.

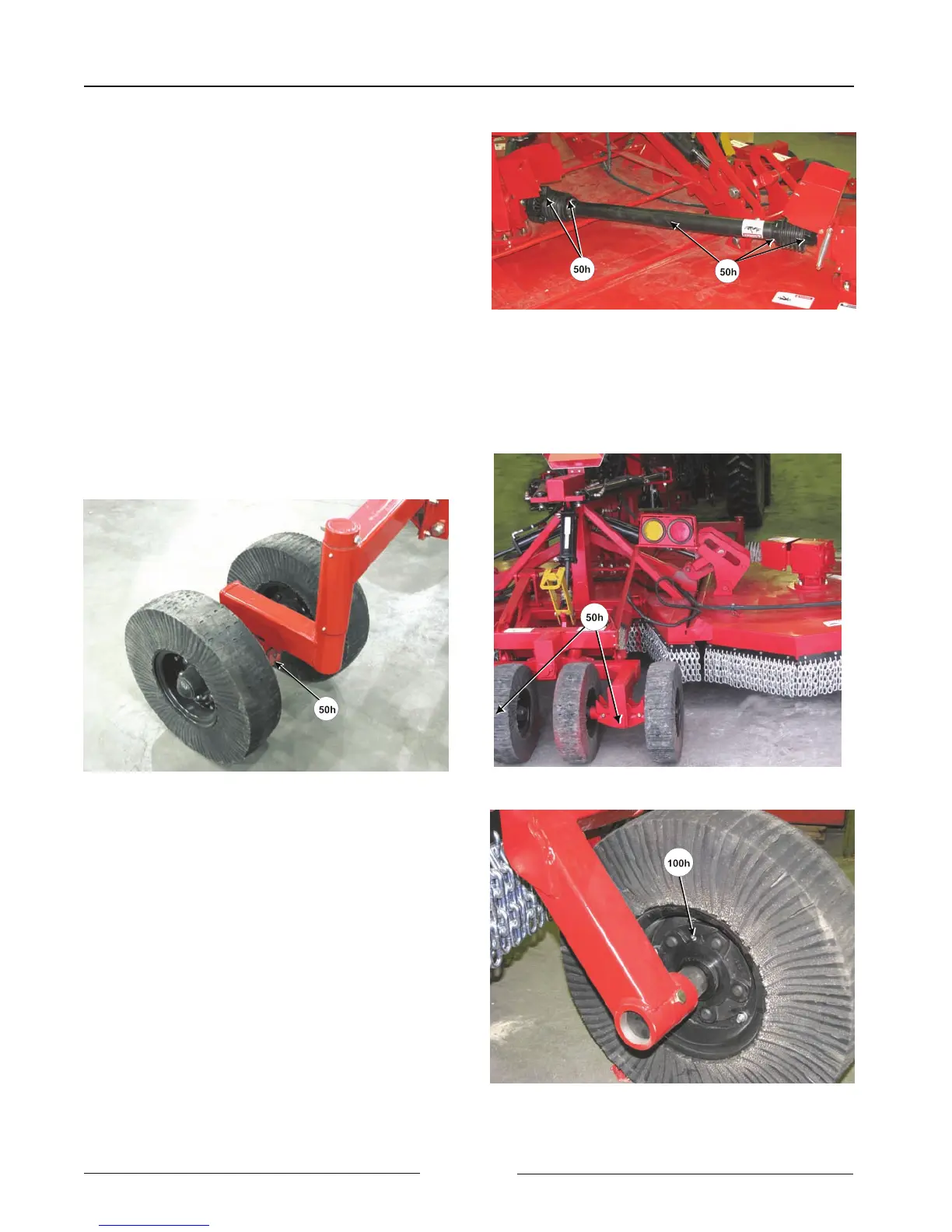

Grease Front Walking Beams
107051C
Grease Wing Driveline
107049C
Grease Rear Walking Beams
108021C
Grease Hubs on all Spindles
107052C
