Section 3 - Mower Preparation
Page 3-5
To adjust the center section for front to back level:
1) Raise the deck.
2) Block up the center section to remove all tension from both tie rods that extend from
the front castors to the rear wheel carriers. This will avoid damage to the threads on
the tie bars.
3) Loosen both tie rod jam nuts (1)
near the front castors.
4) Turn both tie rod adjusters (1) equally
to raise or lower the wheels. The tie
rod adjusters are near the back wheel
carrier.
- To lower the mower, loosen the tie
rods.
- To raise the mower, tighten the tie
rods.
5) Tighten both tie rod jam nuts to lock in
place.
6) Raise the mower, remove the blocking
and lower the mower to the preferred
cutting height.
7) Measure and compare the level from
the front to back.
8) Adjust further if required.

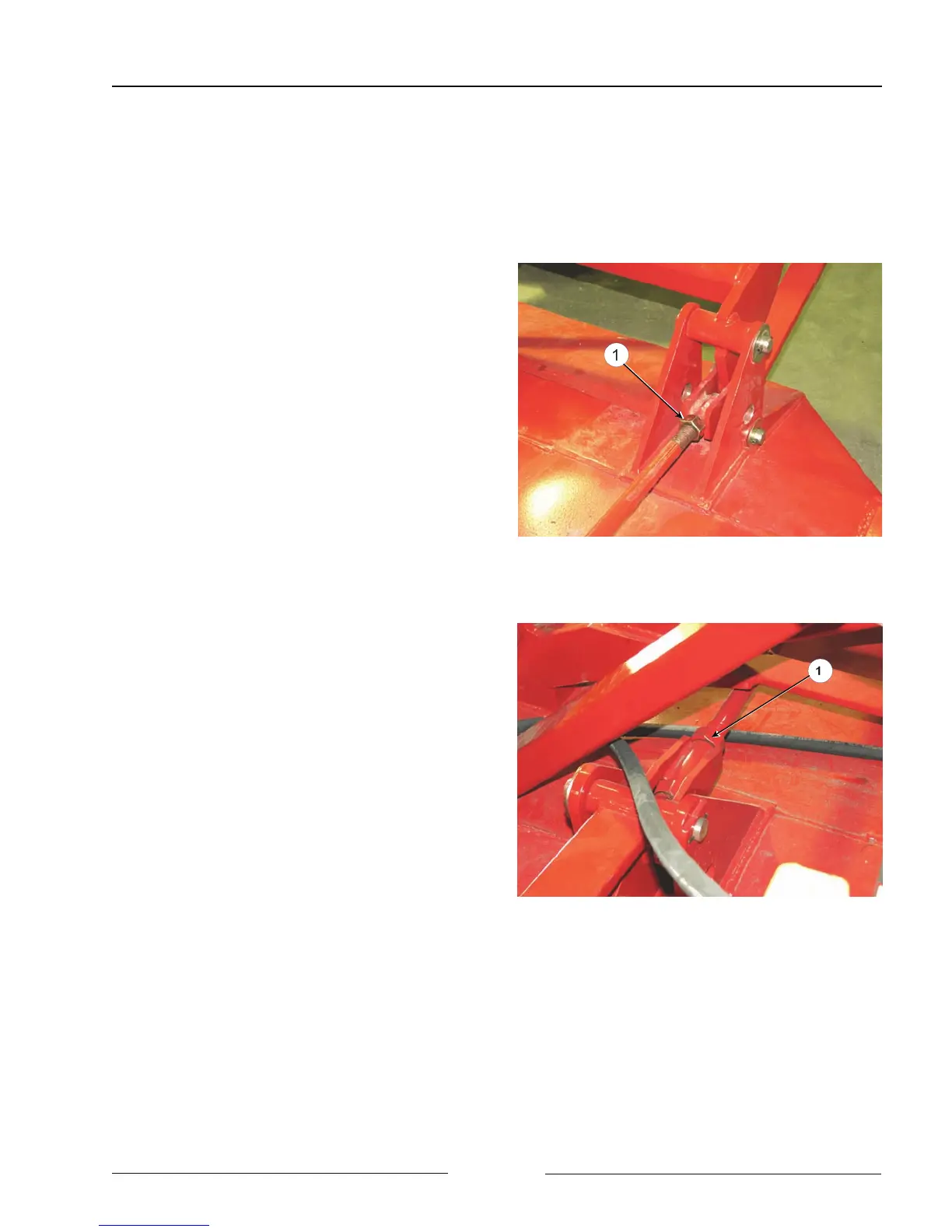

Tie Rod Jam Nut at Front of Mower
107029C
Tie Rod Adjuster at Back of Mower
107030C
