HighLine RCH Mower - Optimizing Cut Quality: Setup for Mowing Conditions

Section 4 - Operating the Mower
Page 4-3
107105
107106
107099

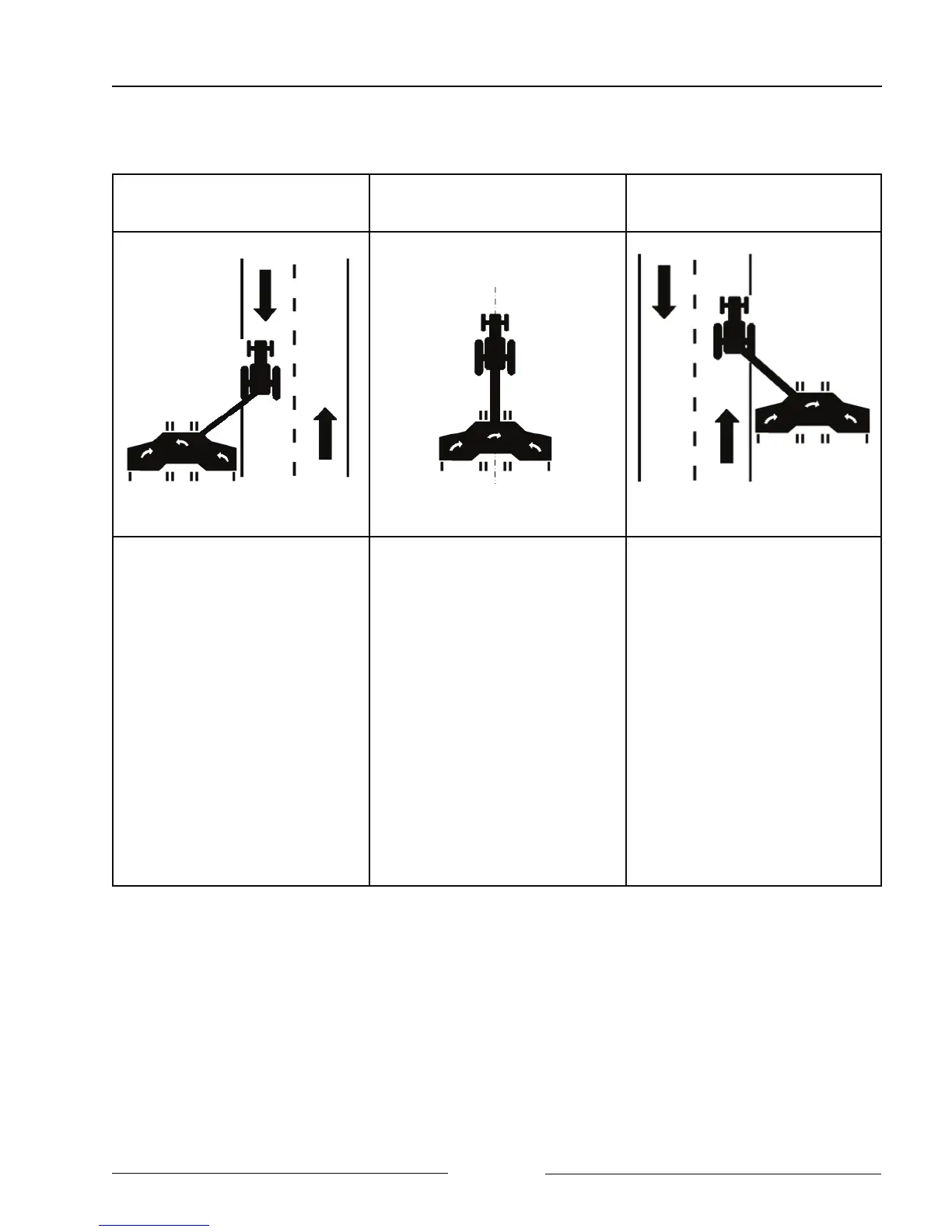

Recommended Setup to Obtain a Quality Mowing Cut for the Primary Cutting Conditions
indicated below:
Left Hand Slope Operation
(Against Traffic)
Level Ground Operation Right Hand Slope Operation
(With Traffic)
1. Confirm that the center
section blades rotate
counterclockwise and the
wing blades rotate toward the
center section.
2. Adjust the wing heights for
Left Hand Slope Operation.
(See Section 3)
3. If the Gradient Control
Option is installed, see the
Gradient Control Option
Section.
1. Blade rotations are the
same as for Right Hand
Slope Operation. Confirm that
the blades rotate as indicated
for Right Hand Slope
Operation.
2. Adjust the wing heights for
Level Ground Operation (See
Section 3).
3. If the Gradient Control
Option is installed, see the
Gradient Control Option
Section.
1. Confirm that the center
section blades rotate
clockwise and the wing
blades rotate towards the
center section.
2. Adjust the wing heights for
Right Hand Slope Operation.
(See Section 3)
3. If the Gradient Control
Option is installed, see the
Gradient Control Option
Section.
