Section 5 - Maintaining the Mower
Page 5-10
Friction Clutch (taken from www.weasler.com)
107092

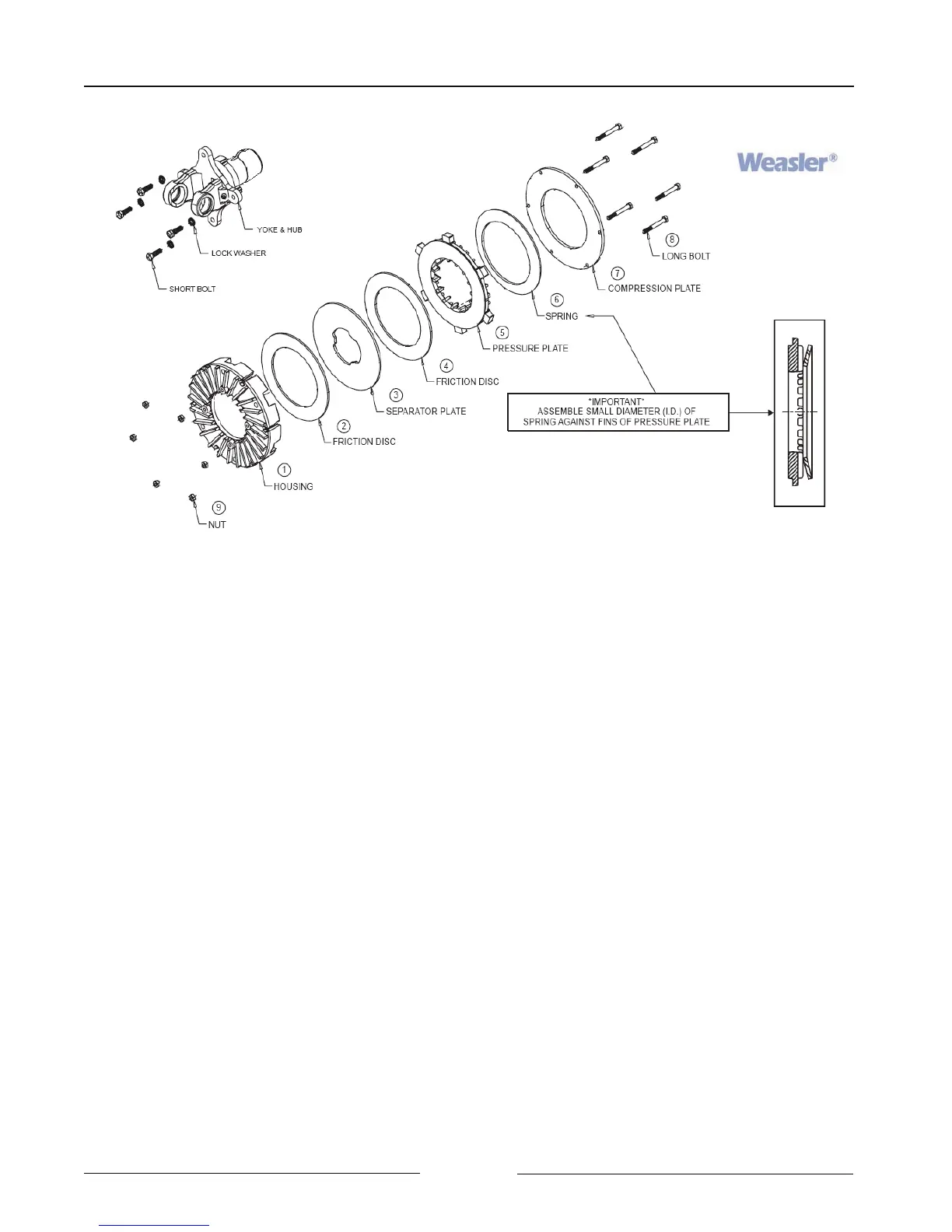

Assembly
1. Place one new friction disc (2) inside the
housing (1), the separator plate (3) and
the other friction disc (4).
2. Place the pressure plate (5) so that the
flat surface rests on the friction disc (the
tabs on the plate must fall into the reliefs
in the housing).
3. Place the disc spring (6) so that the small
diameter of the spring is against the fins
of the pressure plate.
4. Fasten the compression plate (7) with the
long bolts (8), making sure that the nuts
(9) are in their pockets. Tighten to 30 lbf
(41 Nm).
