Step 2 – Connect computers to the KM Computer ports
• Computer keyboard & mouse connection: Connect each
computer to the KM keyboard & mouse computer port using a
USB A to USB B cable. Connect the USB A end to the computer
and the USB B end to KM.
• Computer USB peripherals: Connect each computer to
the KM fUSB computer port using a USB A to USB B cable.
Connect the USB A end to the computer and the USB B end
to KM.
• Computer video connection: Directly connect
a monitor to each computer. Multi-monitor
computers require driver installation,
currently available only for Windows (http://
highseclabs.com/dl.php?fid=446).

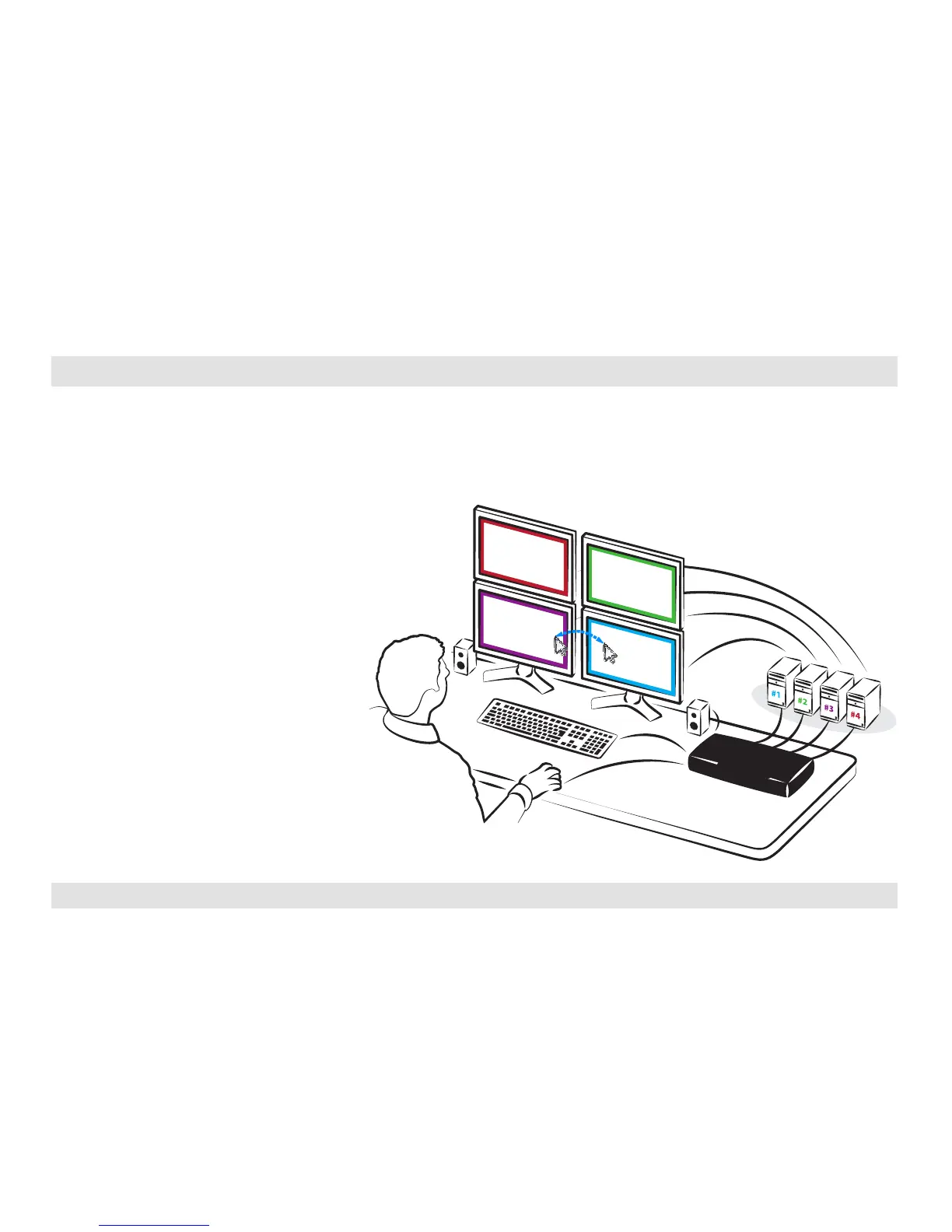

Note: 4 channel product illustrations shown throughout this manual are
applicable to other KM models.
Speakers
Single
Keyboard & Mouse
KM
SWITCH
KM
SWITCH
PC #4
PC #3
PC #1
PC #2
Move mouse
to switch PCs
Multiple
Sources
