Hikmicro OWL Series User Manual

Thermal Monocular User Manual
3
1.3.2 Component

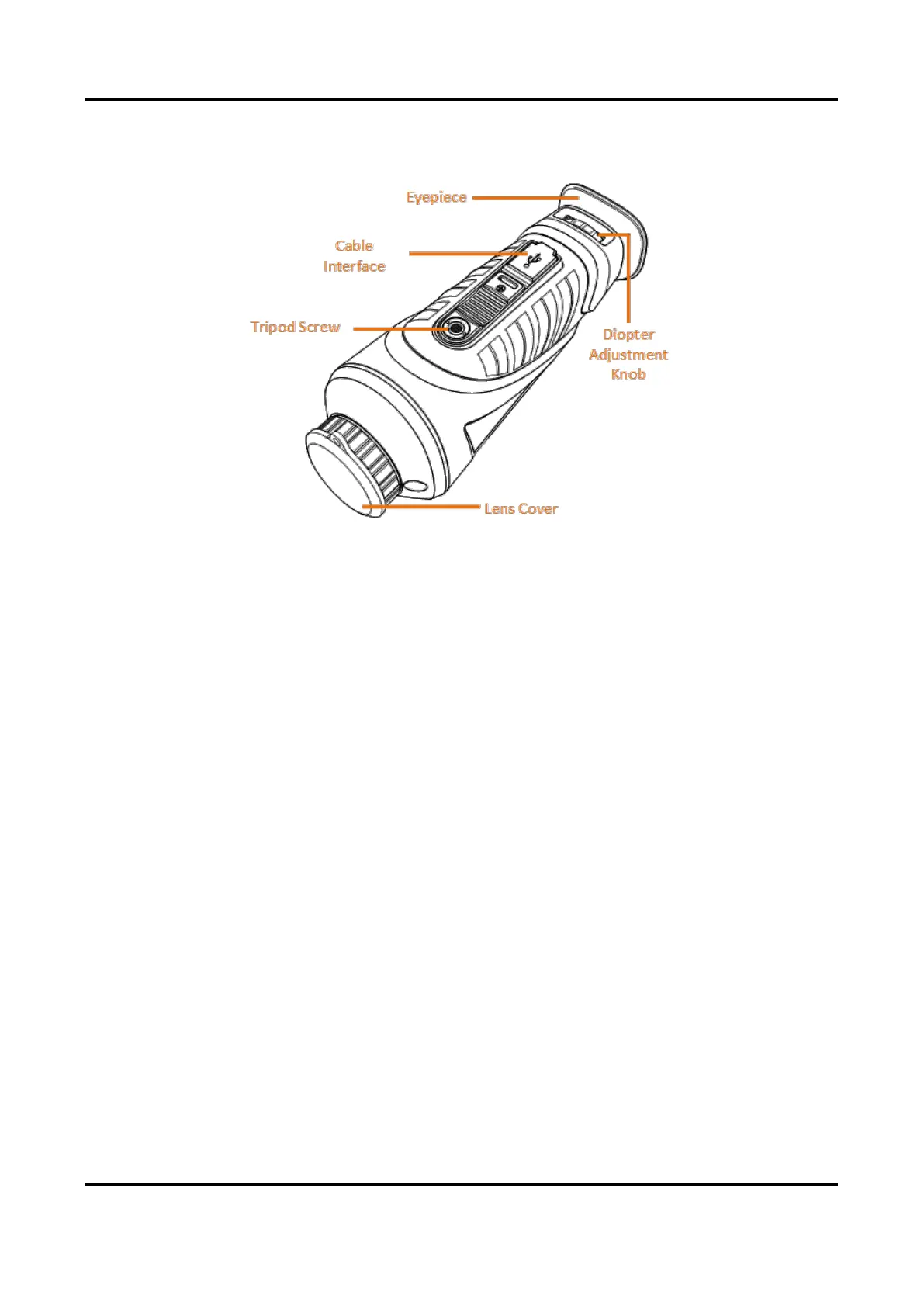

Figure 1-2 Overview of Components
● Lens Cover: Protects the lens from dust or scratch.
● Diopter Adjustment Knob: Adjusts the dioptric setting.
● Cable Interface: To connect the device to power supply or transmit data with a type-C cable.
● Tripod Screw: Installs the tripod.
● Eyepiece: The piece placed closest to the eye to view the target.

Hikmicro OWL Series Specifications

General

Aperture	F1.0
Record Video	Yes
Capture Snapshot	Yes
Wi-Fi	Yes
Lens	19 mm
Detector Type	Uncooled VOx microbolometer
Pixel Interval	17 μm
Response Waveband	8μm - 14μm
NETD	<40mK
Digital Zoom	1 ×, 2 ×, 4 ×, 8 ×
Frame Rate	50 Hz
Battery Type	Lithium rechargeable battery
Operating Temperature	-20 °C to 55 °C (-4 °F to 131 °F)
Thermal Sensitivity	<40mK
