HIKVISION 1200KI User Manual

5 How to use 485 control back-end GUI4.0
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

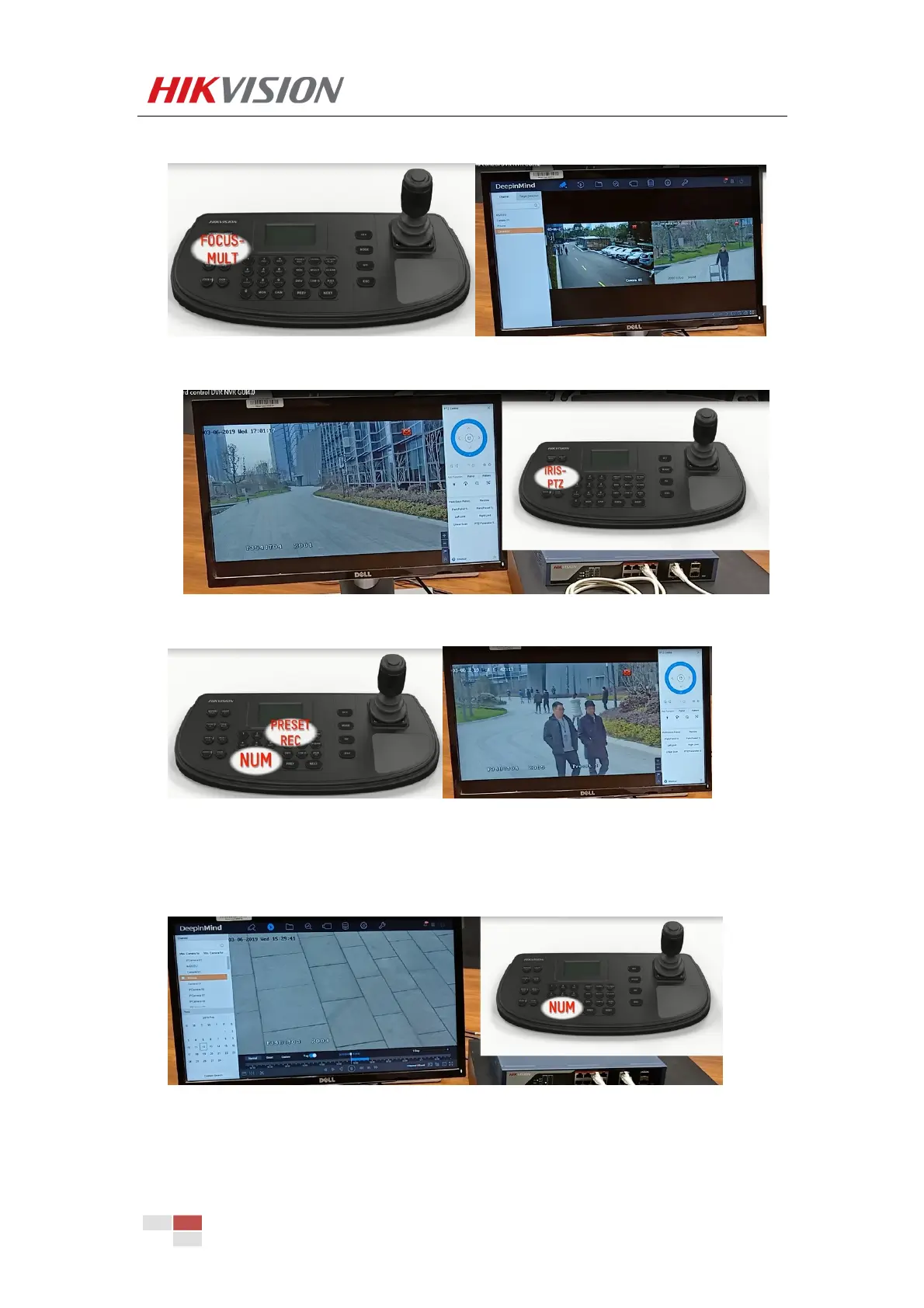

4) Press IRIS-/PTZ button to enter PTZ mode, and use joystick to control PTZ
Press PRESET/REC button + NUM button to call camera preset
And you can press ESC button once to go back to liveview
9. To control playback
1) Press NUM button to select the camera you want playback
2) And PATTERN/PLAY button to select date (use joystick to make switch), click OK to make
selection

HIKVISION 1200KI Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Working Humidity	10% to 90%
Category	NVR
Channels	16
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB Interface	USB 2.0
HDMI Output	1 HDMI output
VGA Output	1 VGA output
Audio Output	1 RCA audio output
Two-Way Audio	Yes
Decoding Format	H.265/H.264
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Type	16 PoE 4K NVR
