Network Video Recorder User Manual

212

12.4 Configuring Network Detection

Purpose:

You can obtain network connecting status of NVR through the network detection function,

including network delay, packet loss, etc.

12.4.1 Testing Network Delay and Packet Loss

Step 1 Enter the Network Traffic interface.

Menu >Maintenance>Net Detect

Step 2 Click the Network Detection tab to enter the Network Detection menu, as shown in Figure

12-26.

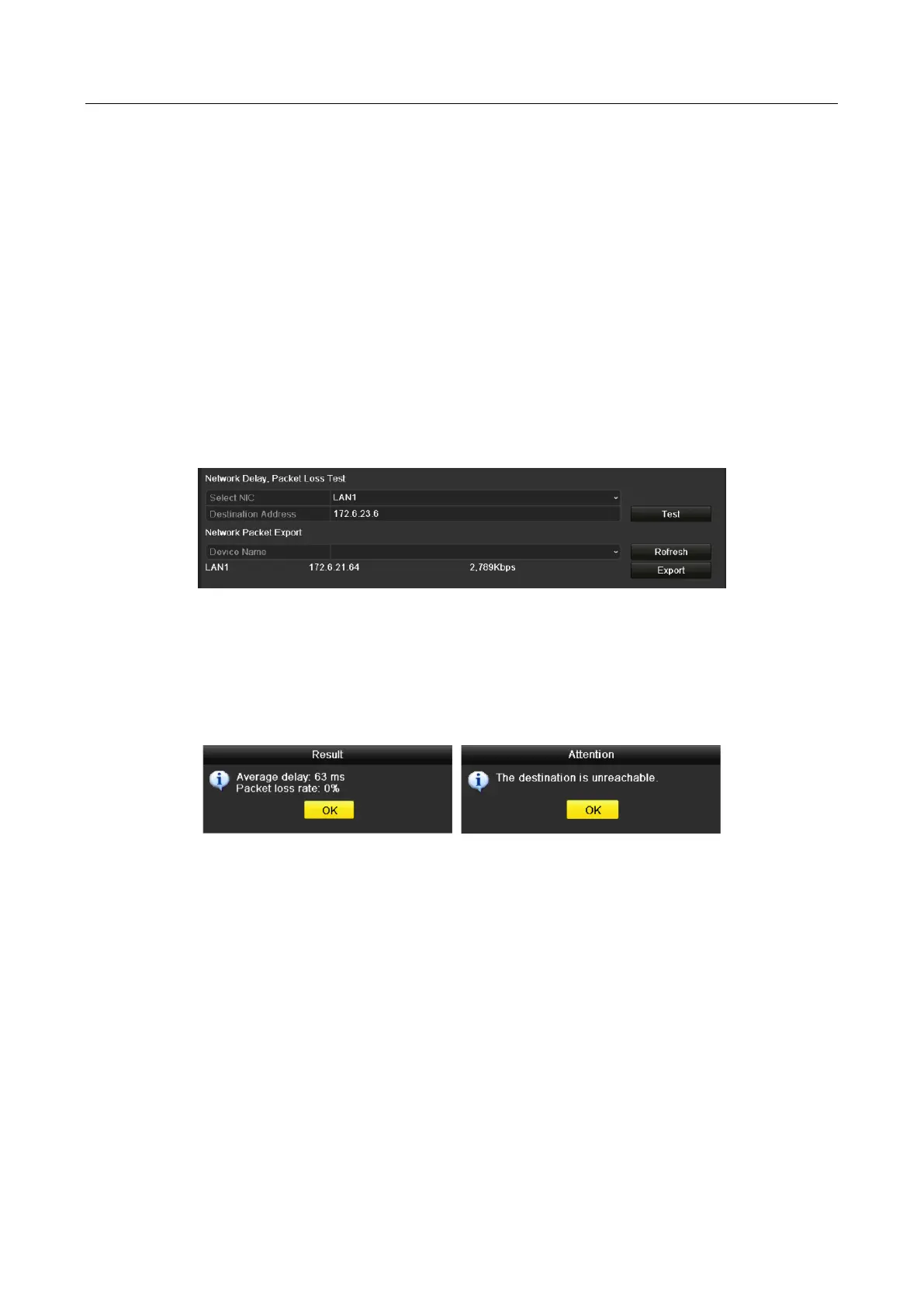

Figure 12-26 Network Detection Interface

Step 3 Enter the destination address in the text field of Destination Address.

Step 4 Click Test button to start testing network delay and packet loss. The testing result pops up

on the window. If the testing is failed, the error message box will pop up as well. Refer to

Figure 12-27.

Figure 12-27 Testing Result of Network Delay and Packet Loss

12.4.2 Exporting Network Packet

Purpose:

By connecting the NVR to network, the captured network data packet can be exported to USB-flash

disk, SATA/eSATA, DVD-R/W and other local backup devices.

Step 1 Enter the Network Traffic interface.

Menu >Maintenance>Net Detect

Step 2 Click the Network Detection tab to enter the Network Detection interface.

Step 3 Select the backup device from the dropdown list of Device Name, as shown in Figure 12-28.
