G4 Mobile Recorder• Installation Guide and Platform Settings
12
Tighten the screws on both sides of the device.
Screw Hole
Fix Camera Lens
Steps:

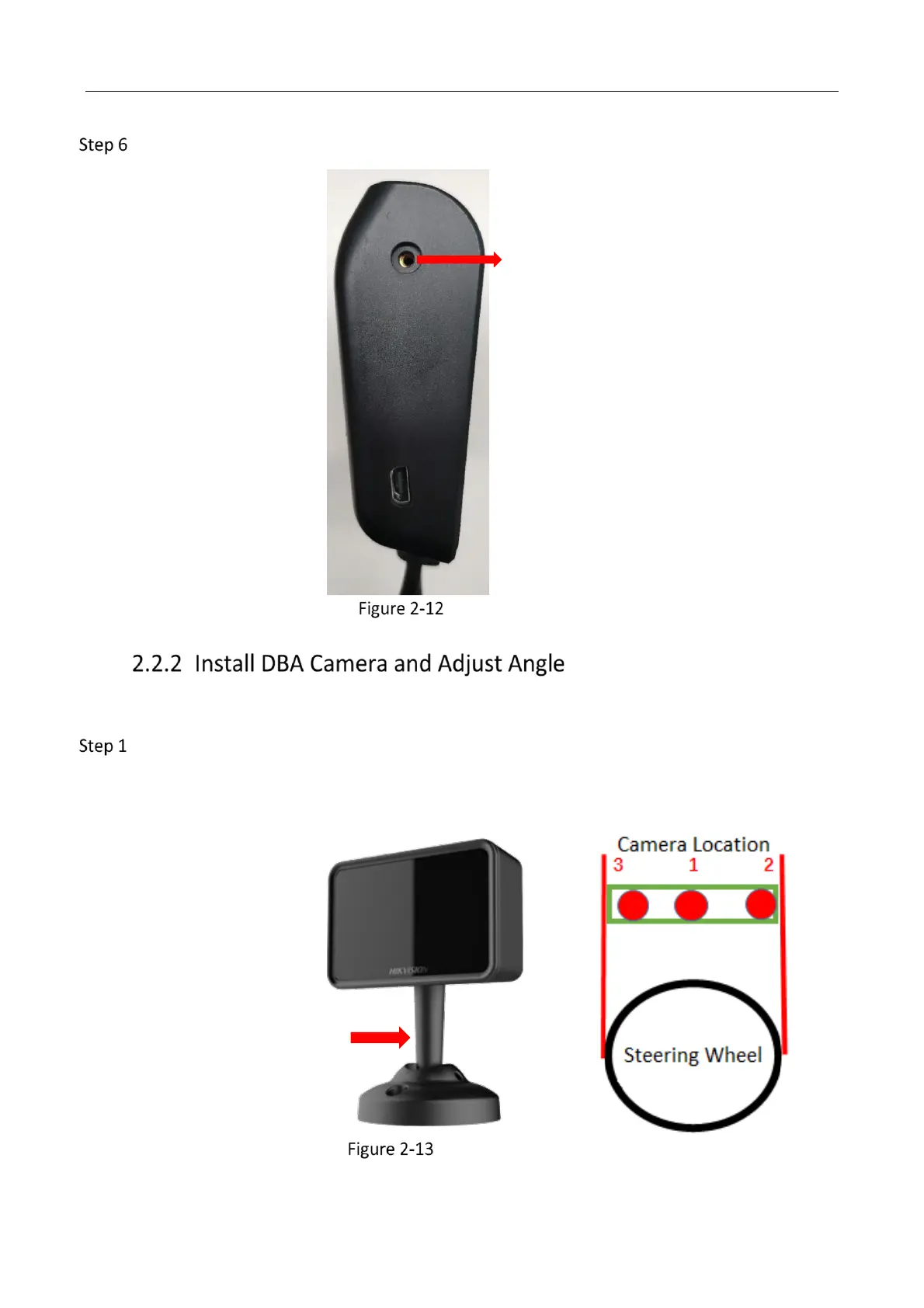

Install the DBA camera on the console in front of the steering wheel.
Location 1 is recommended. You can also install the camera on Location 2 or 3 according to
the actual vehicle. The red line illustrates the recommended installation range.
Rotate the bracket to adjust
the surveillance angle.
Install DBA Camera
