User Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
You can generate the PIN code on the camera side. And the expired time for the PIN
code is 120 seconds.
1. Click
2. Enter the code to the router, in the example, enter 48167581 to the router.
4.3 IP Property Settings for Wireless Network
Connection
The default IP address of wireless network interface controller is 192.168.1.64. When
you connect the wireless network you can change the default IP.
Steps:
1. Enter the TCP/IP configuration interface.
Configuration> Advanced Configuration> Network> TCP/IP
or
Configuration> Basic Configuration> Network> TCP/IP

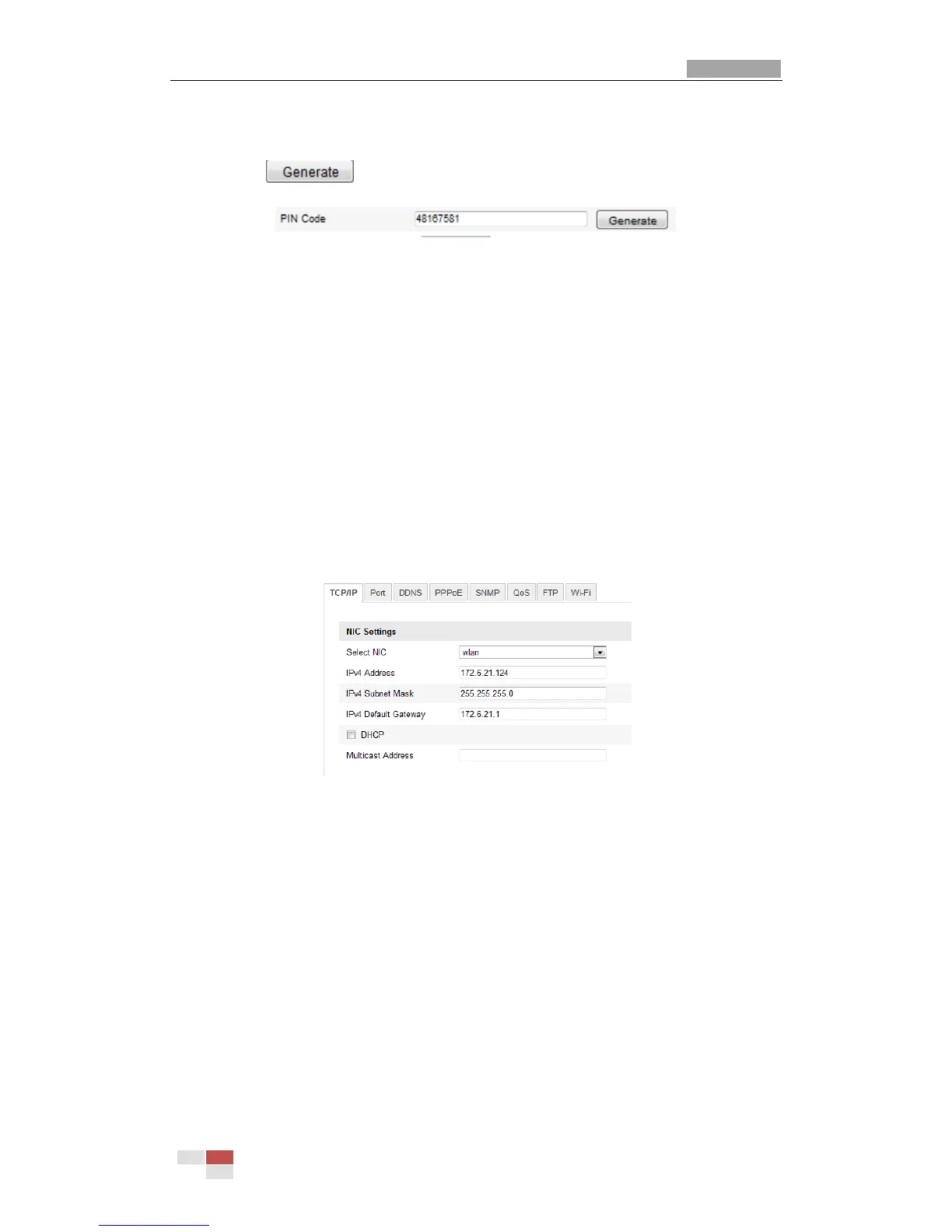

Figure 4-9 TCP/IP Settings
2. Select the NIC as wlan.
3. Customize the IPv4 address, the IPv4 Subnet Mask and the Default
Gateway.
The setting procedure is the same with that of LAN.
If you want to be assigned the IP address you can check the checkbox to enable the
DHCP.
