User Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
62
6.6.6 Email Sending Triggered by Alarm
Purpose:
The system can be configured to send an Email notification to all designated
receivers if an alarm event is detected, e.g., motion detection event, video loss,
tamper-proof, etc.
Before you start:
Please configure the DNS Server settings under Basic Configuration > Network >
TCP/IP or Advanced Configuration > Network > TCP/IP before using the Email
function.
Steps:
1. Enter the TCP/IP Settings (Configuration > Basic Configuration > Network > TCP/IP or
Configuration > Advanced Configuration > Network > TCP/IP) to set the IPv4
Address, IPv4 Subnet Mask, IPv4 Default Gateway and the Preferred DNS Server.
Note: Please refer to Section 6.3.1 Configuring TCP/IP Settings for detailed
information.
2. Enter the Email Settings interface:
Configuration > Advanced Configuration > Events > Email

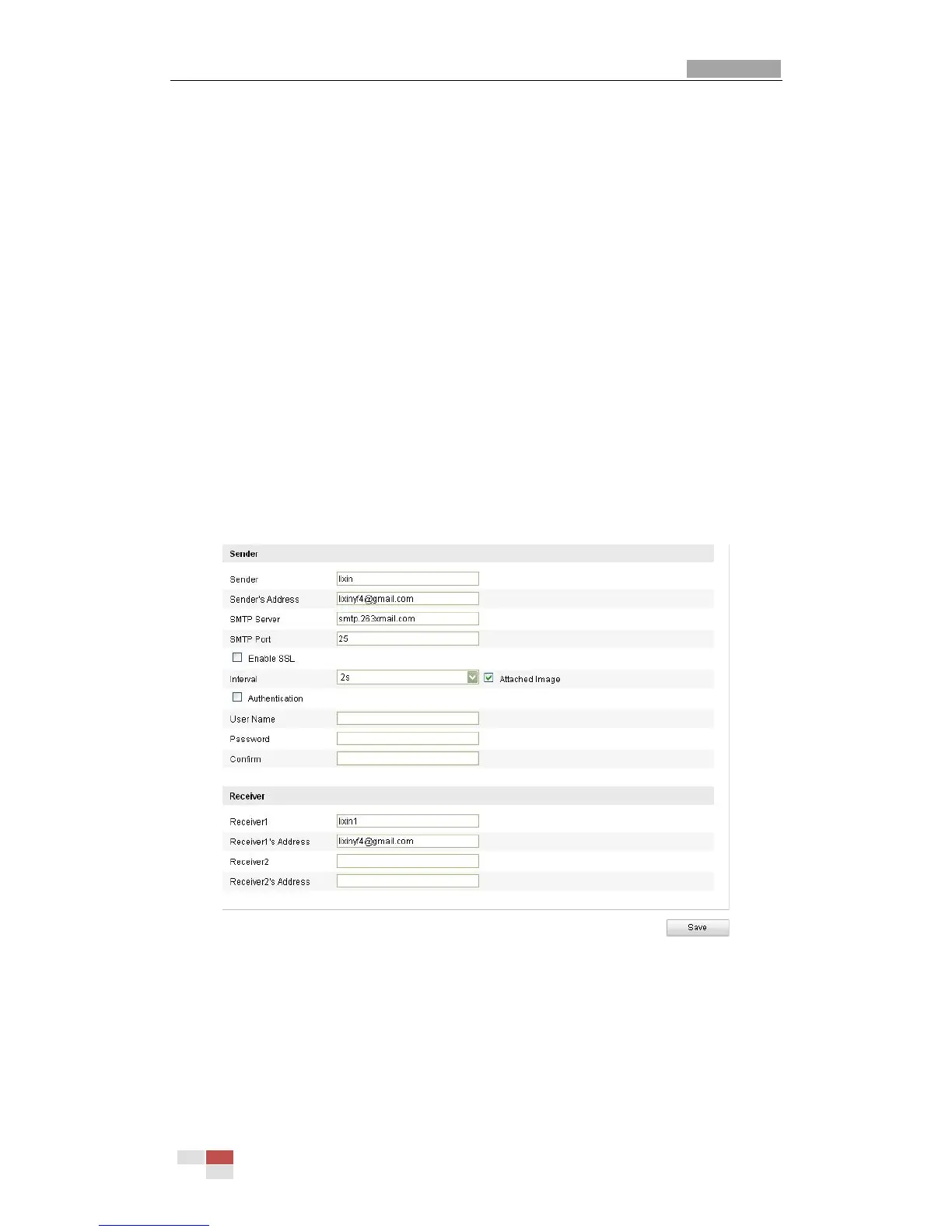

Figure 6-33 Email Settings
3. Configure the following settings:
Sender: The name of the email sender.
Senders Address: The email address of the sender.
SMTP Server: The SMTP Server IP address or host name (e.g.,
smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25 (not secured).
www.cctvireland.ie

Table of Contents

Other manuals for HIKVISION DS-2CD2012-I

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2CD2012-I and is the answer not in the manual?

HIKVISION DS-2CD2012-I Specifications

General IconGeneral
TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Form factorBullet
Product colorWhite
International Protection (IP) codeIP66
Total megapixels1.3 MP
Maximum resolution1280 x 960 pixels
Supported video modes-
Video formats supportedH.264, M-JPEG
Supported graphics resolutions1280 x 720 (HD 720), 1280 x 960, 640 x 480 (VGA), 704 x 576
Camera shutter speed1/25(1/30) - 1/100000 s
Minimum illumination0.01 lx
Field of view (FOV) angle73.1 °
Sensor typeCMOS
Optical sensor size1/3 \
Lens diameter4 mm
Focus adjustment2.0
Password protection typeUser
LED typeIR
Night vision distance30 m
Wi-FiNo
Cabling technology10/100Base-T(X)
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95 %
DC output voltage+12V
Power source typePoE
Power consumption (max)5 W
InterfaceRJ-45
Ethernet LAN (RJ-45) ports1
Weight and Dimensions IconWeight and Dimensions
Width139.28 mm
Height76.9 mm
Weight500 g
Diameter60.4 mm
