User Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
36

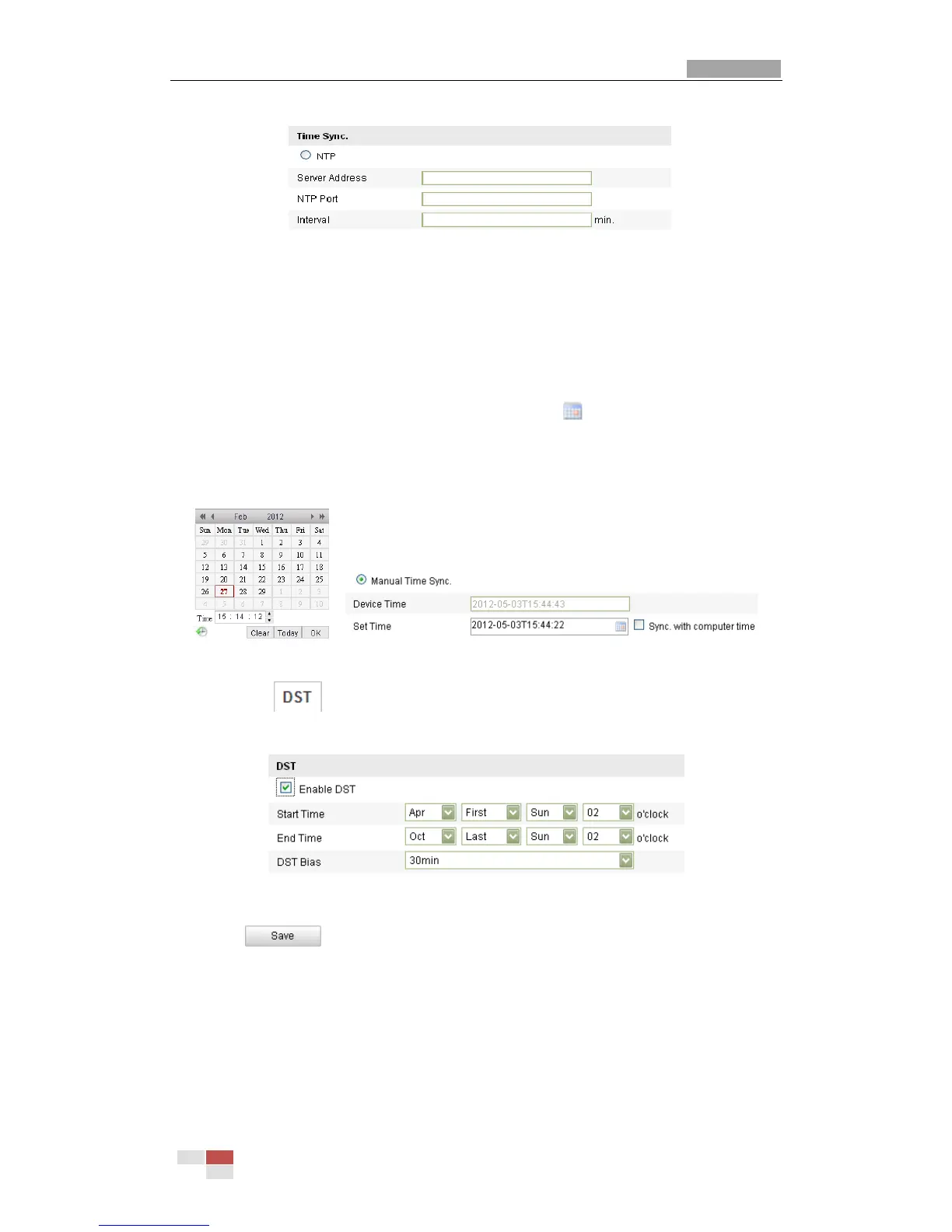

Figure 6-3 Time Sync by NTP Server
Note: If the camera is connected to a public network, you should use a NTP server
that has a time synchronization function, such as the server at the National Time
Center (IP Address: 210.72.145.44). If the camera is set in a customized network, NTP
software can be used to establish a NTP server for time synchronization.
Synchronizing Time Synchronization Manually
Enable the Manual Time Sync function and then click to set the system time
from the pop-up calendar.
Note: You can also check the Sync with computer time checkbox to synchronize the
time of the camera with that of your computer.
Figure 6-4 Time Sync Manually
Click the tab page to enable the DST function and Set the date of the
DST period.
Figure 6-5 DST Settings
2. Click to save the settings.
www.cctvireland.ie

Table of Contents

Other manuals for HIKVISION DS-2CD2012-I

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2CD2012-I and is the answer not in the manual?

HIKVISION DS-2CD2012-I Specifications

General IconGeneral
TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Form factorBullet
Product colorWhite
International Protection (IP) codeIP66
Total megapixels1.3 MP
Maximum resolution1280 x 960 pixels
Supported video modes-
Video formats supportedH.264, M-JPEG
Supported graphics resolutions1280 x 720 (HD 720), 1280 x 960, 640 x 480 (VGA), 704 x 576
Camera shutter speed1/25(1/30) - 1/100000 s
Minimum illumination0.01 lx
Field of view (FOV) angle73.1 °
Sensor typeCMOS
Optical sensor size1/3 \
Lens diameter4 mm
Focus adjustment2.0
Password protection typeUser
LED typeIR
Night vision distance30 m
Wi-FiNo
Cabling technology10/100Base-T(X)
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95 %
DC output voltage+12V
Power source typePoE
Power consumption (max)5 W
InterfaceRJ-45
Ethernet LAN (RJ-45) ports1
Weight and Dimensions IconWeight and Dimensions
Width139.28 mm
Height76.9 mm
Weight500 g
Diameter60.4 mm
