HIKVISION DS-2CD2012-I User Manual

User Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
79
process.

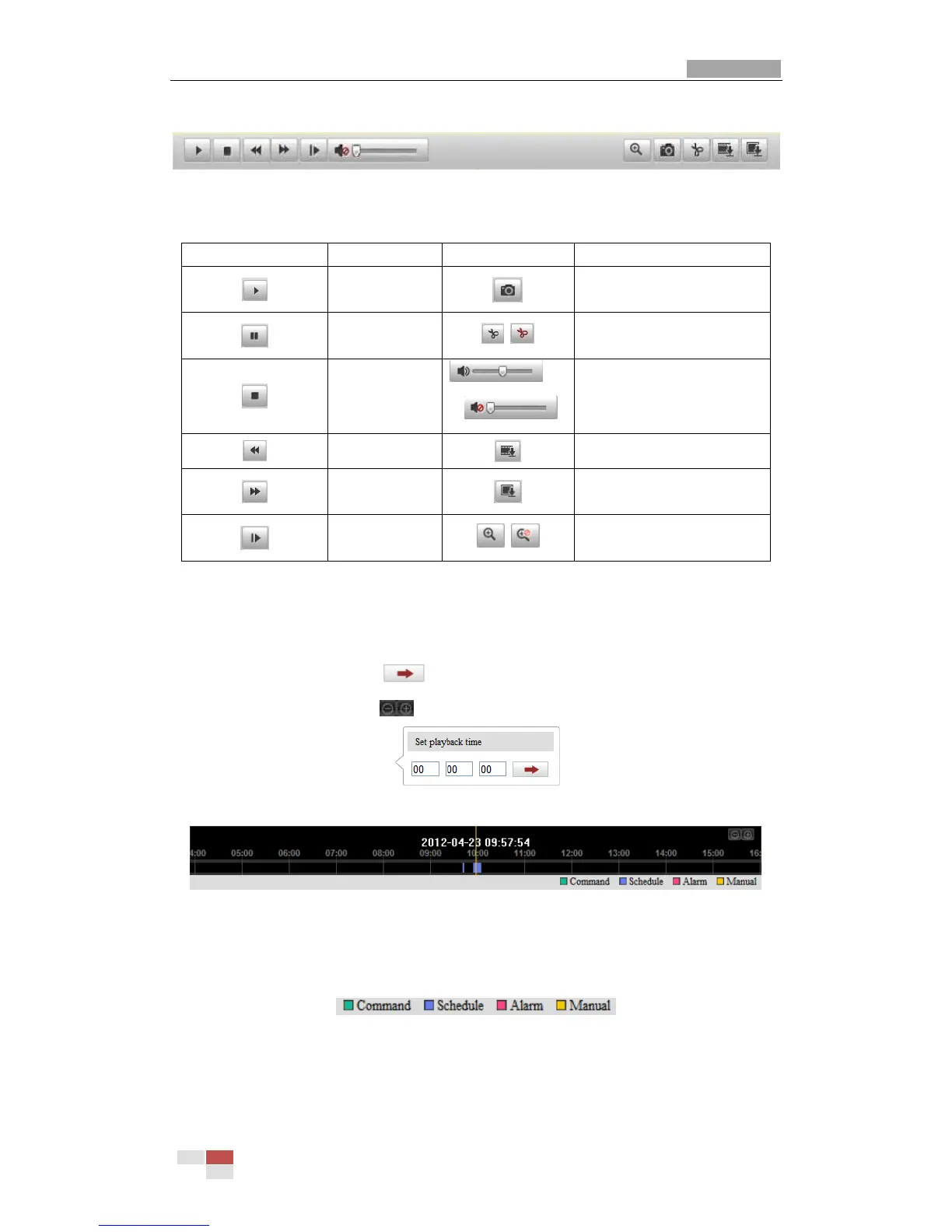

Figure 8-3 Playback Toolbar
Table 8-1 Description of the buttons
Button
Operation
Button
Operation
Play
Capture a picture
Pause
/
Start/Stop clipping video
files
Stop
/
Audio on and adjust
volume/Mute
Speed down
Download video files
Speed up
Download captured
pictures
Playback by
frame
/
Enable/Disable digital
zoom
Note: You can choose the file paths locally for downloaded playback video files and
pictures in Local Configuration interface. Please refer to Section 5.1 for details.
Drag the progress bar with the mouse to locate the exact playback point. You can
also input the time and click to locate the playback point in the Set playback
time field. You can also click to zoom out/in the progress bar.
Figure 8-4 Set Playback Time
Figure 8-5 Progress Bar
The different colors of the video on the progress bar stand for the different video
types.
Figure 8-6 Video Types
www.cctvireland.ie

HIKVISION DS-2CD2012-I Specifications

General

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Product color	White
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 960, 640 x 480 (VGA), 704 x 576
Camera shutter speed	1/25(1/30) - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Lens diameter	4 mm
Focus adjustment	2.0
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5 W
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Width	139.28 mm
Height	76.9 mm
Weight	500 g
Diameter	60.4 mm
