HIKVISION DS-2CD2112-I Installation Manual

Installation Manual of Network Camera
105
1
2
3
4
5
ALARM
RS232
RXD TXD GND IN1 1B 1A
LAN(PoE)
DC 12V
RESET
SD
VIN1
AUDIO
OUT
AUDIO
IN
9
10
11
12
13
14
15
16
17
18

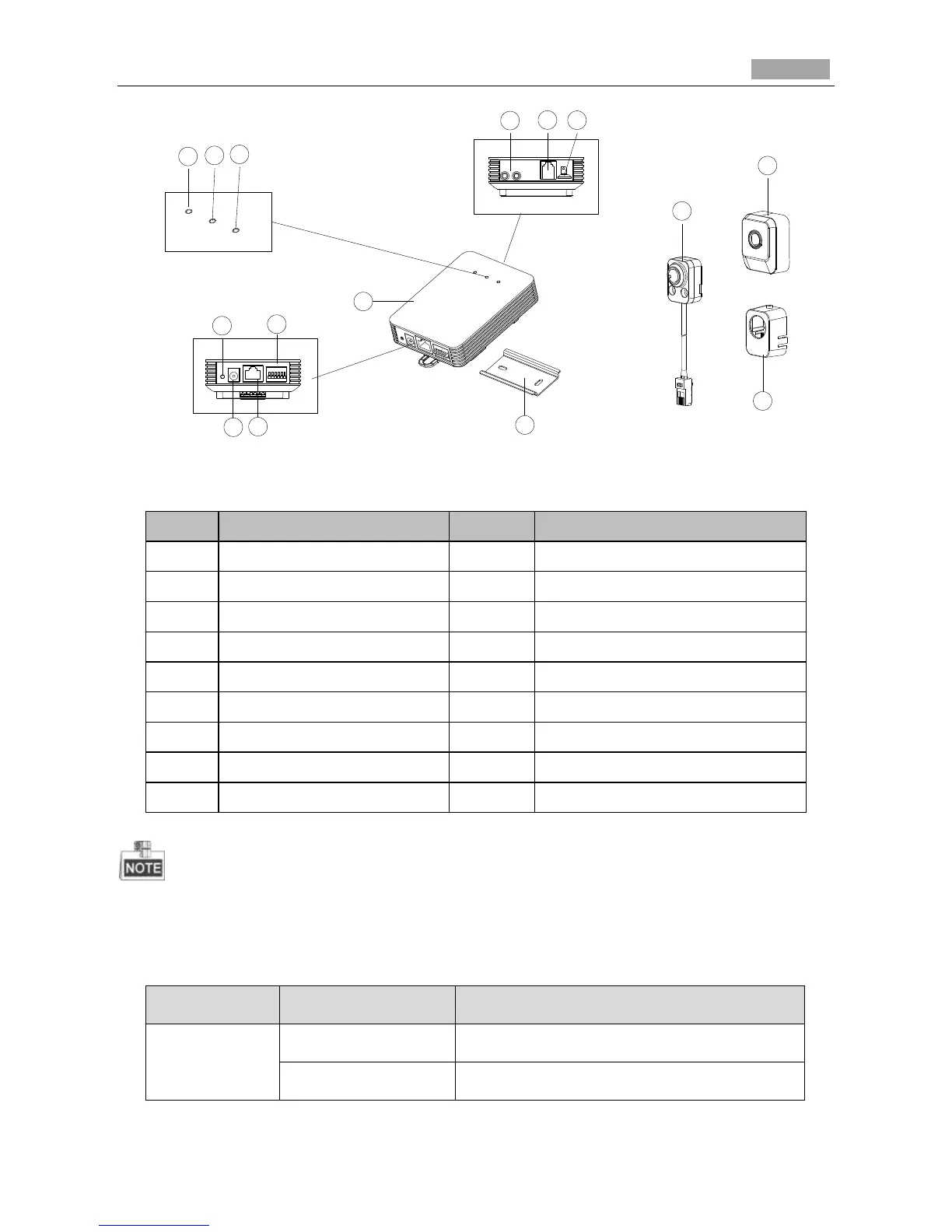

Figure 4-42 The Overview of Covert Camera with Block-shaped Sensor Unit
Table 4-7 Description of the Camera
No.
Description
No.
Description
1
Main Unit
10
STATUS Indicator LED
2
Mounting Rail
11
LINK Indicator LED
3
Block-Shaped Sensor Unit
12
Audio Interface
4
Cover
13
RJ-12 Interface
5
Straight Mounting Bracket
14
Micro SD Card Slot
6
Cylindrical Sensor Unit
15
RESET Button
7
RJ-12 Cable
16
Power Interface
8
Round Rail Mounting Bracket
17
PoE & Network
9
POWER Indicator LED
18
RS-232 &Alarm Interface
Press RESET button about 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.
Table 4-8 LED Indicator
LED
Color& Status
Indicator
POWER
Solid red
On normal operation
Unlit
Power Off
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2112-I Specifications

General

Type	IP security camera
PTZ control	-
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	704 x 576, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Pan range	0 - 355 °
Tilt angle range	0 - 65 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	12 mm
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	7 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Height	82 mm
Weight	500 g
Diameter	111 mm
