Installation Manual of Network Camera
122

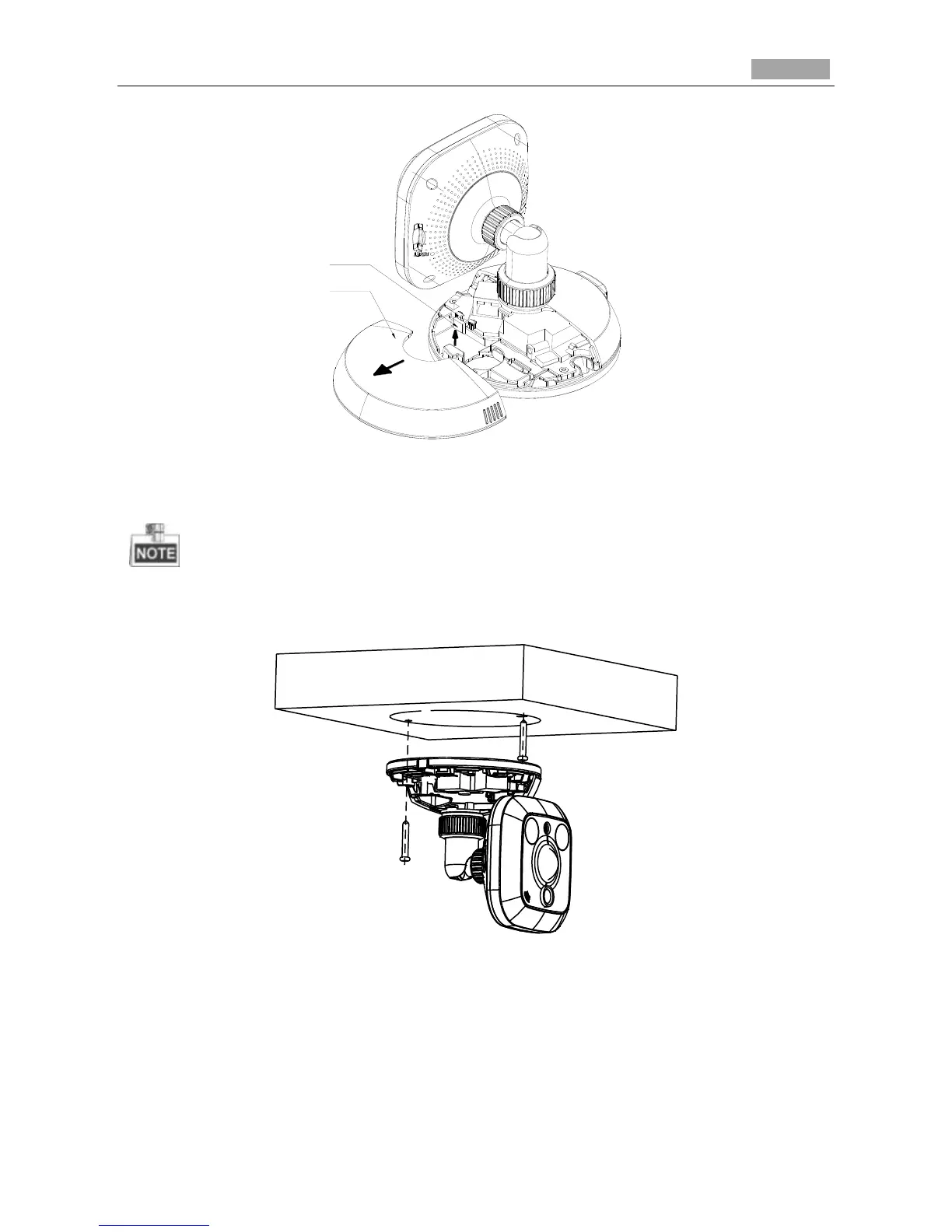

Figure 6-7 Remove the Cover and Fixator
2. Drill the screw holes and the cable hole according to the supplied drill template.
Drill no cable hole if you intend to route the cables through the side outlet of the camera.
3. Fix the camera to the ceiling with the supplied expansion screws.
Figure 6-8 Fix the Camera
4. Connect the coresponding power cable and the network cable through the drilled cable hole. Or
pull the cable through the side outlet of the camera.
5. Reinstall the right cover and fixator.
Fixator
Right Cover
