HIKVISION DS-2CD2112-I Quick Operation Guide

Quick Operation Guide of Network Camera
29
2) Edit the modifiable network parameters, e.g. IP address and port number.
3) Enter the password of the admin account of the device in the Password field and click
to save the changes.

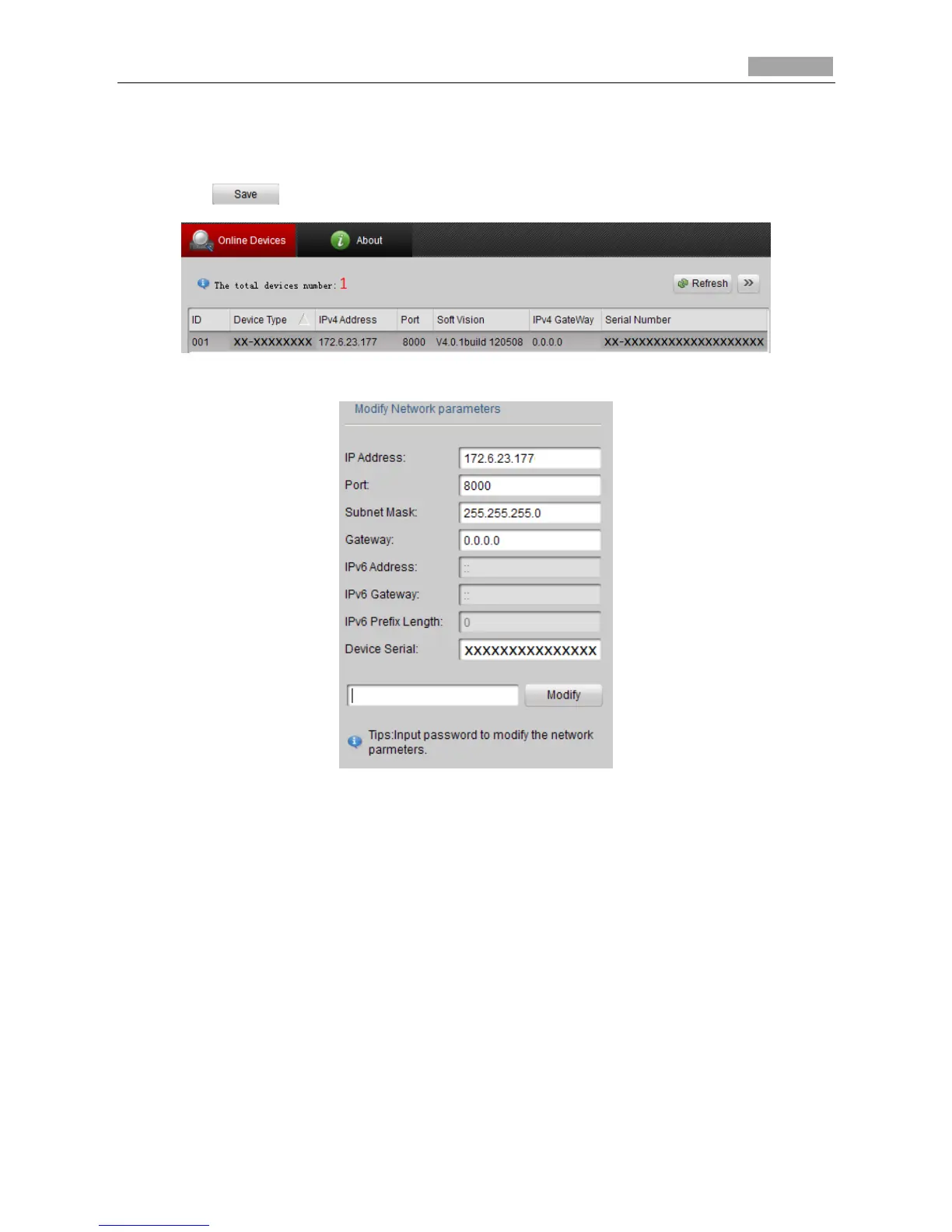

Figure 2-3 Select a Device
Figure 2-4 Modify Network Parameters
3. You can enter the IP address of network camera in the address field of the web browser to view
the live video.
Note:
 The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and
password is “12345”.
 For accessing the network camera from different subnets, please set the gateway for the
network camera after you log in.

HIKVISION DS-2CD2112-I Specifications

General

Type	IP security camera
PTZ control	-
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	704 x 576, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Pan range	0 - 355 °
Tilt angle range	0 - 65 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	12 mm
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	7 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Height	82 mm
Weight	500 g
Diameter	111 mm
