HIKVISION DS-2CD2432F-IW - Appearance Description

Network Cube Camera·Quick Start Guide
10
10
1 Appearance Description

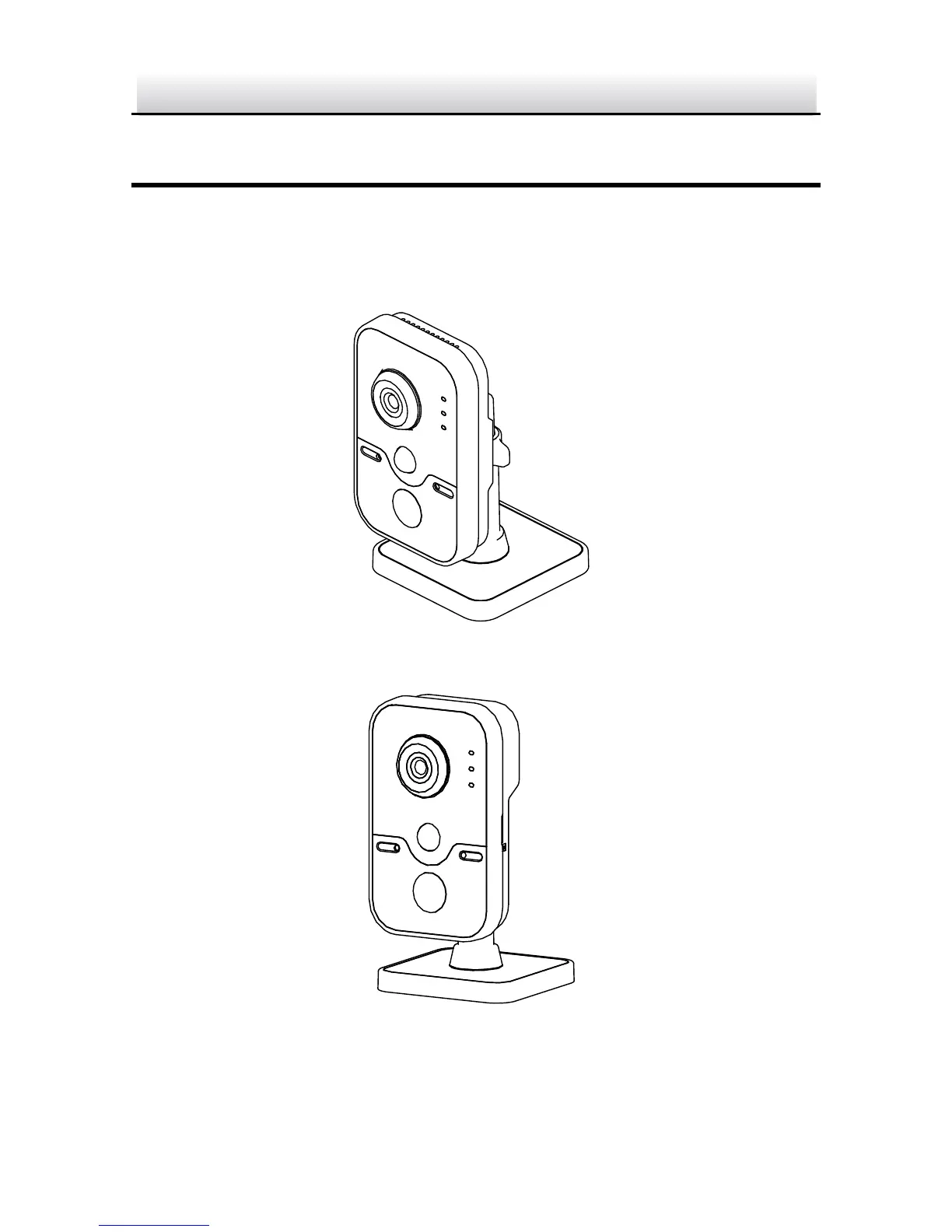

There are two types of appearances for 24 series camera. Please
refer to the figure below. And one appearance will be taken as an
example in the chapter below.
Type I Appearance Figure 1-1
Type II Appearance Figure 1-2
