HIKVISION DS-2CD883F-E User Manual

Quick Operation Guide of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
9

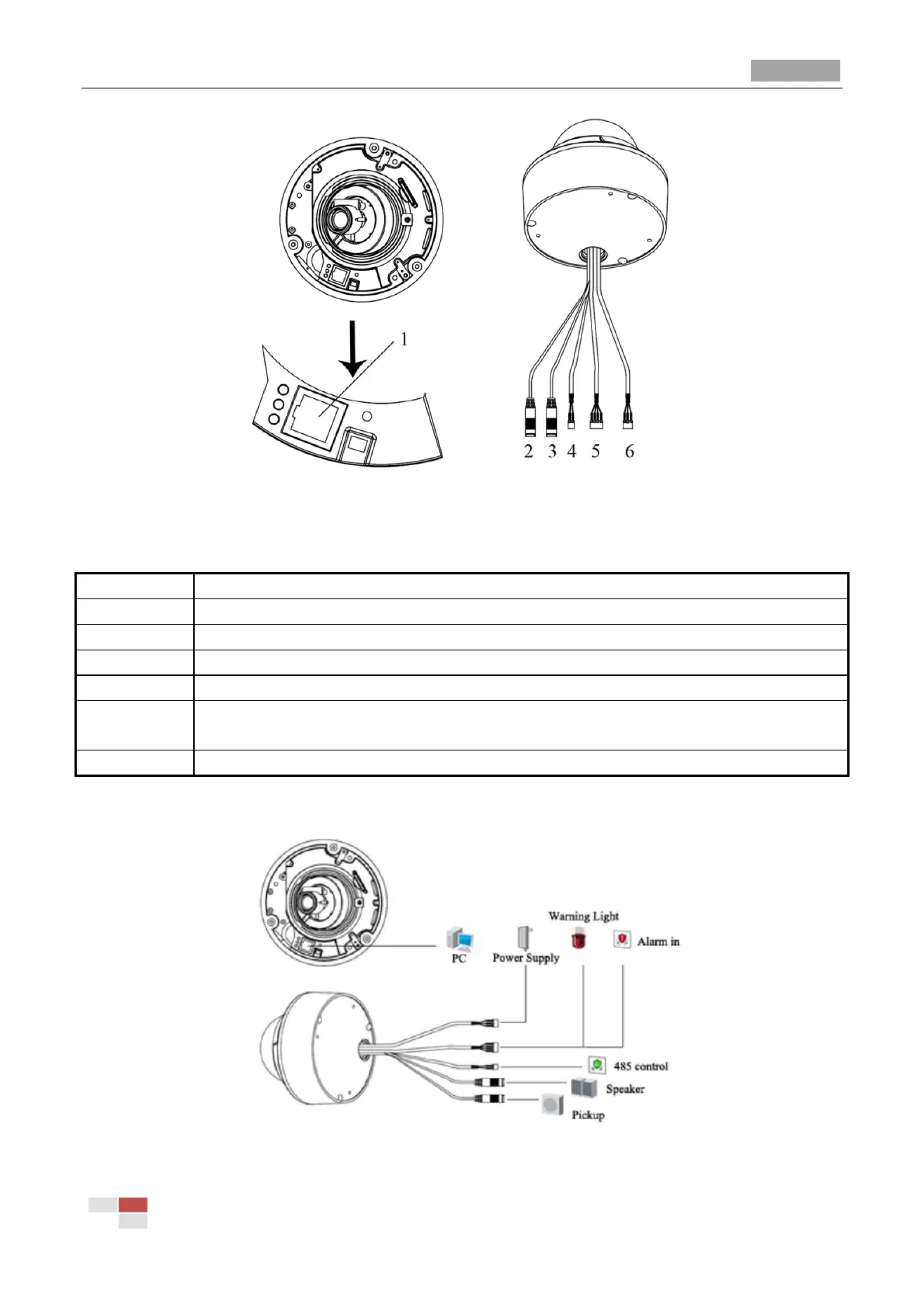

Figure 1-13 Overview
Table 1-8 Description
No.
Description
1
10M/100M self-adaptive Ethernet interface
2
AUDIO IN: Audio input interface
3
AUDIO OUT: Audio output interface
4
D+, D-: RS-485 interface
5
IN, G: Alarm input interface
1A, 1B: Alarm output interface
6
Power supply interface
Camera wiring Diagram:
Figure 1-14 Wiring Diagram
