HIKVISION DS-2CD883F-E

Quick Operation Guide of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
15

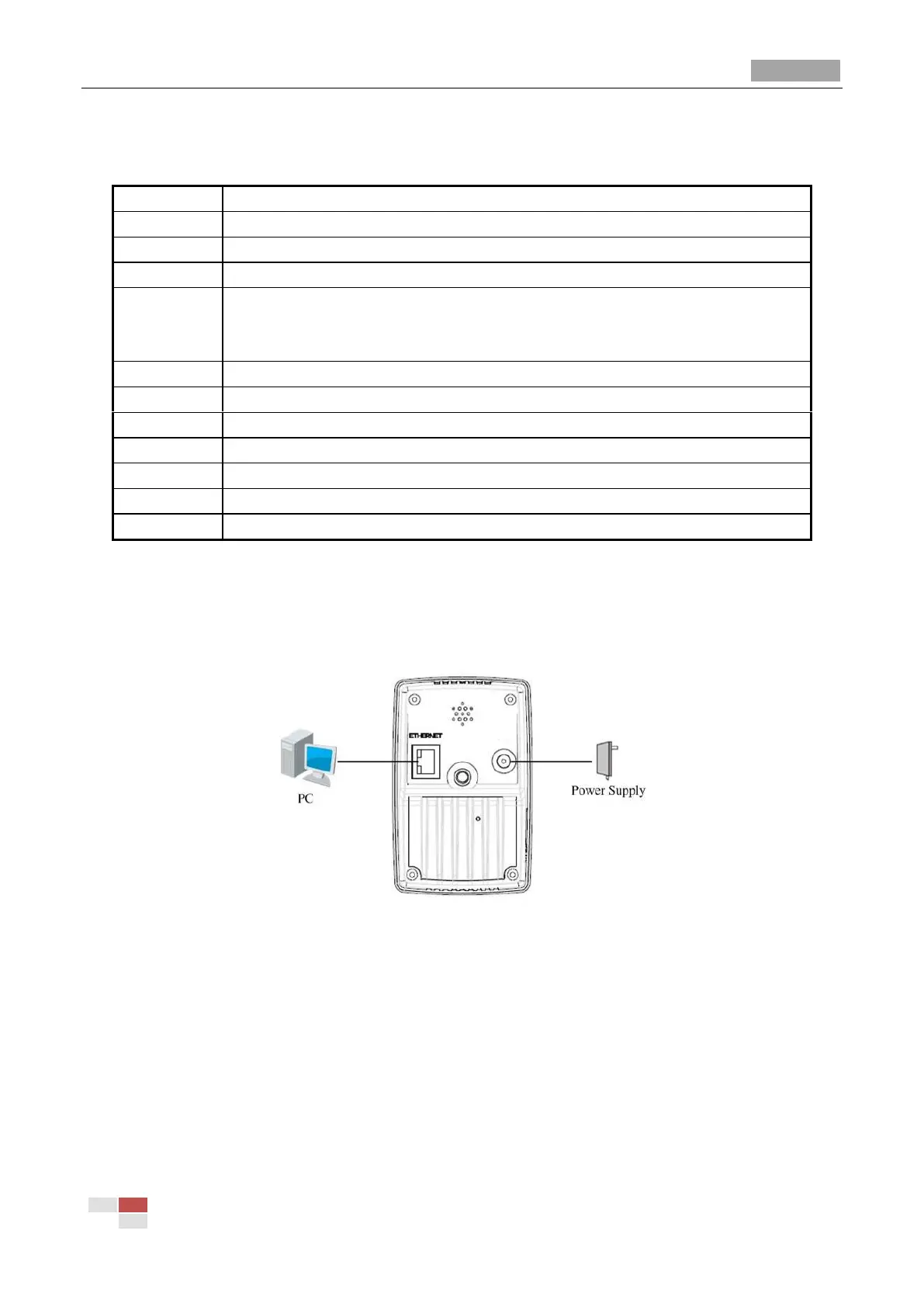

Table 1-12 Description
No.
Description
1
Microphone
2
Infrared light (Optional)
3
Micro SD card slot
4
LINK: Network status LED indicator.
LED indicator is solid yellow when network connection is functioning
properly.
5
Power LED indicator, It is solid red when power is applied to the unit.
6
Lens
7
ETHERNET: 10M / 100M self-adaptive Ethernet interface
8
RESET: Reset button
9
Speaker
10
Power supply interface
11
Screw hole, used to fix the camera to the bracket
Note:
After the powering on of the camera, pressing and holding the RESET button for about 10 seconds
can reset all the parameters to the default settings.
Camera wiring Diagram:
Figure 1-23 Wiring Diagram
1.4.2 Cube Camera II
Camera description:
