1.5 Appearance Description of Mini Dome Camera
Camera description:

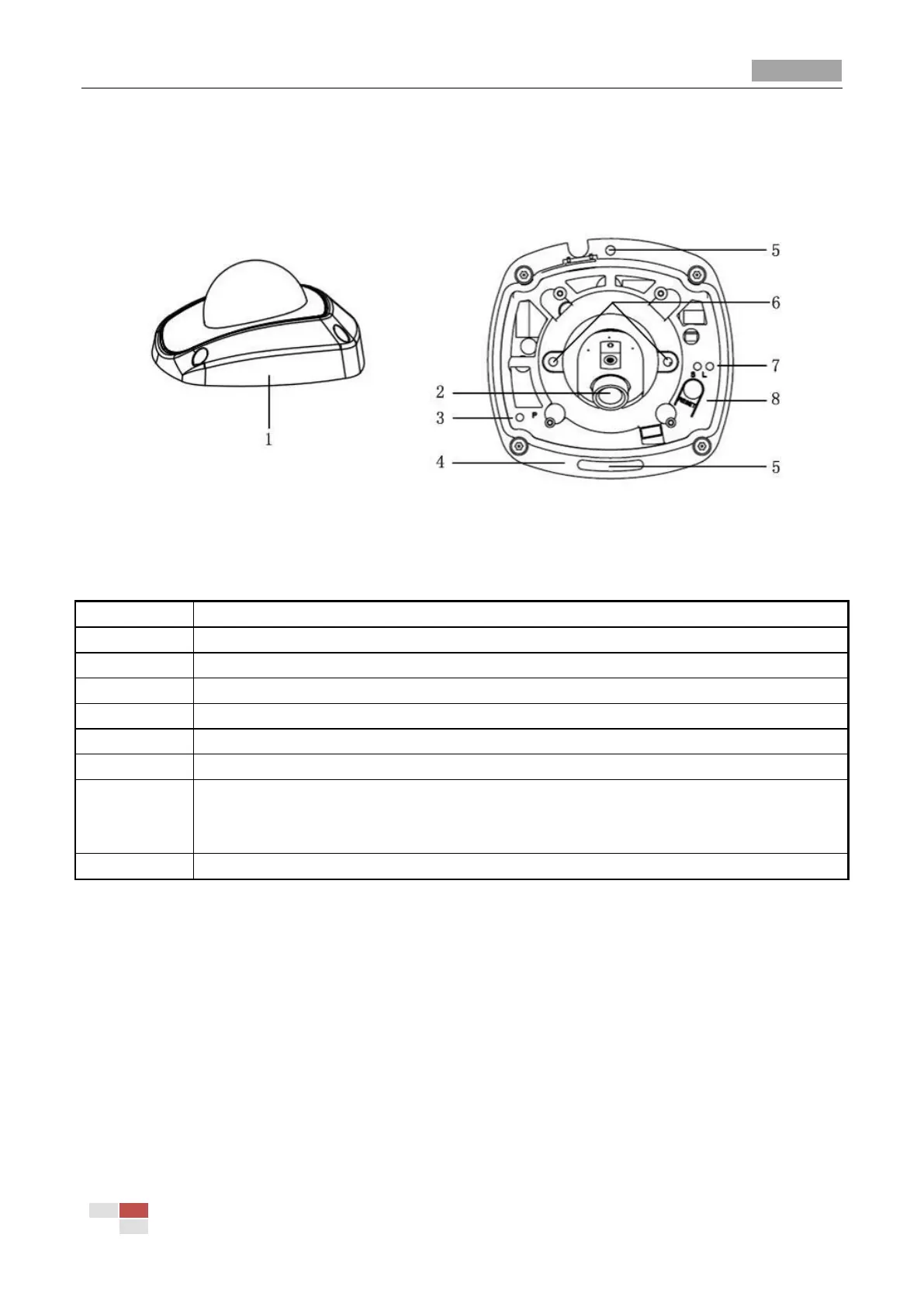

Figure 1-26 Overview
Table 1-14 Description
No.
Description
1
Cover
2
Lens
3
P: Power LED indicator, It is solid red when power is applied to the unit.
4
Base plate
5
Set screw hole
6
Set screw of lens
7
S & L: Network status LED indicator.
When the network is connected, the “S” LED is solid yellow, while the “L” LED
flashes orange.
8
RESET: Reset button.
Note:
After the powering on of the camera, pressing and holding the RESET button for about 10 seconds
can reset all the parameters to the default settings.
Camera wiring Diagram:
