1.2.3 Dome Camera III
Camera description:

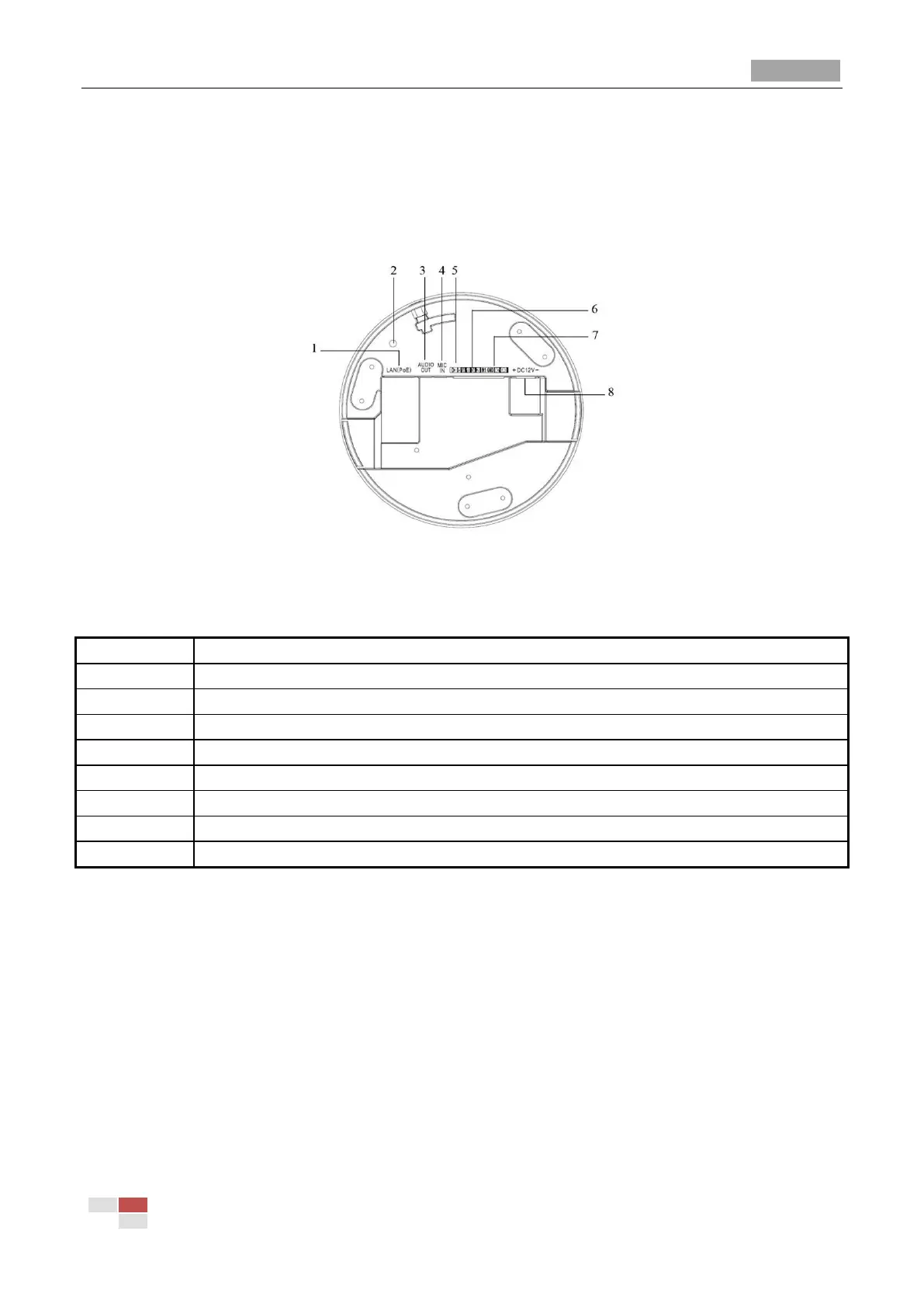

Figure 1-15 Overview
Table 1-9 Description
No.
Description
1
10M/100M self-adaptive Ethernet interface
2
INITIAL SET: Reset button
3
AUDIO OUT: Audio output interface
4
MIC IN: Audio input interface
5
D+, D-: RS-485 interface
6
1A, 1B, 2A, 2B: Alarm output interface
7
IN1, GND, IN2, GND: Alarm input interface
8
Power supply interface
Note: After the powering on of the camera, pressing and holding the INITIAL SET button for about
10 seconds can reset all the parameters to the default settings.
Camera wiring Diagram:
