1. Paste the drill template (supplied) to the place where
you want to fix the camera.
2. Drill the screw holes according to the drill template
and the cable hole (optional) in the ceiling.

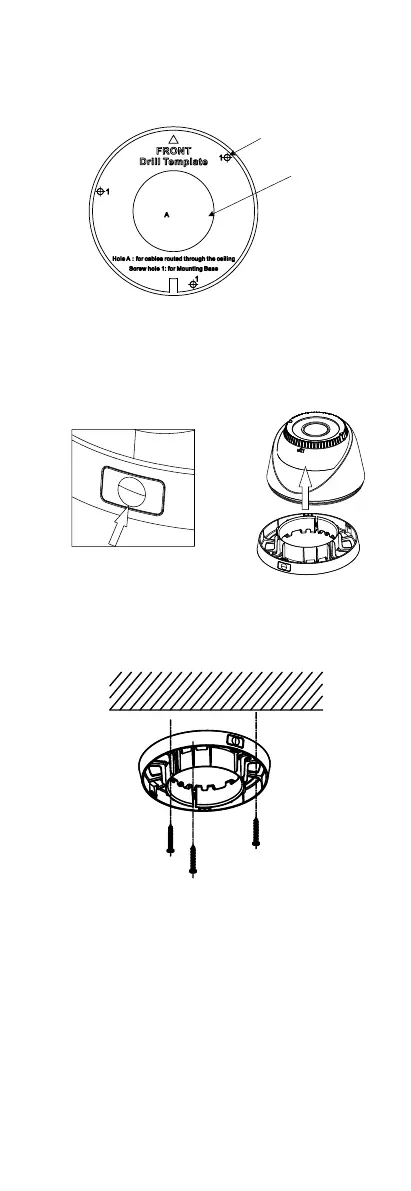

Figure 2. 4 Drill Template
Note:
Cable hole is required when adopting ceiling outlet to
route the cable.
3. Press the button to take out the main body.
Figure 2. 5 Disassemble the Camera
4. Fix the mounting base on the ceiling with supplied
screws.
Figure 2. 6 Fix the Mounting Base on the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall, expansion bolts are required to fix
the camera. For wooden wall, self-tapping screws are
required.
5. Route the cables through the cable hole (optional), or
the side opening.
6. Install the main body back to the mounting base.
To Next Page
