Note: The working voltage of Z interface is +3V ~ +12V or -3V ~
-12V. The working voltage of F interface is +3V to +12V or - 3V to
-12V.
The maximum drive voltage and current of the alarm output
interface (with the Open Collector inside) is 24VDC and 45mA.
Zoom/Focus Remote Control
Purpose:

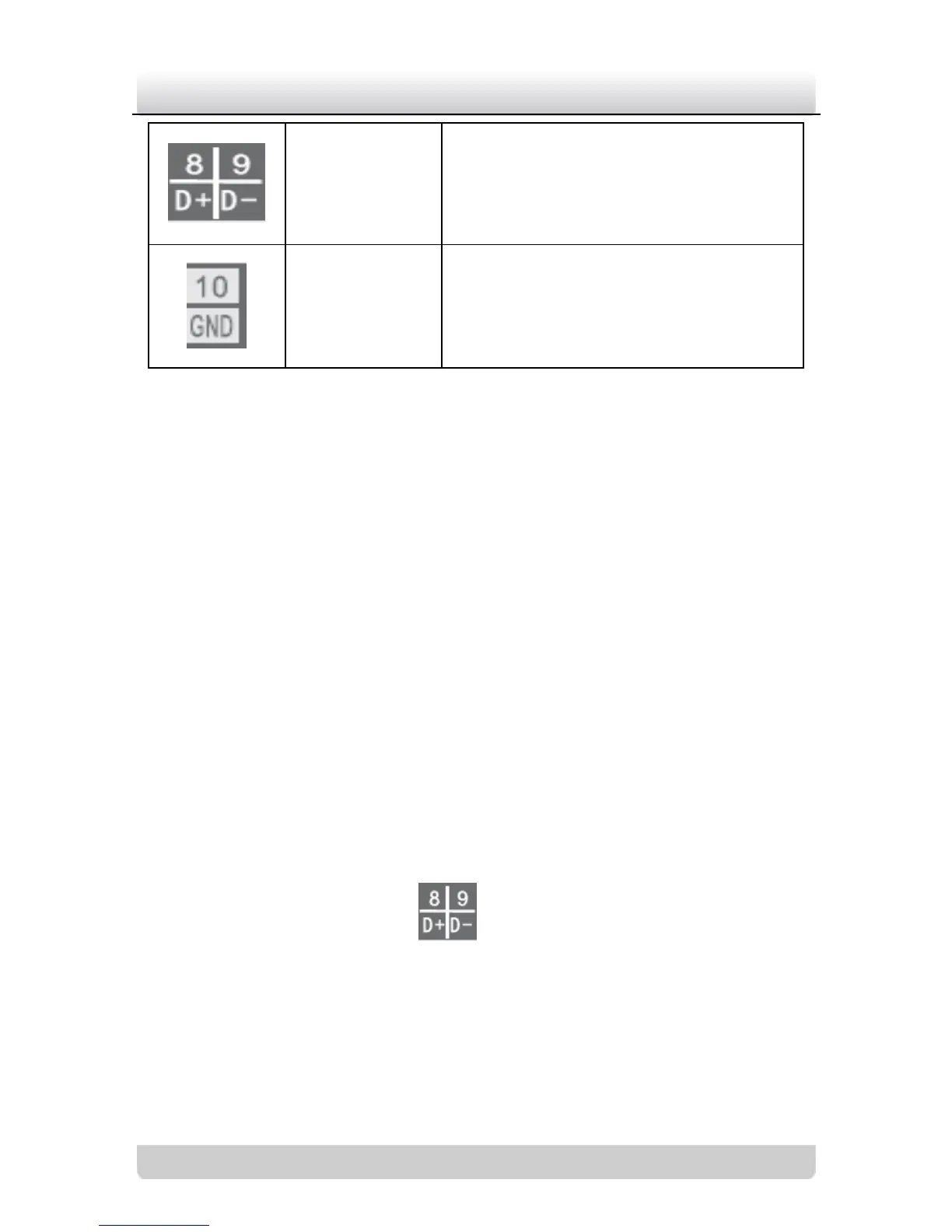

You can route the cable from the RS-485 signal output connector
of your control device to the RS-485 signal input connector of the
camera. Then use the control device to adjust the lens remotely.
The RS-485 connector supports PELCO-D protocol.
The default setting requirements are:
The baud rate is 2400bit/s.
The protocol is PELCO-D.
